Everything in detail

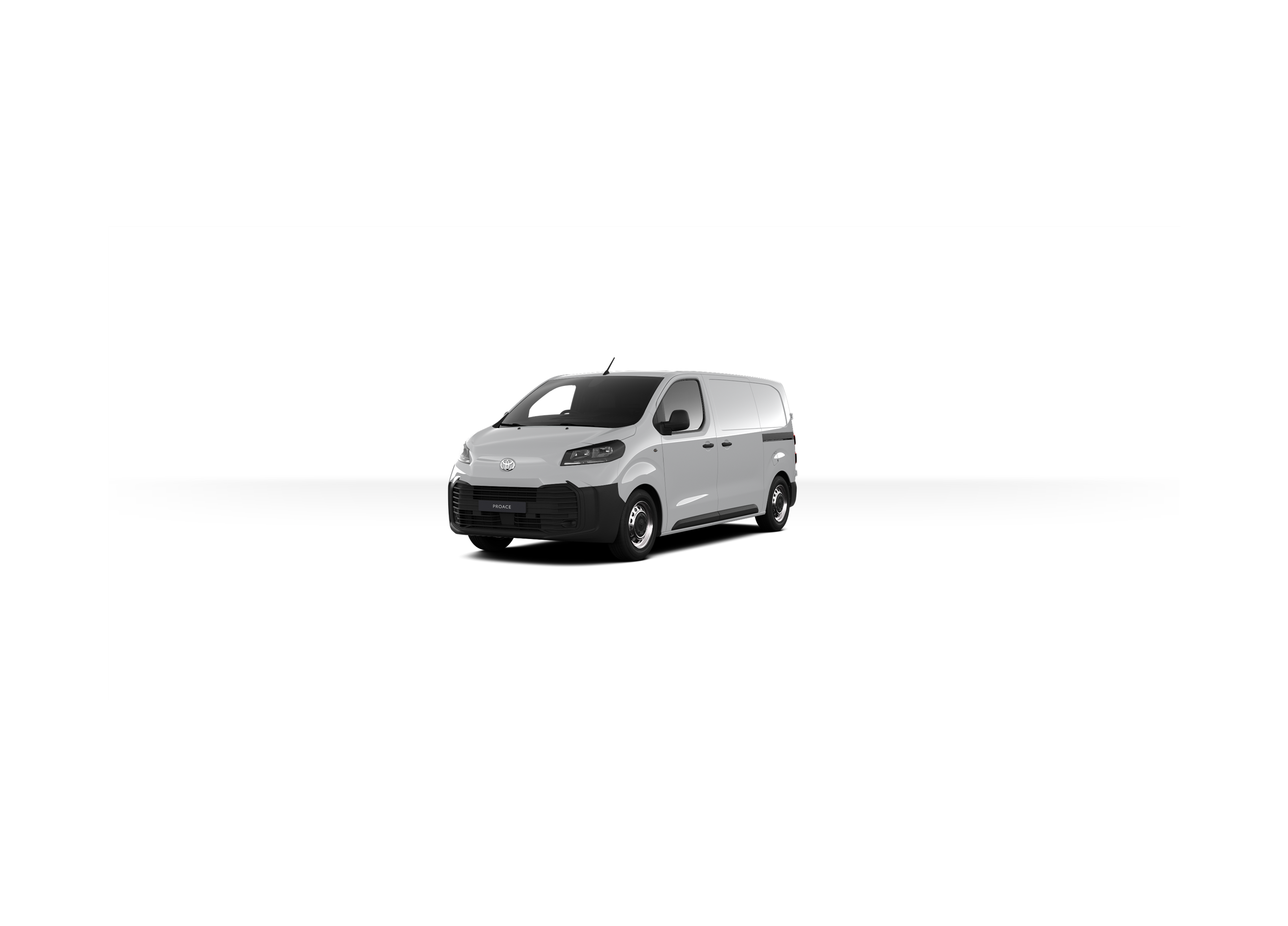

Proace Active specifications

View specifications

Space and Room

High-quality fabrics and soft ornamentation add pleasingly human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.

Exterior dimensions

Exterior Length (mm): 4981 mm
Exterior Width (mm): 1924 mm
Exterior Height (mm): 1955 mm
Front Tread (mm): 1630 mm
Rear Tread (mm): 1618 mm
Overhang Front (mm): 902 mm
Overhang Rear (mm): 803 mm
Wheelbase (mm): 3275 mm

Interior dimensions

Number of Seats: 3 seats
Interior length (mm): 3161 mm
Interior Width (mm): 1515 mm

Luggage volume

Deck Length (mm): 2512 mm
Deck Width (mm): 1636 mm
Deck Height (mm): 1397 mm
Load Volume (m³): 5.8 m³

Engine

Drive with pure emotion, powered by a high-performance engine that helps you take on any journey with confidence.

Environmental Performance

CO2 Combined WLTP - Max (g/km): 193 g/km
CO2 Combined WLTP (g/km): 172 g/km
Fuel Economy: 38.6 - 42.8 mpg
Fuel Economy - Combined WLTP (l/100km): 6.6 l/100 km
Carbon Monoxide, CO (mg/km): 99.8 mg/km
Hydrocarbons, THC & Nitrogen Oxides, NOx (mg/km): 109.2 mg/km
Nitrogen Oxides, NOx (mg/km): 101.3 mg/km
Sound Level Drive By (dB(A)): 68.0 dB(A)
Euro Class: EURO 6 EB

Performance

Maximum Speed (mph): 99 mph
Acceleration 0-62 (mph): 16.0 seconds

Engine

Displacement (cc): 1499 cc
Bore x Stroke (mm x mm): 75 x 84.8 mm
Engine Layout & Number Of Cylinders: 4 cylinder, in line
Maximum Output (DIN hp): 120 DIN hp
Maximum Output (kW@rpm): 88 kW@rpm
Maximum Torque (Nm@rpm): 300/1750- Nm

Transmission

Transmission Type: Manual
Drive: FWD

Suspension

Suspension Front: Pseudo McPherson with anti-roll bar
Suspension Rear: Oblique Wishbone Trailing Arms

Brakes

Brakes Front: Ventilated Disc
Brakes Rear: Disc

Weights & Towing Capacity

Gross Train Weight - Total (kg): 4056 kg
Gross Vehicle Weight (kg): 2656 kg
Kerb Weight / Unladen Weight (kg): 1656-1854 kg
Payload (kg): 1000 kg
Maximum Trailer Weight - Braked (kg): 2000 kg
Maximum Trailer Weight - Unbraked (kg): 750 kg
Gross Vehicle Weight - Front (kg): 1500 kg
Gross Vehicle Weight - Rear (kg): 1500 kg

Safety

Find peace of mind as you drive with Toyota T-Mate. Whether you’re reversing into a parking space or approaching a busy junction, T-Mate makes sure you're always in safe hands wherever you go.

Anti-tamper alarm
Auto wipers
Automatic High Beam
Cruise Control
Driver Attention Alert
Glass-breaking alarm sensors
Hill-start Assist Control
Intrusion Alarm
Lane Departure Alert
Motion sensor alarm
Multi-reflector halogen headlights
Rear parking sensors
Tyre Pressure Warning System
Speed limiter with Road Sign Assist
Driver Monitoring Camera
Intelligent Speed Assist
eCall emergency call system

Panel bulkhead
Supplemental Restraint System - 2 airbags
Driver & passenger front airbag

Styling

Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.

Black door handles
Black door mirrors
Black front bumper
Black insert on upper front grille
Black rear bumper
Privacy Glass - 30% (Smoke tint)
Black grained rail cover on side sliding door

3-spoke Urethane steering wheel
Black centre air vent surrounds
Black side air vent surrounds
Black front interior door handles

Wheels

Choose from Toyota's selection of premium wheels to suit your driving style.

Full size Temporary spare wheel

Comfort

Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs to heating that keeps you warm when it's cold outside.

180° opening on rear wing doors
Auto headlights
Power-adjustable door mirrors
Electric heated door mirrors
Manually retractable door mirrors
Panel rear wing doors
Remote door lock
Two sliding side doors

12v power outlet - Cargo area
12v power outlet - Front
2-seater front passenger bench
Adjustable lumbar support on driver seat
Audio switches on steering wheel
Cargo area room lights x 2
Colour multi-information display
Driver & front passenger personal lights
Drivers armrest
Front power windows
Auto up & down function on power windows
Front room light
Height-adjustable driver seat
Key starting system
Lane Departure Alert switch on steering wheel
Manual air conditioning
Manually reclining driver seat
Manually sliding driver seat
Noise reduction layer on front windows
Power door lock
Cruise Control switch behind steering wheel
10" screen for multi-information display

Multimedia

Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.

4 speakers
USB Type-C connector
10" Toyota Smart Connect with Smartphone integration including Apple CarPlay™
Toyota Smart Connect with Smartphone integration including Apple CarPlay™ Multimedia system
