Configure your Proace Active

Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

Engine

1.5 Diesel (120hp), Manual

CO2 Combined WLTP (g/km)
172 g/km

Fuel Economy - Combined WLTP (mpg)
42.8 mpg

Fuel Economy - Combined WLTP (l/100km)
6.6 l/100 km

£29,628.33 (Excl. VAT)

1.5 Diesel (120hp)

1.5 Diesel (120hp), Manual

CO2 Combined WLTP - Max (g/km)193 g/km
CO2 Combined WLTP (g/km)172 - 173 g/km
Fuel Economy - Combined WLTP (mpg)42.8 mpg
Fuel Economy - Combined WLTP - Min (mpg)38.6 mpg
Fuel Economy - Combined WLTP (l/100km)6.6 l/100 km
Figures are provided for comparability purposes; only compare fuel consumption and CO₂ figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the accessories fitted (post-registration), variations in weather, driving styles and vehicle load.
Skip to spin container

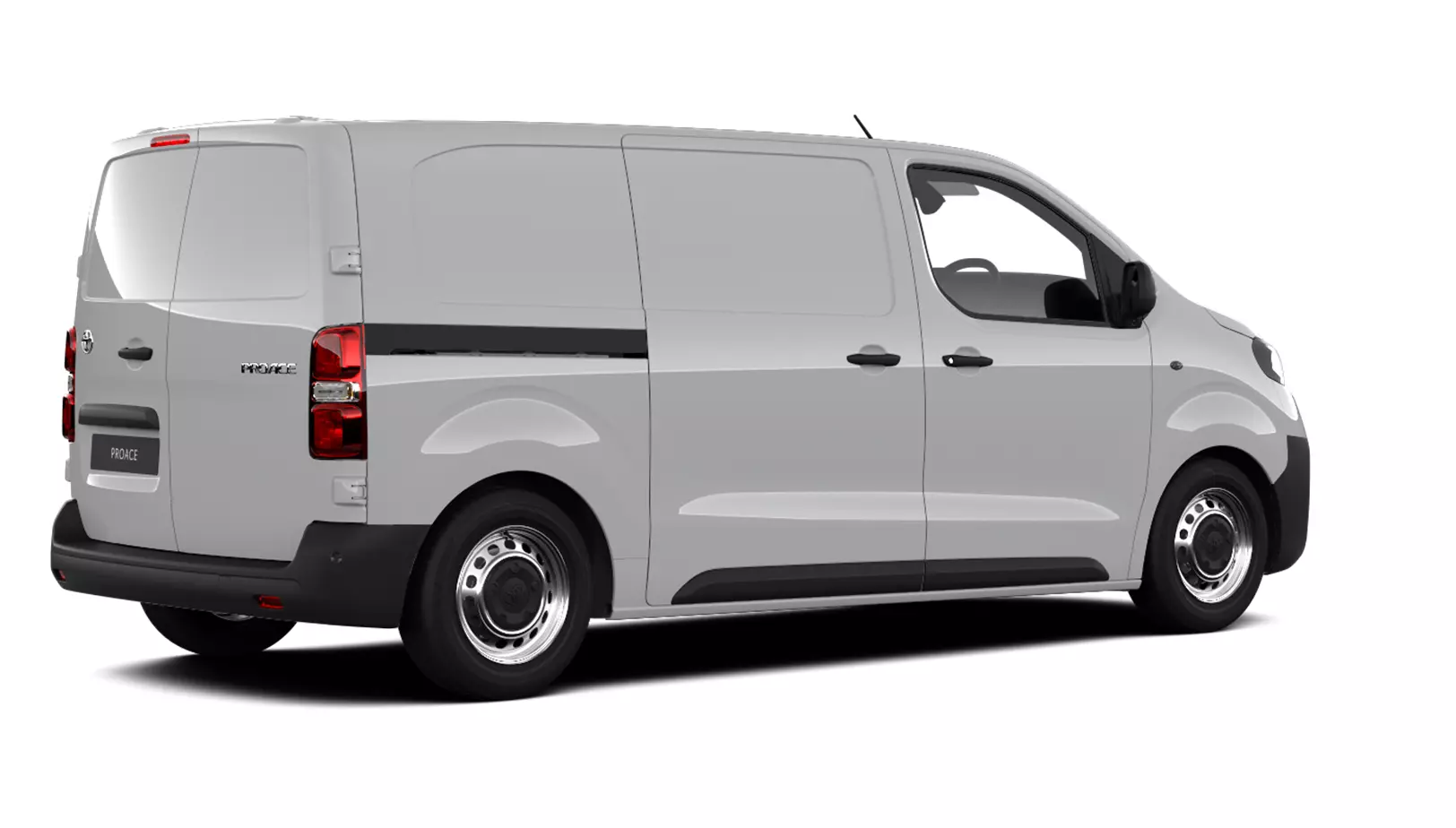

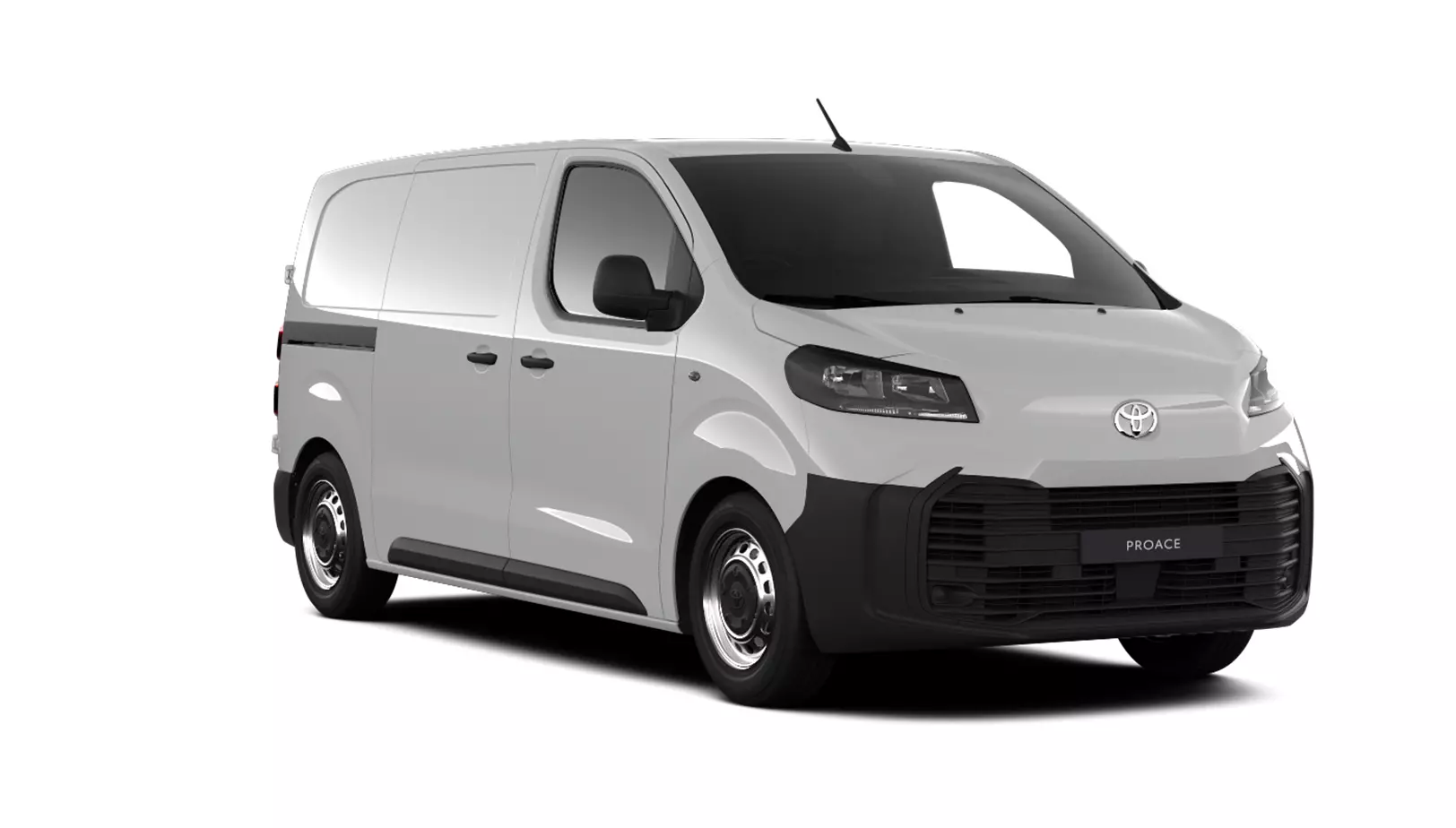

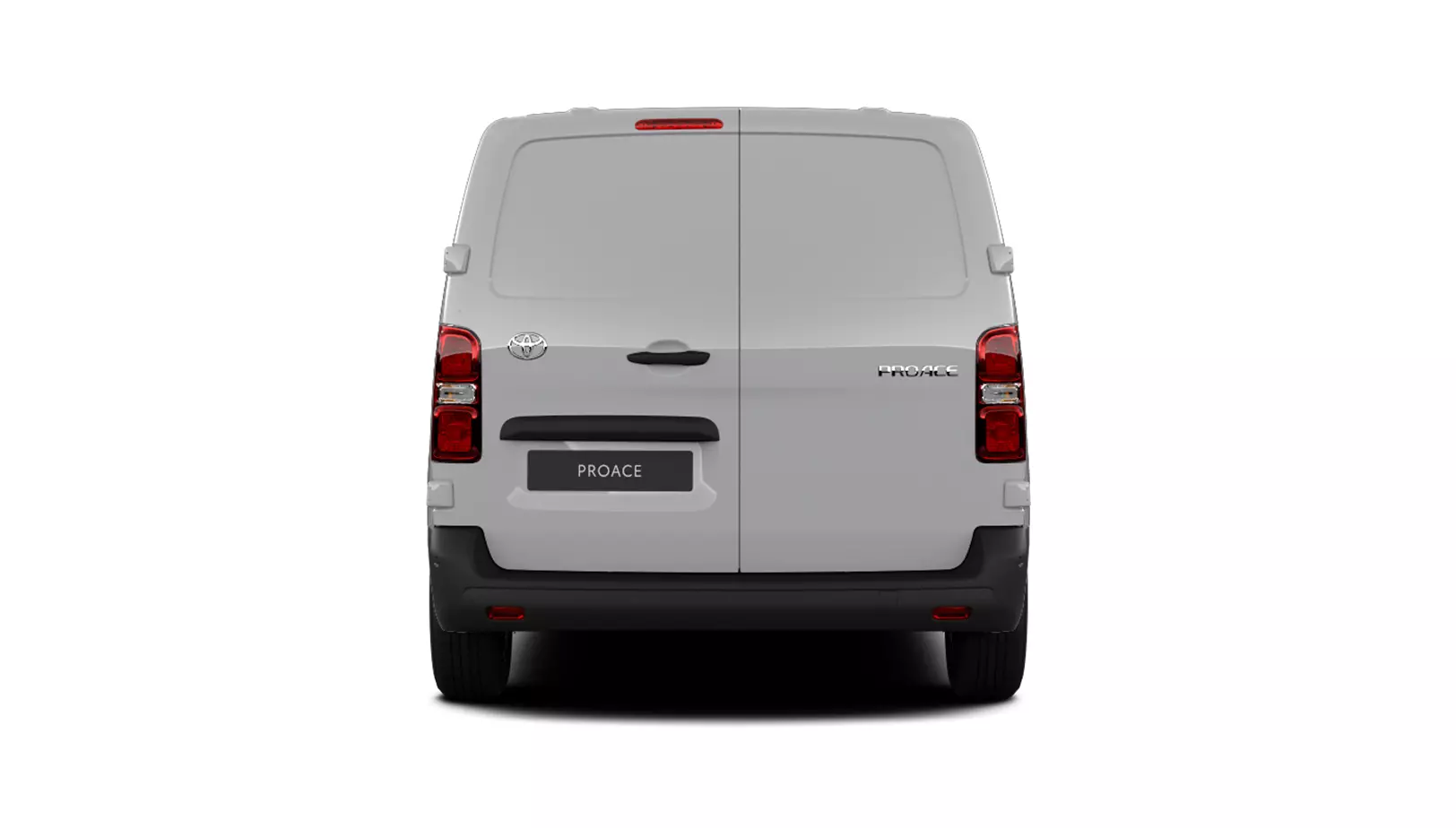

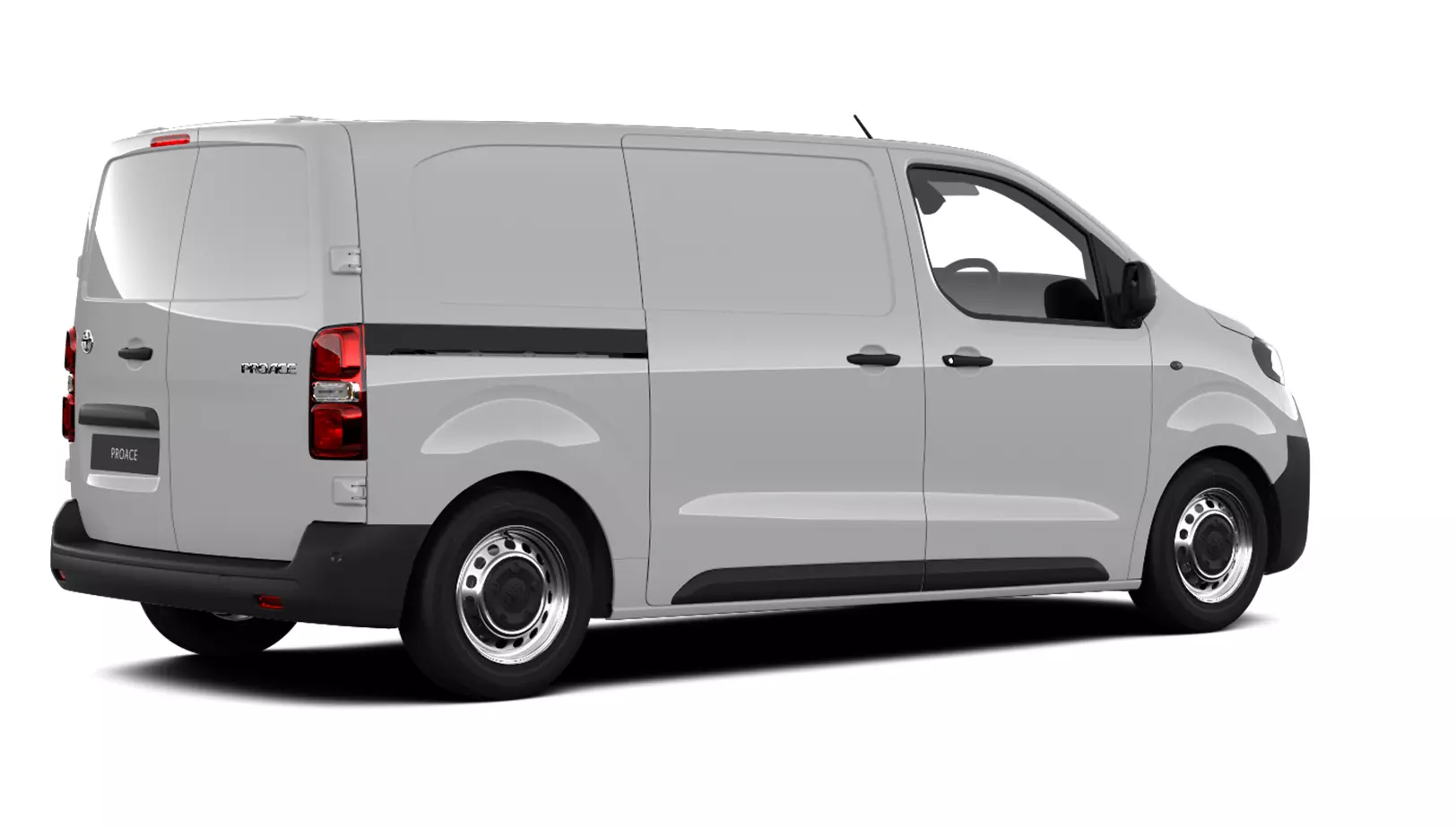

Colour

Skip to spin container

Wheels

16" Steel wheels

16" Steel wheels

Tyre info

Supplier name or trademarkMICHELIN
Tyre type identifier409640
Tyre size designation215/65R16C
Load-capacity index106
Speed category symbolT
Fuel efficiency classB
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/01/2019
Supplier name or trademarkGOODYEAR
Tyre type identifier1997431
Tyre size designation215/65R16C
Load-capacity index106
Speed category symbolH
Fuel efficiency classA
Wet grip classA
External rolling noise classB
External rolling noise value71
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start16/07/2024
Skip to spin container

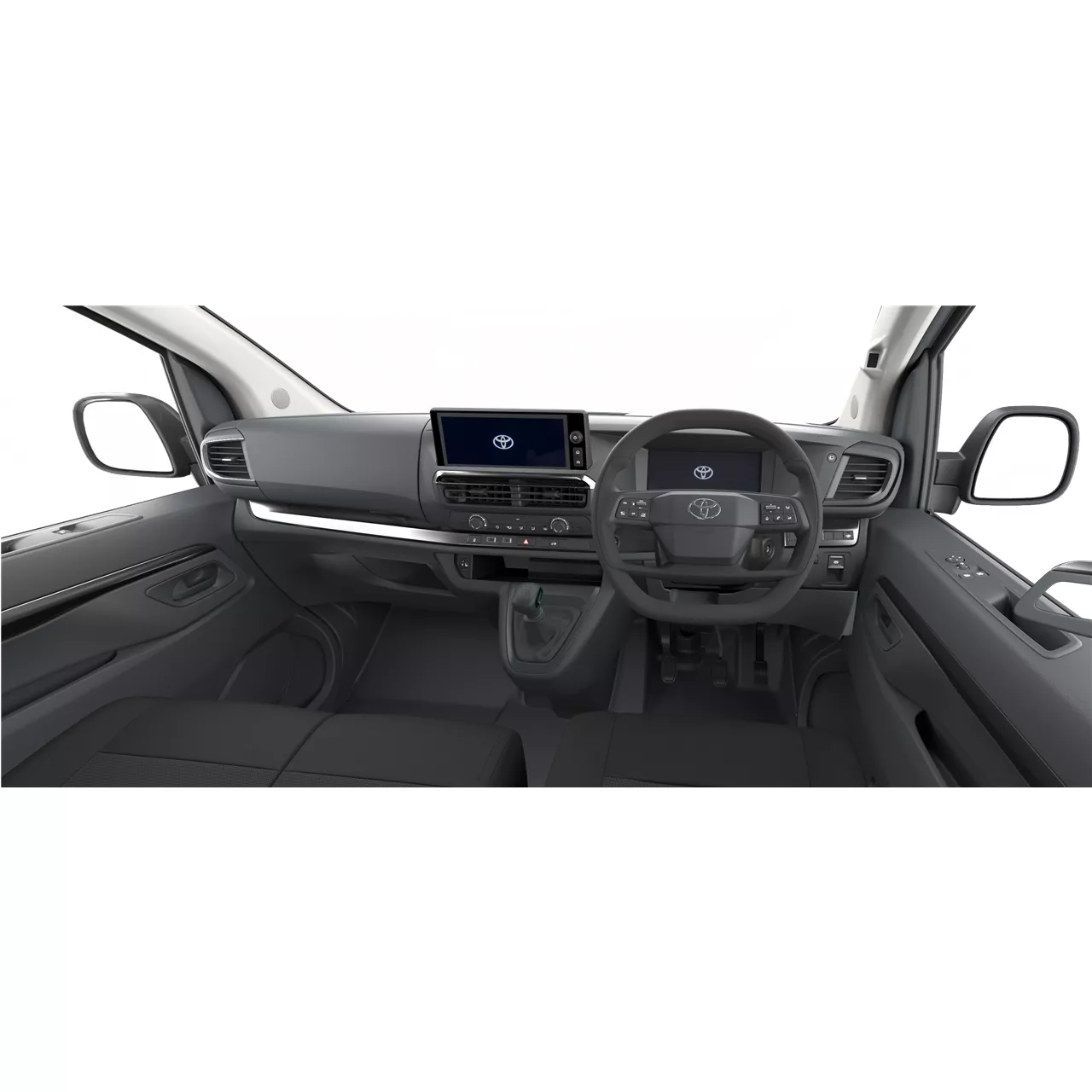

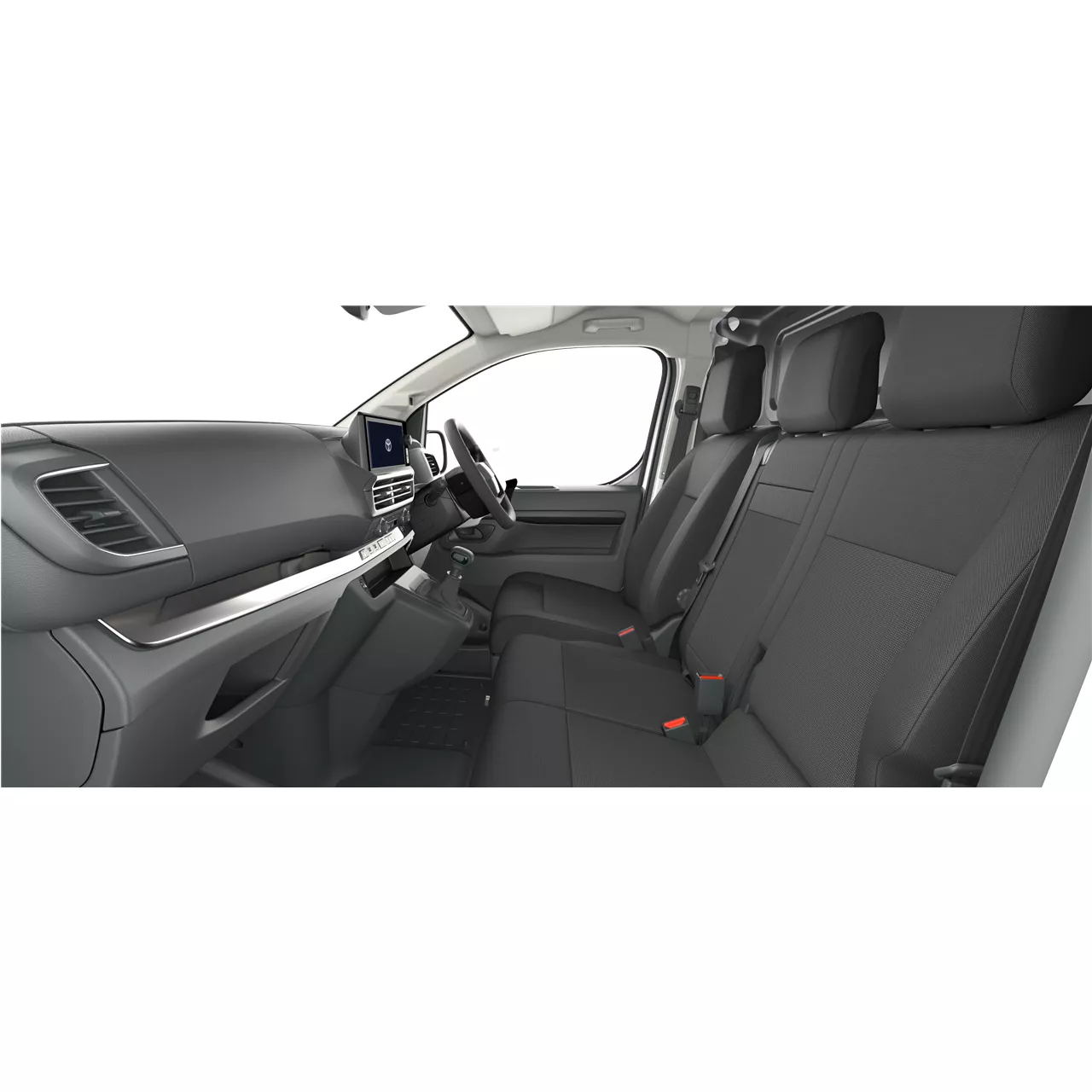

Upholstery

Skip to spin container

Packs

Exterior
Storage
  • Fixed Towing Hitch - 7 Or 13 Pin
    Fixed Towing Hitch - 7 Or 13 Pin 2 extras
    Fixed Towing Hitch

    The fixed towing hitch gives you a safe towing capability, which is ideal for a small boat, caravan or trailer. It is purpose designed for your car and has a tough anti-corrosion surface treatment. A dedicated wiring kit is available separately.

    13 Pin Wiring Kit

    Dedicated wiring kit for use with Toyota towing hitches. The kit’s integral socket makes it quick and easy for you to connect the lights of your car with those of the trailer or caravan you are towing.

  • Flanged Towing Hitch - 7 Or 13 Pin
    Flanged Towing Hitch - 7 Or 13 Pin 1 extras
    13 Pin Wiring Kit

    Dedicated wiring kit for use with Toyota towing hitches. The kit’s integral socket makes it quick and easy for you to connect the lights of your car with those of the trailer or caravan you are towing.

Safety
  • Meroni Smart Locks (3 Locks)
    Meroni Smart Locks (3 Locks) 1 extras
    Security Door Lock

Interior
Interior
  • Premium Racking, Right Side (L1)
    Premium Racking, Right Side (L1) 1 extras
    Aluminium racking - right side

  • Premium Racking, Left Side
    Premium Racking, Left Side 1 extras
    Aluminium racking - left side

  • Premium Racking, Both Sides (L1)
    Premium Racking, Both Sides (L1) 2 extras
  • Premium Racking, Both Sides
    Premium Racking, Both Sides 2 extras
Styling
  • Aluminium Scuff Plates
    Aluminium Scuff Plates 1 extras
    Scuff plates - aluminium

Safety
  • Safety Hammer - Life Hammer Plus
    Safety Hammer - Life Hammer Plus 1 extras
    Safety Hammer

    This automotive emergency hammer allows the driver or his passengers to smash a window (tempered glass only) in case of an emergency. The hammer comes with a quick click holder.

No extras were found
Skip to spin container
£30,732.00 (Excl. VAT)
Summary
Get a quote

Summary

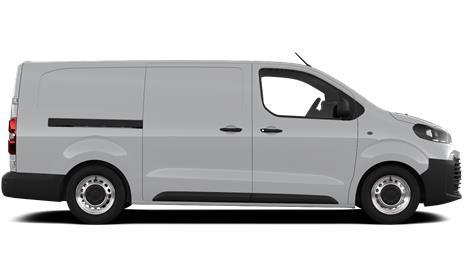

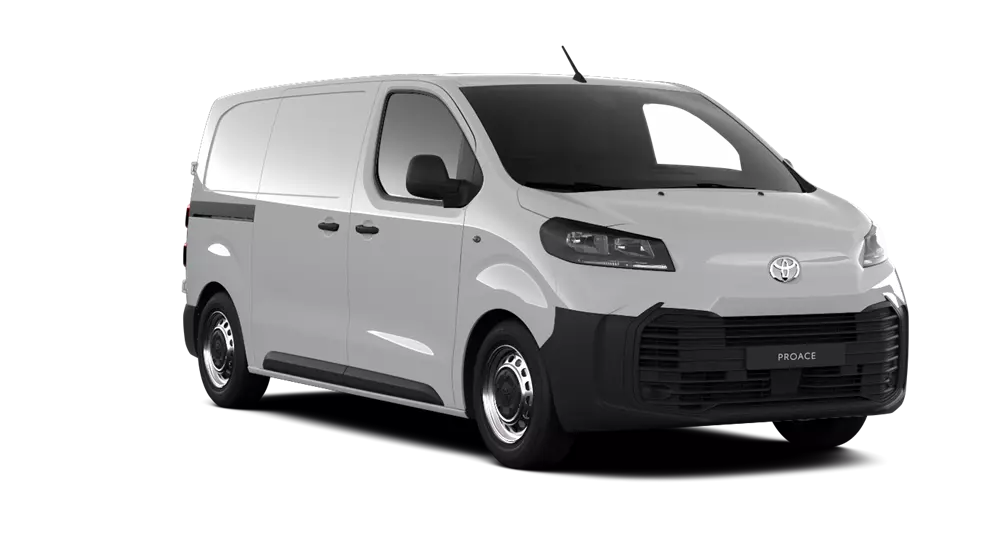

Proace Active

Starting price
£29,628.33 (Excl. VAT)

  • Engine

    Front Wheel Drive - FWD
    1.5 Diesel (120hp), Manual

  • Colour

    • Icy White (Solid Paint)

      Solid

      Included

  • Wheels

    • 16" Steel wheels

      Included

  • Upholstery

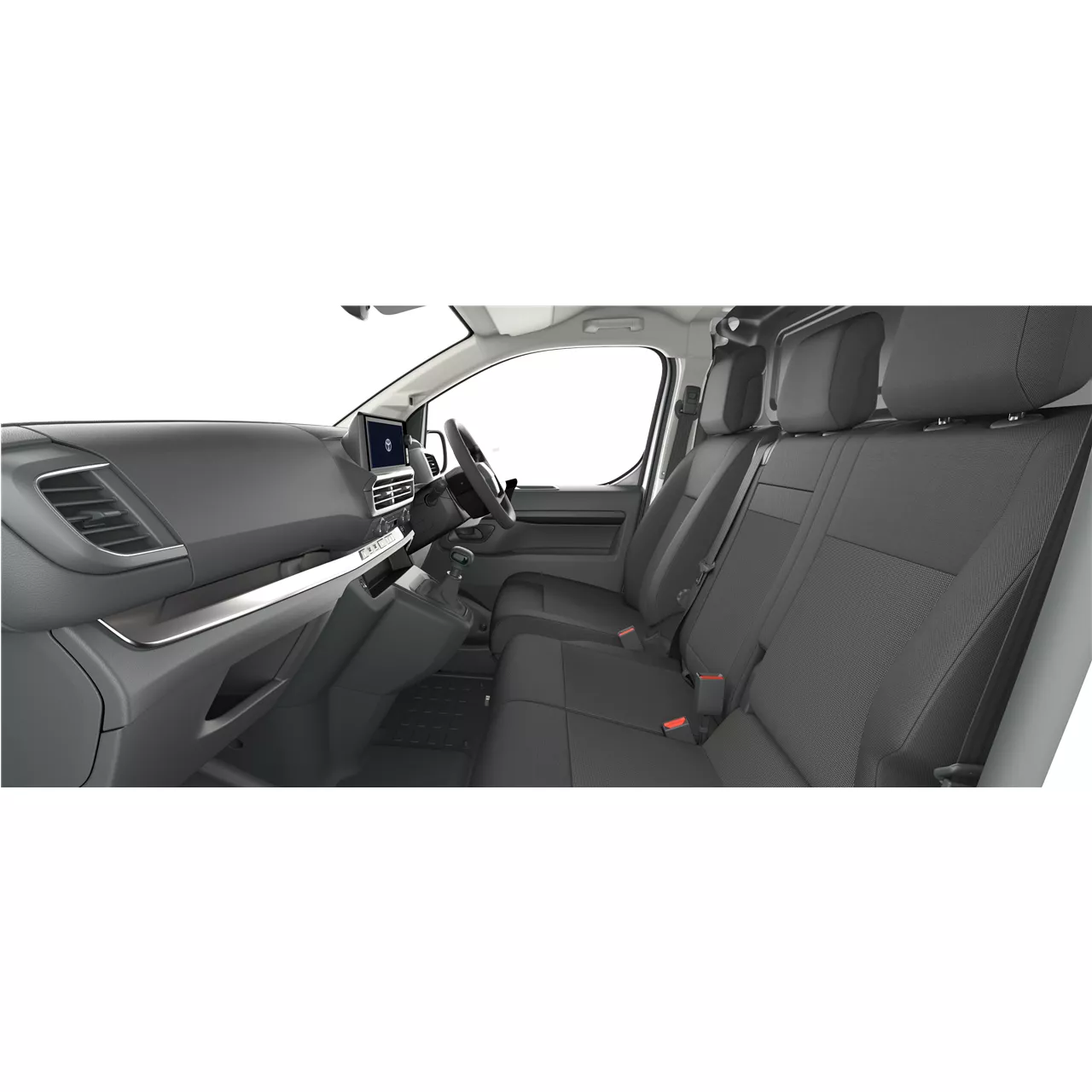

    • Dark Grey Fabric

      Included

  • Packs & Extras

Other Costs

Tax and Costs

Includes 1st Year VED based on CO2 emissions of 172 g/km

£360.00

Delivery fee
£667.00
License plate fee
£21.67
Registration fee
£55.00

  • Part Exchange

    Use the value of your current vehicle towards the cost of your new Toyota. For an instant quote, all we need is your registration, mileage and a few details about its condition.

Specifications

Technical specifications

Engine

  • Displacement (cc)

    1499 cc

  • Bore x Stroke (mm x mm)

    75 x 84.8 mm

  • Engine Layout & Number Of Cylinders

    4 cylinder, in line

  • Maximum Output (DIN hp)

    120 DIN hp

  • Maximum Output (kW@rpm)

    88 kW@rpm

  • Maximum Torque (Nm@rpm)

    300/1750- Nm

Transmission

  • Transmission Type

    Manual

  • Drive

    FWD

Performance

  • Maximum Speed (mph)

    99 mph

  • Acceleration 0-62 (mph)

    16.0 seconds

Suspension

  • Suspension Front

    Pseudo McPherson with anti-roll bar

  • Suspension Rear

    Oblique Wishbone Trailing Arms

Brakes

  • Brakes Front

    Ventilated Disc

  • Brakes Rear

    Disc

Weights & Towing Capacity

  • Gross Train Weight - Total (kg)

    4056 kg

  • Gross Vehicle Weight (kg)

    2656 kg

  • Kerb Weight / Unladen Weight (kg)

    1656-1854 kg

  • Payload (kg)

    1000 kg

  • Maximum Trailer Weight - Braked (kg)

    2000 kg

  • Maximum Trailer Weight - Unbraked (kg)

    750 kg

  • Gross Vehicle Weight - Front (kg)

    1500 kg

  • Gross Vehicle Weight - Rear (kg)

    1500 kg

Exterior dimensions

  • Exterior Length (mm)

    4981 mm

  • Exterior Width (mm)

    1924 mm

  • Exterior Height (mm)

    1955 mm

  • Front Tread (mm)

    1630 mm

  • Rear Tread (mm)

    1618 mm

  • Overhang Front (mm)

    902 mm

  • Overhang Rear (mm)

    803 mm

  • Wheelbase (mm)

    3275 mm

Interior dimensions

  • Number of Seats

    3 seats

  • Interior length (mm)

    3161 mm

  • Interior Width (mm)

    1515 mm

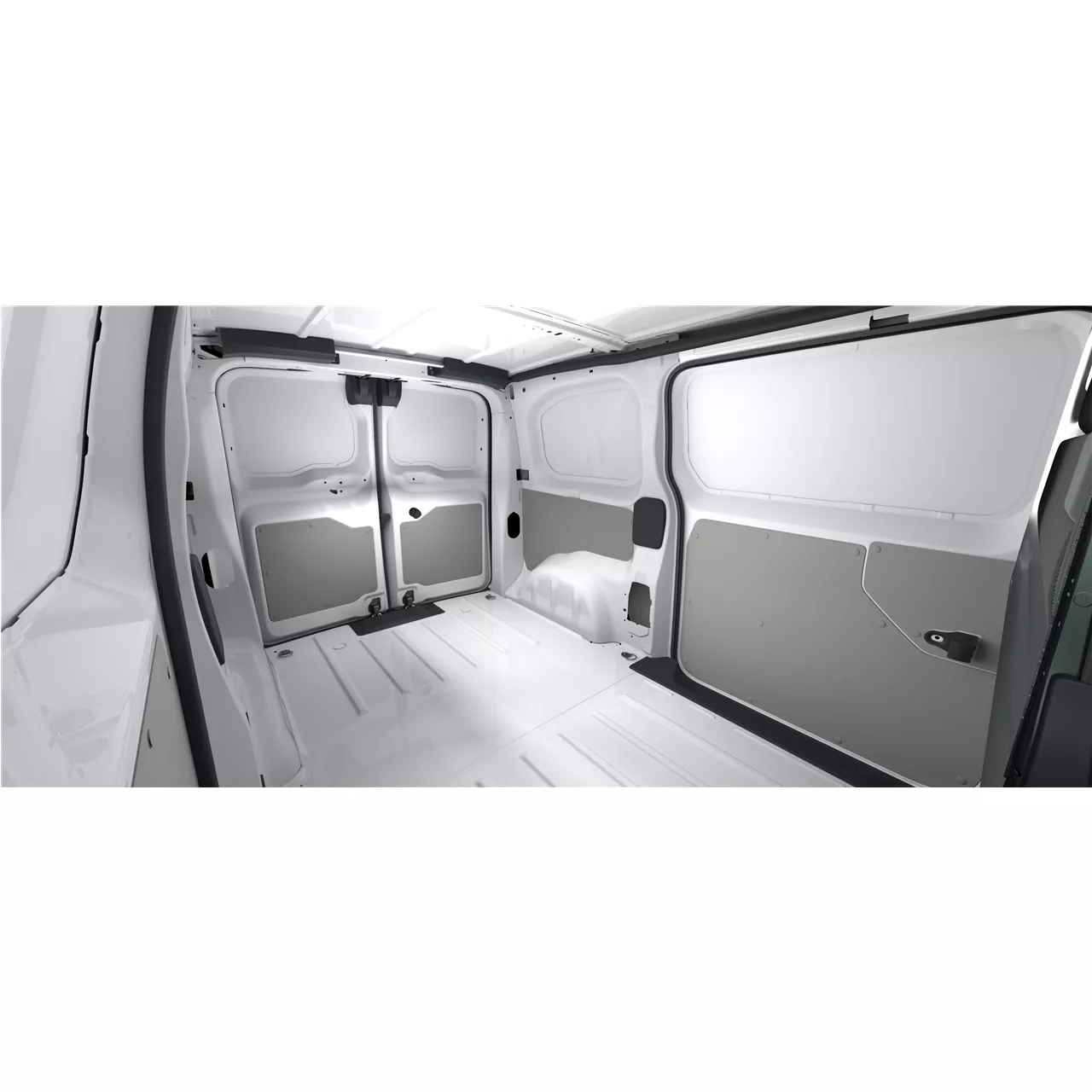

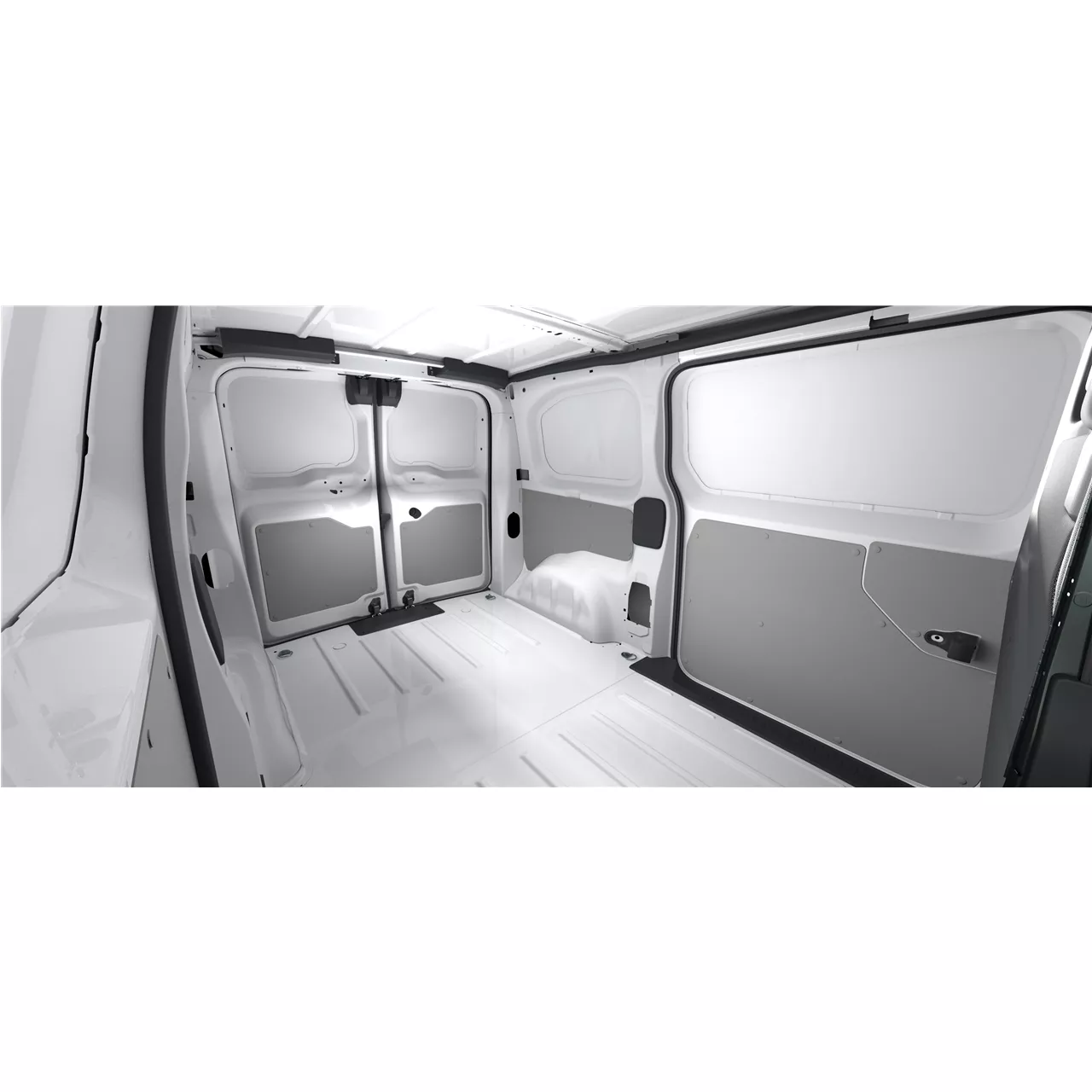

Luggage volume

  • Deck Length (mm)

    2512 mm

  • Deck Width (mm)

    1636 mm

  • Deck Height (mm)

    1397 mm

  • Load Volume (m³)

    5.8 m³

Steering

  • Turning Radius Tyre (m)

    12.4 m

  • Turning Radius Body (m)

    12.9 m

Off Road

  • Minimum Running Ground Clearance (mm)

    150 mm

  • Approach Angle (°)

    17.1 °

  • Departure Angle (°)

    21.1 °

Exterior

Wheels

  • Full size Temporary spare wheel

Styling

  • Black door handles

  • Black door mirrors

  • Black front bumper

  • Black insert on upper front grille

  • Black rear bumper

  • Privacy Glass - 30% (Smoke tint)

  • Black grained rail cover on side sliding door

Comfort

  • 180° opening on rear wing doors

  • Auto headlights

  • Power-adjustable door mirrors

  • Electric heated door mirrors

  • Manually retractable door mirrors

  • Panel rear wing doors

  • Remote door lock

  • Two sliding side doors

Protection

  • Black protection moulding on side doors

Safety

  • Anti-tamper alarm

  • Auto wipers

  • Automatic High Beam

  • Cruise Control

  • Driver Attention Alert

  • Glass-breaking alarm sensors

  • Hill-start Assist Control

  • Intrusion Alarm

  • Lane Departure Alert

  • Motion sensor alarm

  • Multi-reflector halogen headlights

  • Rear parking sensors

  • Tyre Pressure Warning System

  • Speed limiter with Road Sign Assist

  • Driver Monitoring Camera

  • Intelligent Speed Assist

  • eCall emergency call system

Interior

Multimedia

  • 4 speakers

  • USB Type-C connector

  • 10" Toyota Smart Connect with Smartphone integration including Apple CarPlay™

  • Toyota Smart Connect with Smartphone integration including Apple CarPlay™ Multimedia system

Styling

  • 3-spoke Urethane steering wheel

  • Black centre air vent surrounds

  • Black side air vent surrounds

  • Black front interior door handles

Comfort

  • 12v power outlet - Cargo area

  • 12v power outlet - Front

  • 2-seater front passenger bench

  • Adjustable lumbar support on driver seat

  • Audio switches on steering wheel

  • Cargo area room lights x 2

  • Colour multi-information display

  • Driver & front passenger personal lights

  • Drivers armrest

  • Front power windows

  • Auto up & down function on power windows

  • Front room light

  • Height-adjustable driver seat

  • Key starting system

  • Lane Departure Alert switch on steering wheel

  • Manual air conditioning

  • Manually reclining driver seat

  • Manually sliding driver seat

  • Noise reduction layer on front windows

  • Power door lock

  • Cruise Control switch behind steering wheel

  • 10" screen for multi-information display

Storage

  • Cooler in upper glovebox

  • Front cup holders

  • Front door pockets

  • Open upper dashboard storage compartment

  • Smart Cargo

  • Plastic floor trim in driver cabin

Performance

  • Stop & Start System

Safety

  • Panel bulkhead

  • Supplemental Restraint System - 2 airbags

  • Driver & passenger front airbag

Environmental Performance

  • CO2 Combined WLTP - Max (g/km)

    193 g/km

  • CO2 Combined WLTP (g/km)

    172 g/km

  • Fuel Economy

    38.6 - 42.8 mpg

  • Fuel Economy - Combined WLTP (l/100km)

    6.6 l/100 km

  • Carbon Monoxide, CO (mg/km)

    99.8 mg/km

  • Hydrocarbons, THC & Nitrogen Oxides, NOx (mg/km)

    109.2 mg/km

  • Nitrogen Oxides, NOx (mg/km)

    101.3 mg/km

  • Sound Level Drive By (dB(A))

    68.0 dB(A)

  • Euro Class

    EURO 6 EB

  • Total

    £30,732.00 (Excl. VAT)
