Configure your Proace Max Tipper

Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

Engine

2.2 Diesel (140 hp), Manual

CO2 Combined - WLTP (g/km)
254 g/km

£42,461.67 (Excl. VAT)

2.2 Diesel (140 hp)

2.2 Diesel (140 hp), Manual

CO2 Combined - WLTP (g/km)254 g/km
Fuel Economy - Combined Max WLTP (mpg)29.1 mpg
Fuel Economy - Combined Min WLTP (mpg)24.3 mpg
Euro ClassEURO 6 EB
Displacement (cc)2184 cc
Figures are provided for comparability purposes; only compare fuel consumption and CO₂ figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the accessories fitted (post-registration), variations in weather, driving styles and vehicle load.
Skip to spin container

Colour

Skip to spin container

Wheels

16" Steel wheels

16" Steel wheels

Tyre info

Supplier name or trademarkContinental
Commercial name or trade designationVanContact Eco
Tyre type identifier481740
Tyre size designation215/75 R 16 C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/04/2020
Load versionSL
Supplier name or trademarkNEXENTIRE
Commercial name or trade designationROADIAN CTX
Tyre type identifier583155
Tyre size designation215/75R16C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classA
External rolling noise value69
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/09/2020
Skip to spin container

Upholstery

Skip to spin container

Packs & Extras

Exterior
Storage
  • Flanged Towing Hitch with Towball with 13 Pin Wiring
    Flanged Towing Hitch with Towball with 13 Pin Wiring 1 extras
    13 Pin Wiring Kit

    Dedicated wiring kit for use with Toyota towing hitches. The kit’s integral socket makes it quick and easy for you to connect the lights of your car with those of the trailer or caravan you are towing.

Interior
Comfort
  • Smart Tacho
    Smart Tacho 2 extras
    Digital tachometer

    Overhead storage

Storage
  • Smart Tacho
    Smart Tacho 2 extras
    Digital tachometer

    Overhead storage

Interior

Comfort
  • Digital tachometer
    Also available in the

    Digital tachometer

    Smart Tacho 2 extras
    Digital tachometer

    Overhead storage

Storage
  • Overhead storage
    Also available in the

    Overhead storage

    Smart Tacho 2 extras
    Digital tachometer

    Overhead storage

Skip to spin container
£43,028.34 (Excl. VAT)
Summary
Get a quote

Summary

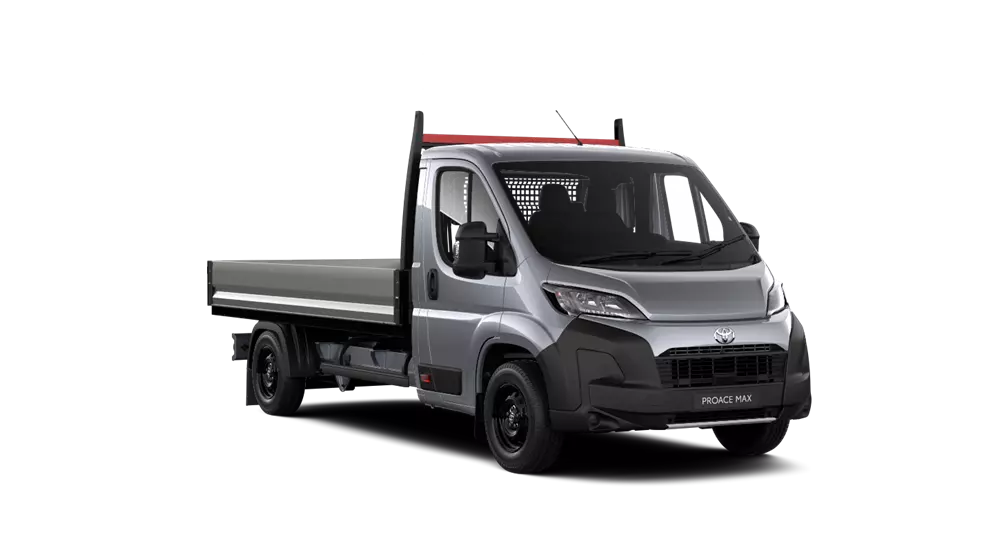

Proace Max Tipper

Starting price
£42,461.67 (Excl. VAT)

  • Engine

    Front Wheel Drive - FWD
    2.2 Diesel (140 hp), Manual

  • Colour

    • Silver Shadow (Metallic Paint)

      Metallic

      + £566.67 (Excl. VAT)

  • Wheels

    • 16" Steel wheels

      Included

  • Upholstery

    • Black fabric (BTFX)

      Included

  • Packs & Extras

Other Costs

Tax and Costs

Includes 1st Year VED based on CO2 emissions of 254 g/km

£360.00

Immatruculation tax is calculated based on the region you live in. Please select your region to calculate the exact cost.

  • Part Exchange

    Use the value of your current vehicle towards the cost of your new Toyota. For an instant quote, all we need is your registration, mileage and a few details about its condition.

Specifications

Technical specifications

Engine

  • Displacement (cc)

    2184 cc

  • Bore x Stroke (mm x mm)

    83.8 x 99 mm

  • Compression Ratio

    15.5:1

  • Number Of Cylinders

    4 cylinder, in line

  • Maximum Output (DIN hp)

    140 DIN hp

  • Maximum Output (kW@rpm)

    103 kW@rpm

  • Maximum Torque (Nm@rpm)

    350 Nm

Transmission

  • Transmission Type

    Manual

  • Drive

    FWD

Performance

  • Maximum Speed (mph)

    96 mph

Suspension

  • Suspension Front

    Independent, MacPherson type (wishbones, coil springs, telescopic shock absorbers & anti-roll bar)

  • Suspension Rear

    Rigid tubular axle(parabolic longitudinal leaf springs,telesc. shock absorbers,flexible side buffers

Brakes

  • Brakes Front

    Disc

  • Brakes Rear

    Disc

Weights & Towing Capacity

  • Gross Train Weight - Total (kg)

    6000 kg

  • Gross Vehicle Weight (kg)

    3500 kg

  • Kerb Weight / Unladen Weight (kg)

    2395-2547 kg

  • Maximum Trailer Weight - Braked (kg)

    3000 kg

  • Maximum Trailer Weight - Unbraked (kg)

    750 kg

  • Gross Vehicle Weight - Front (kg)

    2100 kg

  • Gross Vehicle Weight - Rear (kg)

    2400 kg

Exterior dimensions

  • Exterior Length (mm)

    6173 mm

  • Exterior Width (mm)

    2100 mm

  • Exterior Height (mm)

    2376 mm

  • Front Tread (mm)

    1810 mm

  • Rear Tread (mm)

    1790 mm

  • Overhang Front (mm)

    948 mm

  • Overhang Rear (mm)

    1190 mm

  • Wheelbase (mm)

    4035 mm

Interior dimensions

  • Number of Seats

    3 seats

Luggage volume

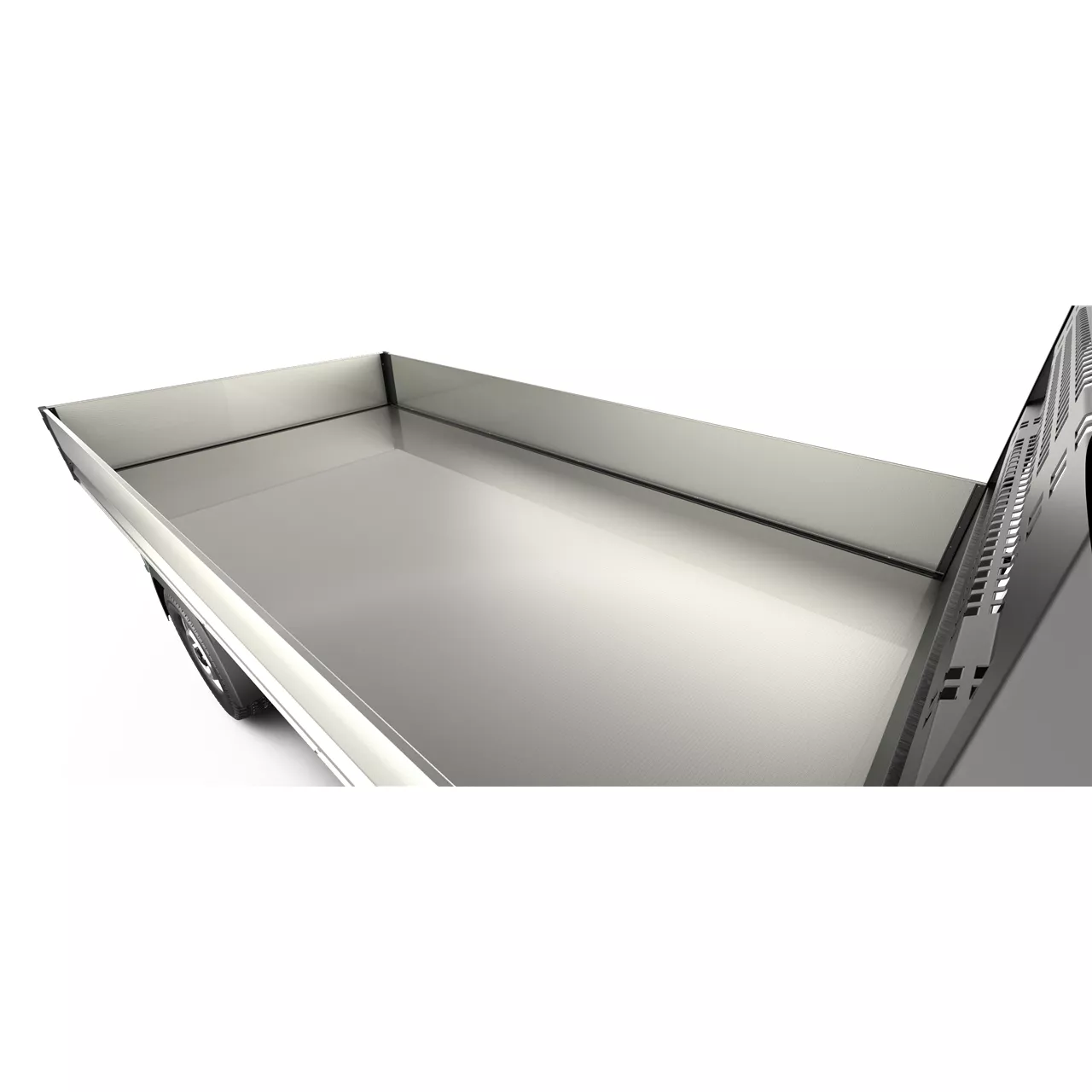

  • Deck Length (mm)

    3625 mm

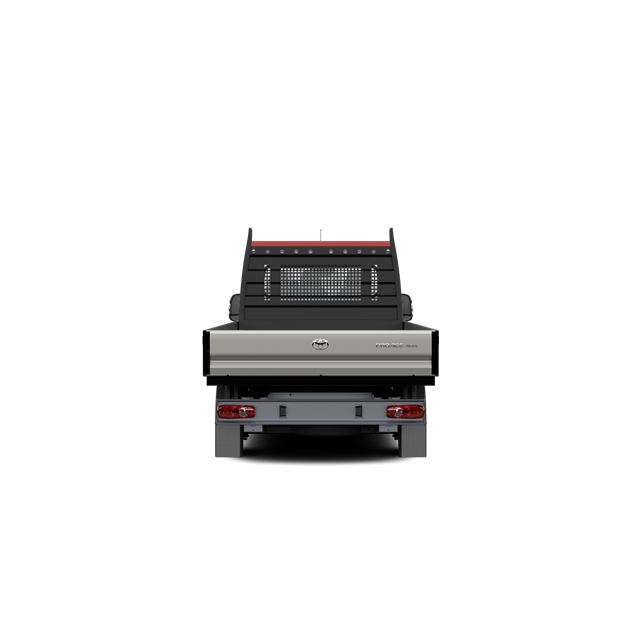

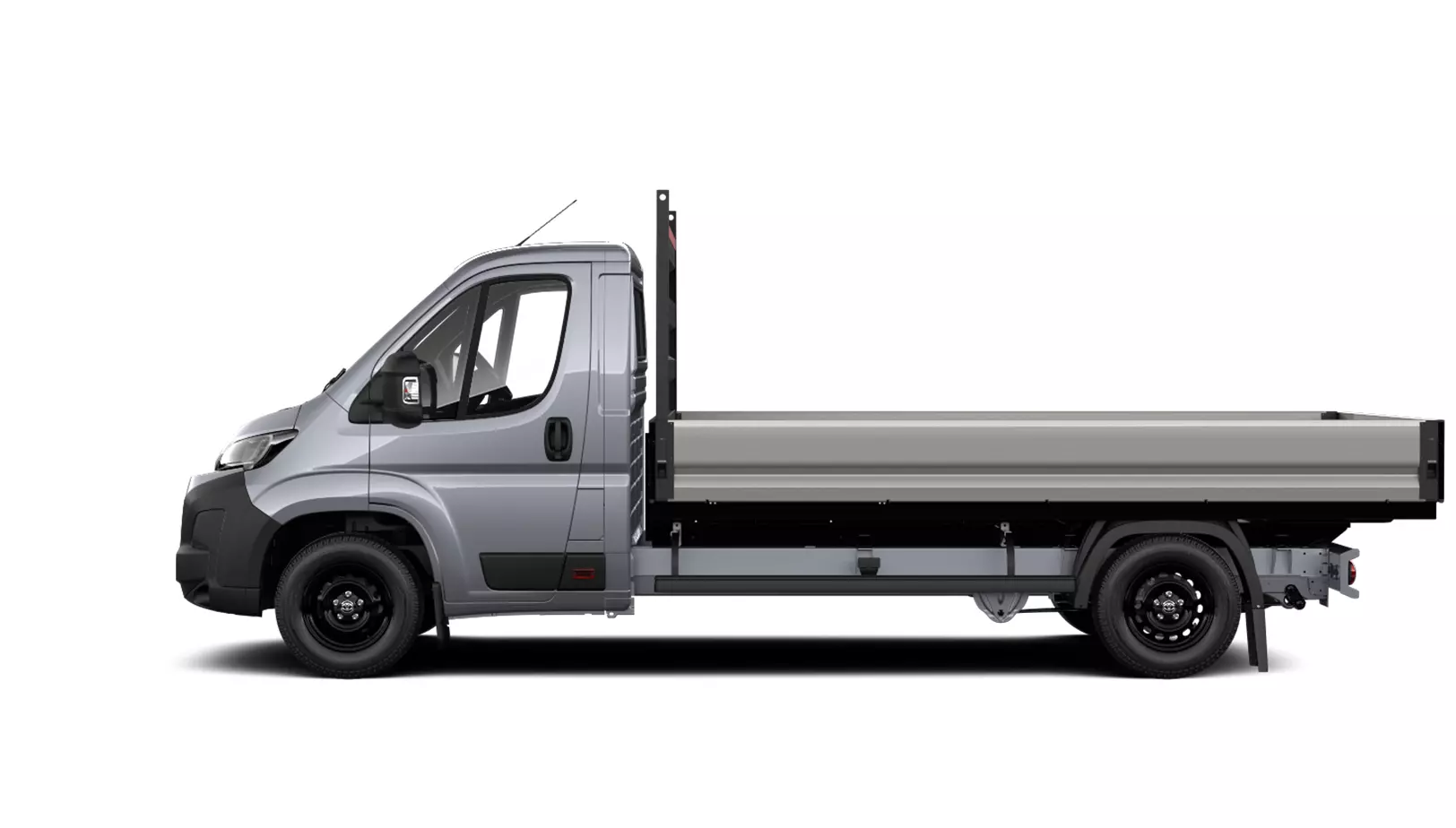

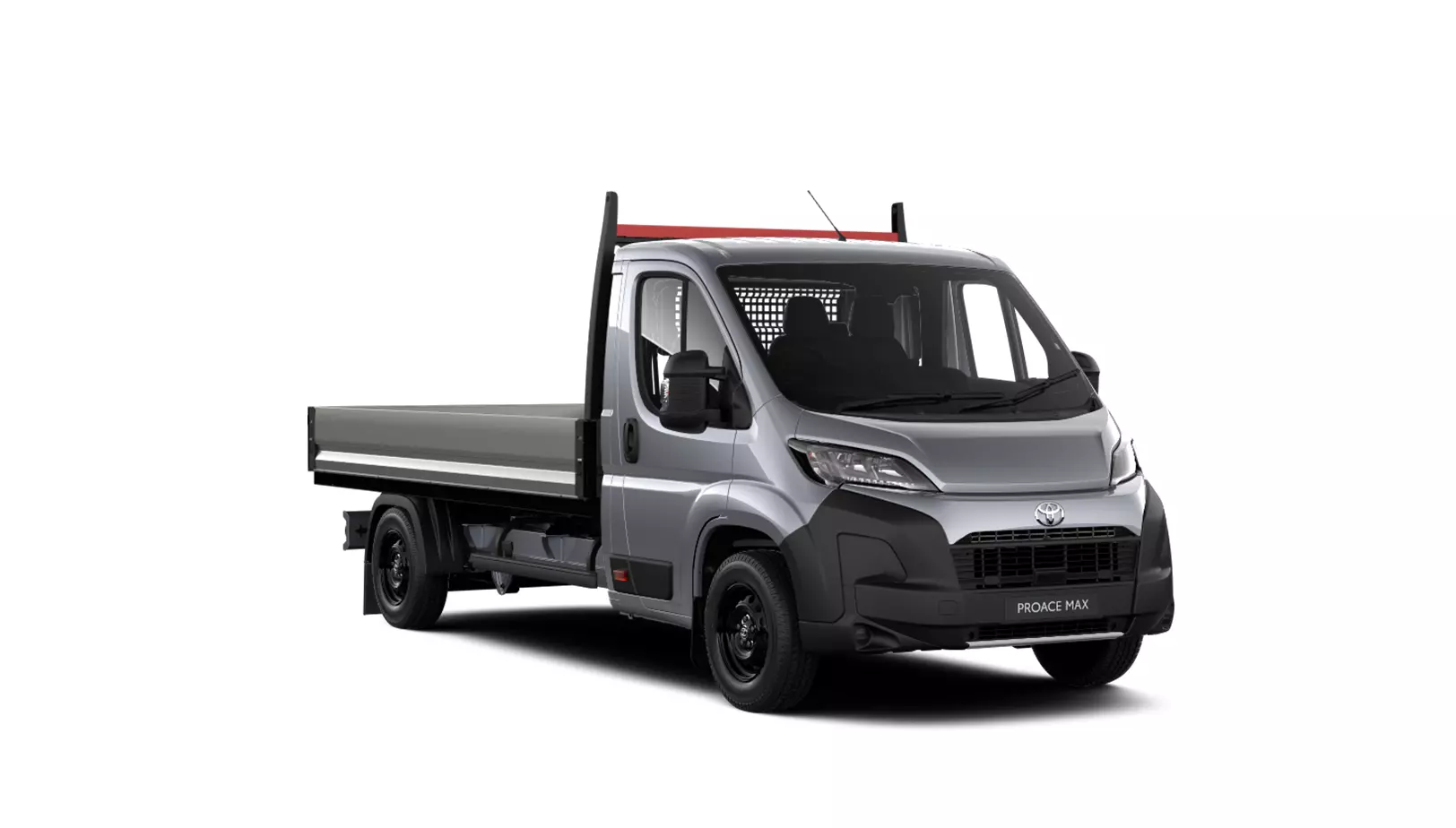

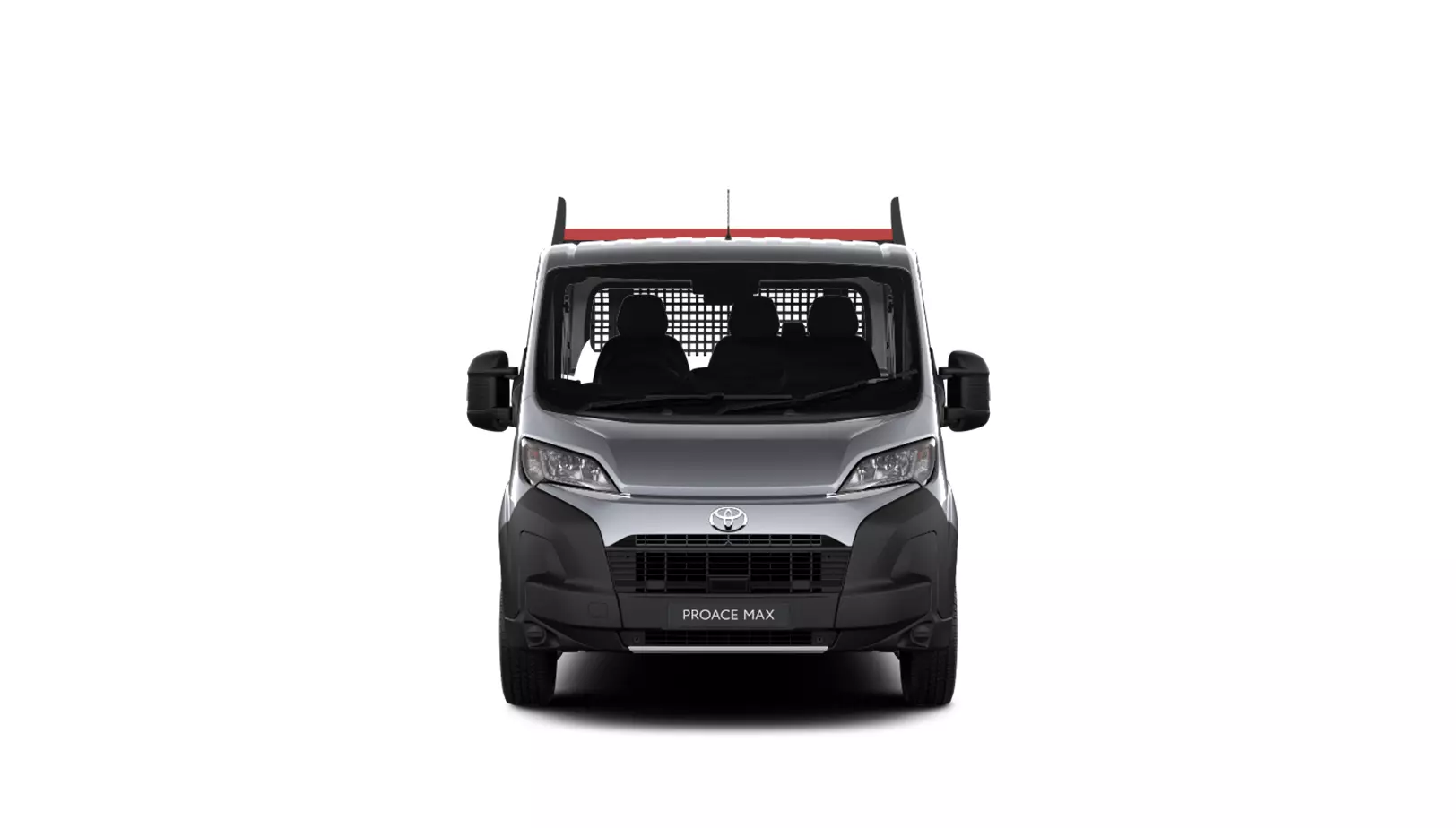

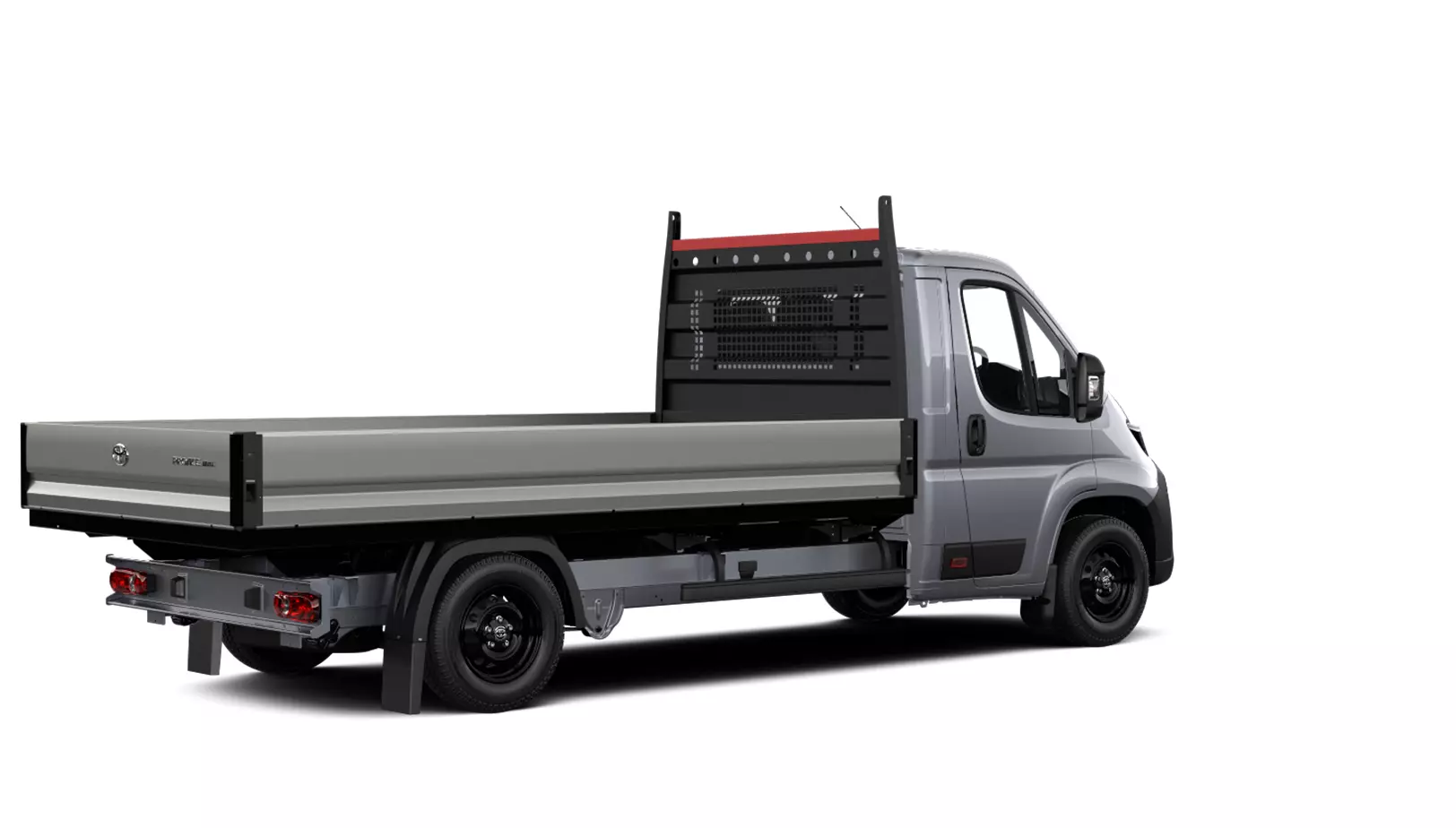

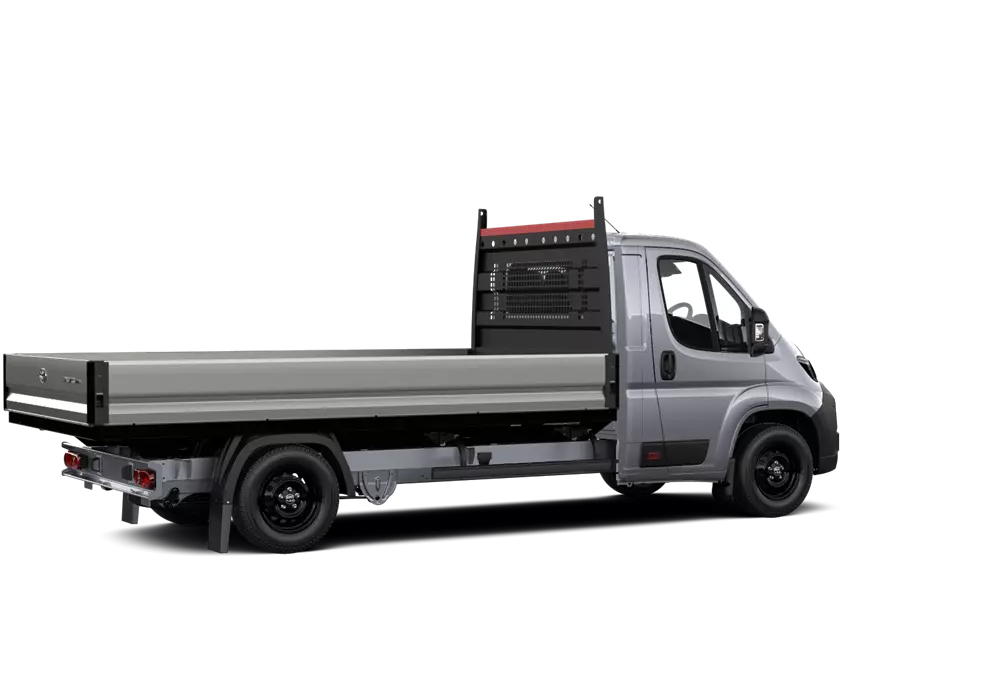

Exterior

Wheels

  • Black small centre caps

  • Full size Temporary spare wheel

Styling

  • Black front bumper

  • Black painted upper front grill

  • Roof antenna

  • Privacy Glass - 30% (Smoke tint)

Comfort

  • Auto headlights

  • Power-adjustable door mirrors

  • Electric heated door mirrors

  • Manually retractable door mirrors

  • Standard arm door mirrors

Storage

  • Electric converter box

  • Tow Bar

Protection

  • Black protection moulding on side doors

  • Front mudguards

  • Rear mudguards

Safety

  • Anti-tamper alarm

  • Automatic High Beam (AHB)

  • Cruise Control

  • Driver Attention Alert

  • eCall emergency call system

  • Glass-breaking alarm sensors

  • Hill-start Assist Control (HAC)

  • Intrusion Alarm

  • Lane Departure Alert (LDA) with Steering Control

  • Lane Trace Assist (LTA)

  • Motion sensor alarm

  • Pre-Collision System with Pedestrian and Cyclist Detection

  • Projector halogen headlights

  • Rear combination lights

  • Reversing Camera

  • Spare wheel carrier (under body)

  • Tyre Pressure Warning System (TPWS)

  • Vehicle Stability Control Plus (VSC+)

  • Road Sign Assist (RSA)

  • Intelligent Speed Assist

  • Pre-disposition for breathalyser engine lock

  • Safety Data Recording

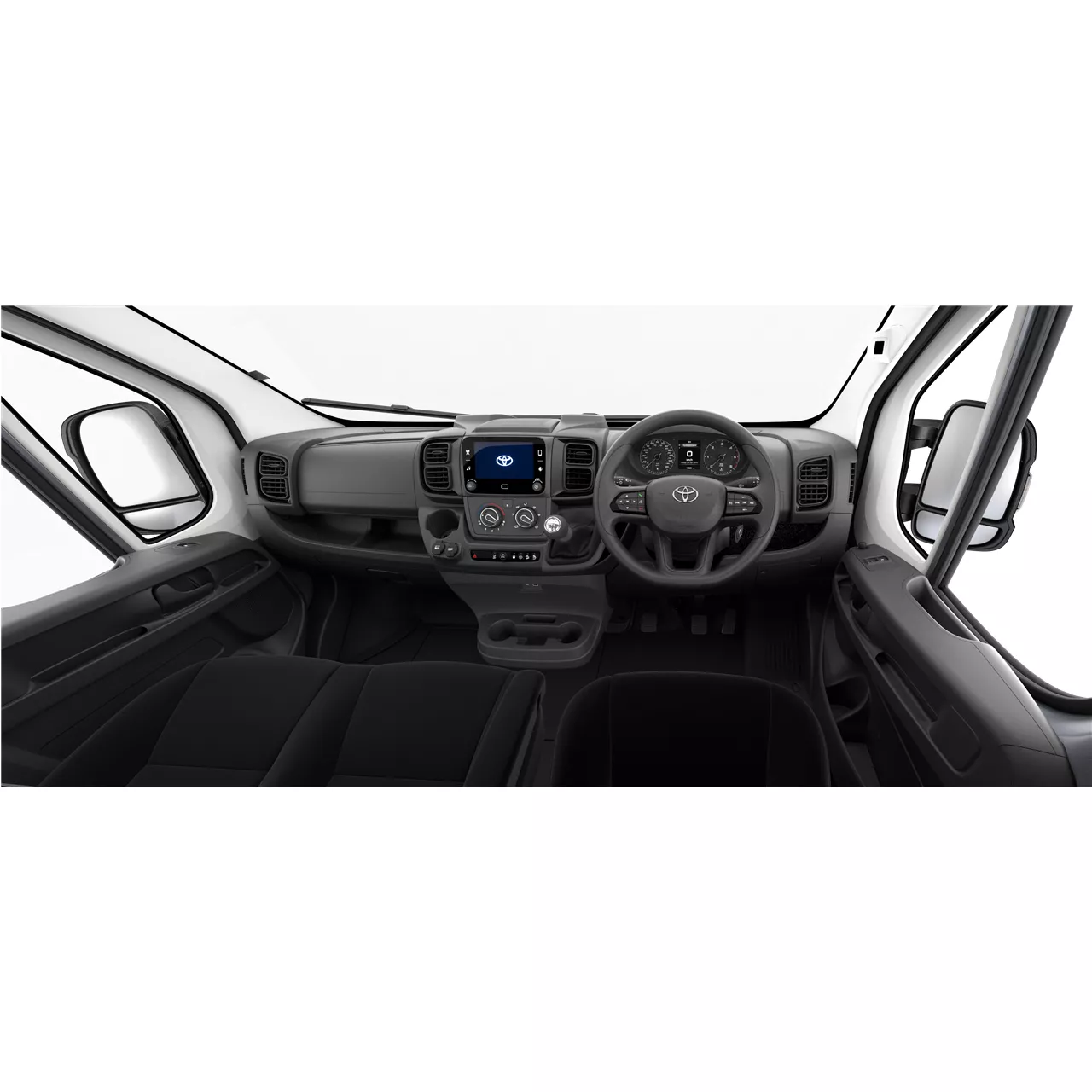

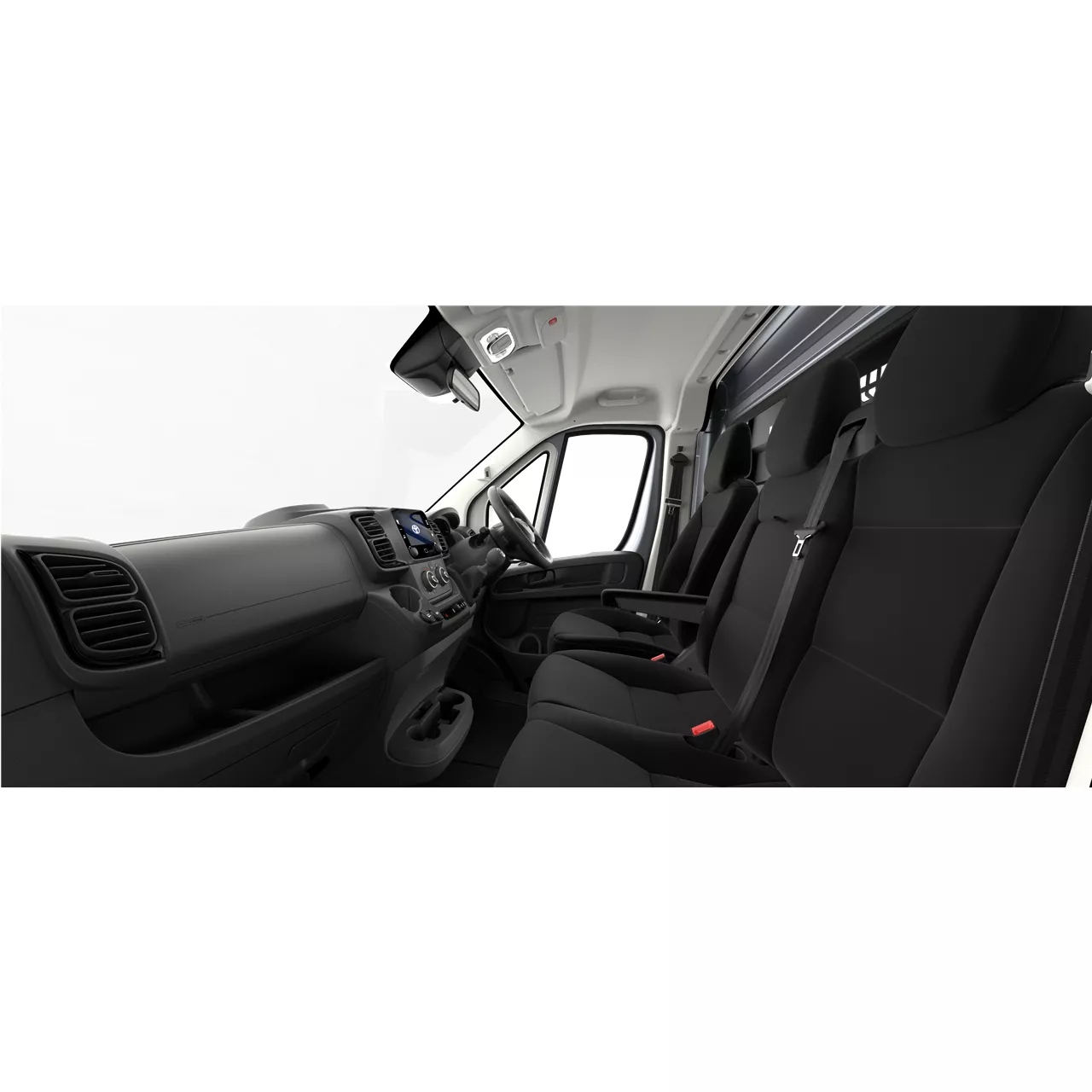

Interior

Multimedia

  • 4 speakers

  • 7" Pro Touch® multimedia system

  • Bluetooth® Connectivity

  • Digital Audio Broadcast (DAB)+

  • Radio

Comfort

  • Audio switches on steering wheel

  • Boot light

  • Drivers armrest

  • Dynamic guide lines on Reversing Camera

  • Height-adjustable driver seat

  • Lane Departure Alert (LDA) switch on lower driver dashboard

  • Manual air conditioning

  • Manual day/night rear-view mirror

  • Manually adjustable lumbar support on driver seat

  • Monochrome multi-information display

  • Speedometer (mph)

  • Telephone switches on steering wheel

  • Without

  • 3.5" multi-information screen

  • Deadlock on rear doors

  • Driver & front passenger fold-up table

Storage

  • Without

  • Front cup holders (4)

  • Closed single cabin

Safety

  • Front seat belt reminder

  • Handbrake

  • Rear seat belt reminder

  • Driver & passenger front airbag

Environmental Performance

  • CO2 Combined - WLTP (g/km)

    254 g/km

  • Fuel Economy

    24.3 - 29.1 mpg

  • Hydrocarbons, THC & Nitrogen Oxides, NOx (mg/km)

    48.7 mg/km

  • Nitrogen Oxides, NOx (mg/km)

    46.4 mg/km

  • Sound Level Drive By (dB(A))

    71.0 dB(A)

  • Euro Class

    EURO 6 EB

  • Carbon Monoxide, CO (mg/km)

    31 mg/km

  • Total

    £43,028.34 (Excl. VAT)
