Configure your Proace Max Chassis Cab

Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

Engine

2.2 Diesel (140 hp), Manual

CO2 Combined - WLTP (g/km)
262 g/km

Fuel Economy - Combined WLTP (mpg)
28.2 mpg

Fuel Economy - Combined WLTP (l/100km)
10 l/100 km

£33,128.33 (Excl. VAT)

2.2 Diesel (140 hp)

2.2 Diesel (140 hp), Manual

CO2 Combined WLTP - Max (g/km)306 g/km
CO2 Combined - WLTP (g/km)262 g/km
Fuel Economy - Combined WLTP (mpg)28.2 mpg
Fuel Economy - Combined Min WLTP (mpg)24.3 mpg
Fuel Economy - Combined WLTP (l/100km)10 l/100 km
Figures are provided for comparability purposes; only compare fuel consumption and CO₂ figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the accessories fitted (post-registration), variations in weather, driving styles and vehicle load.
Skip to spin container

Colour

Skip to spin container

Wheels

16" Steel wheels

16" Steel wheels

Tyre info

Supplier name or trademarkContinental
Tyre type identifier481740
Tyre size designation215/75 R 16 C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/04/2020
Load versionSL
Supplier name or trademarkNEXENTIRE
Tyre type identifier583155
Tyre size designation215/75R16C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classA
External rolling noise value69
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/09/2020

16’’ steel wheels

Tyre info

Supplier name or trademarkContinental
Tyre type identifier481740
Tyre size designation215/75 R 16 C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/04/2020
Load versionSL
Supplier name or trademarkNEXENTIRE
Tyre type identifier583155
Tyre size designation215/75R16C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classA
External rolling noise value69
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/09/2020
Skip to spin container

Upholstery

Skip to spin container

Packs

Interior
Comfort
  • Smart Tacho
    Smart Tacho 2 extras
    Digital tachometer

    Overhead storage

Storage
  • Smart Tacho
    Smart Tacho 2 extras
    Digital tachometer

    Overhead storage

No extras were found
Skip to spin container
£34,798.67 (Excl. VAT)
Summary
Get a quote

Summary

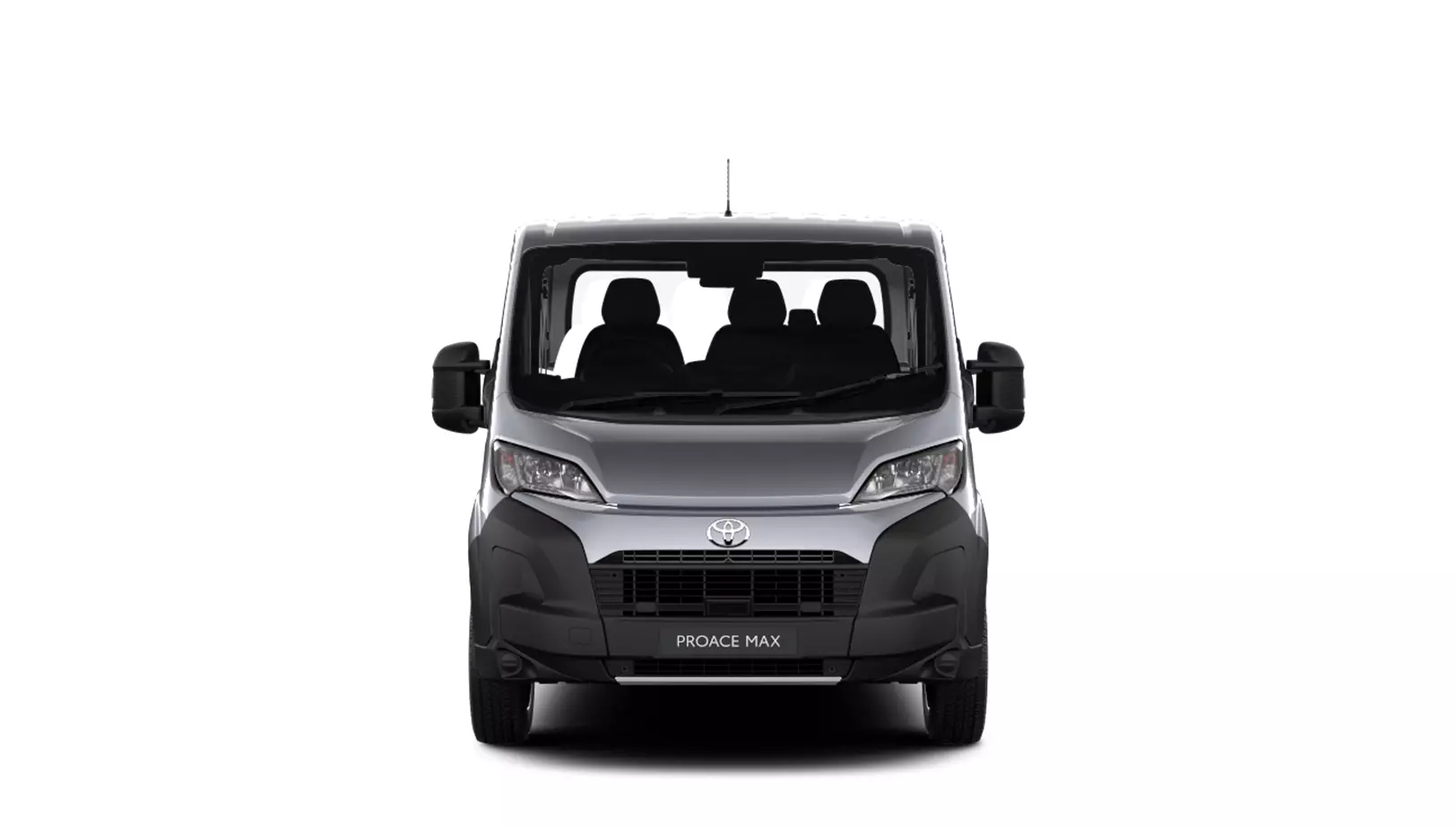

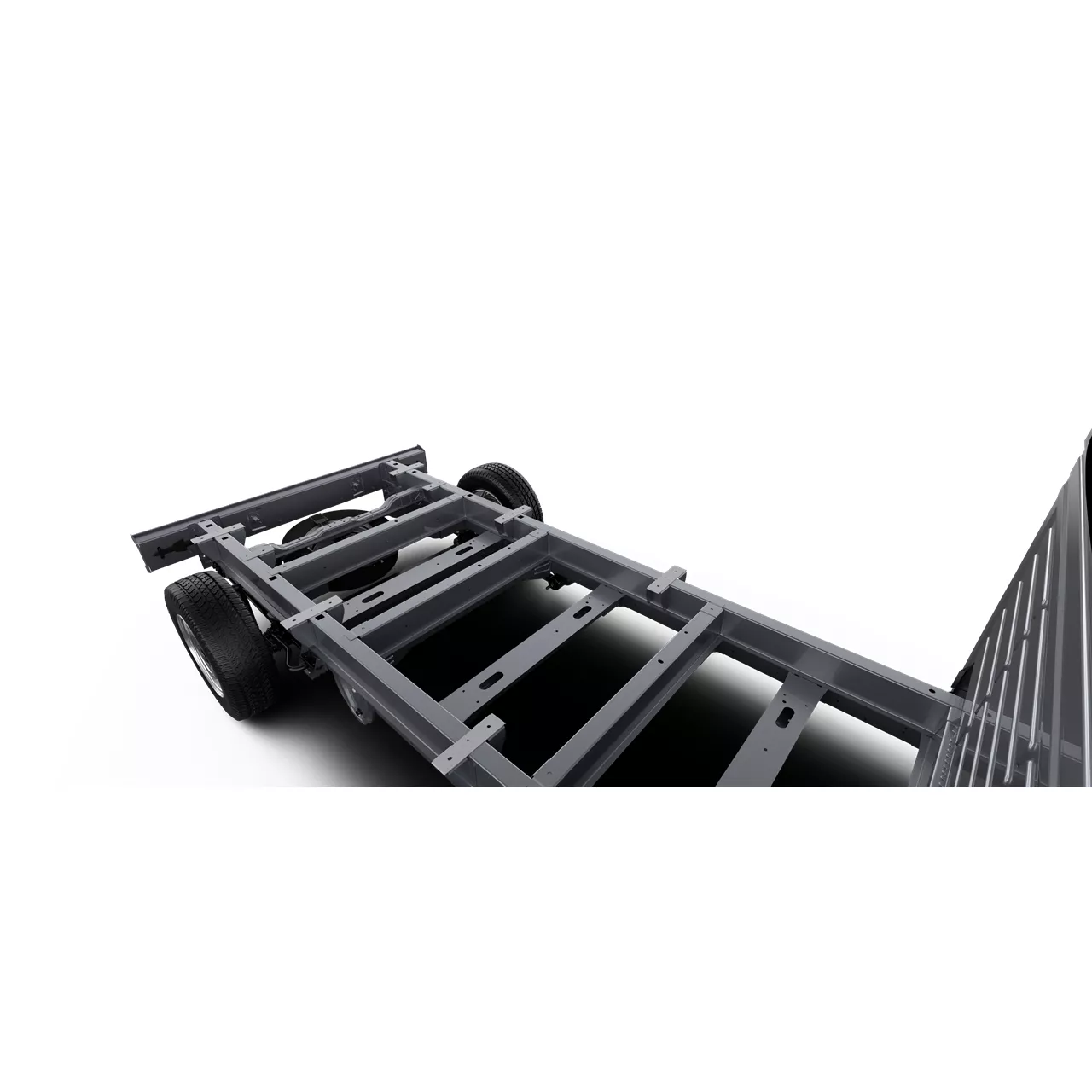

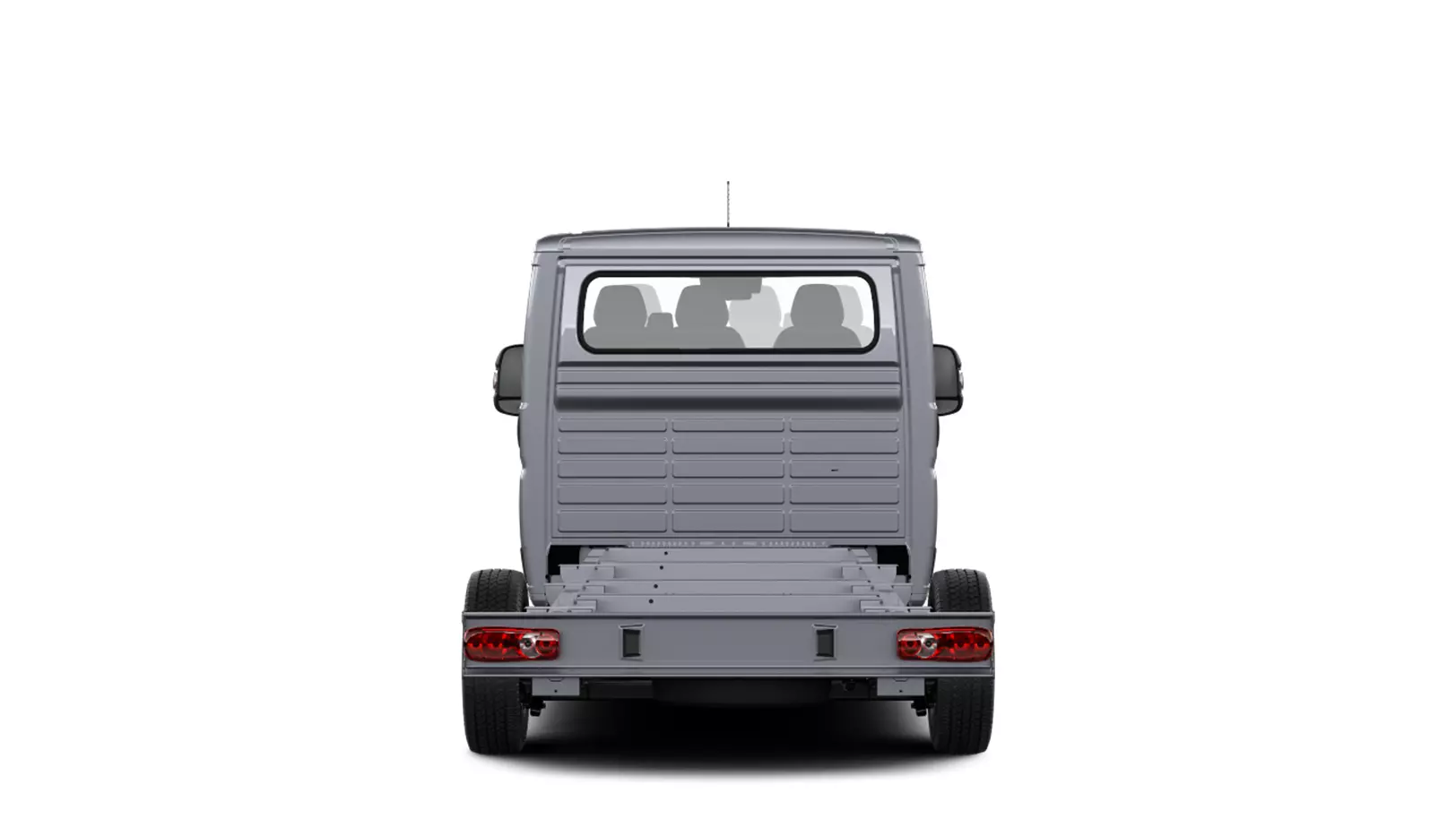

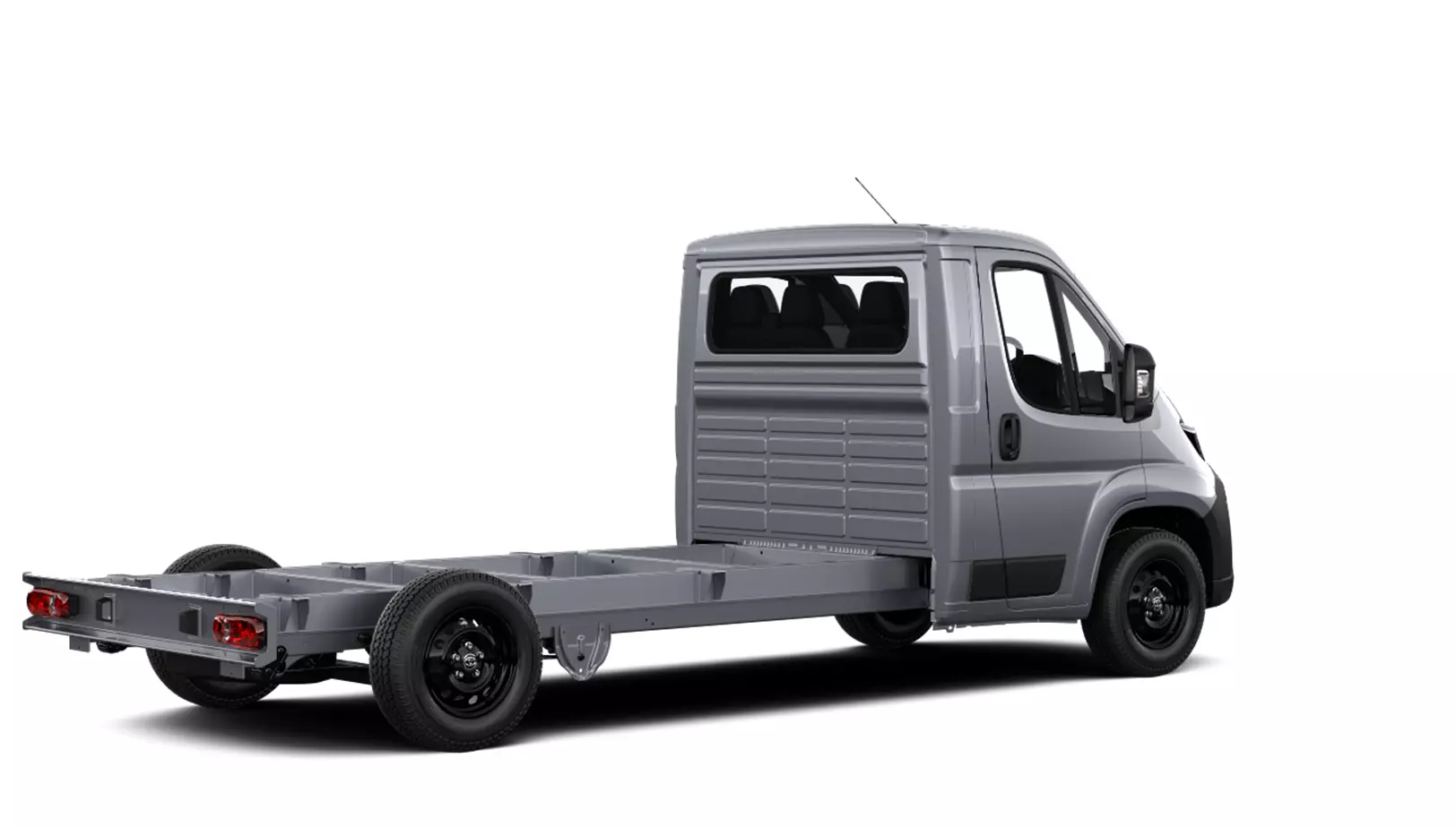

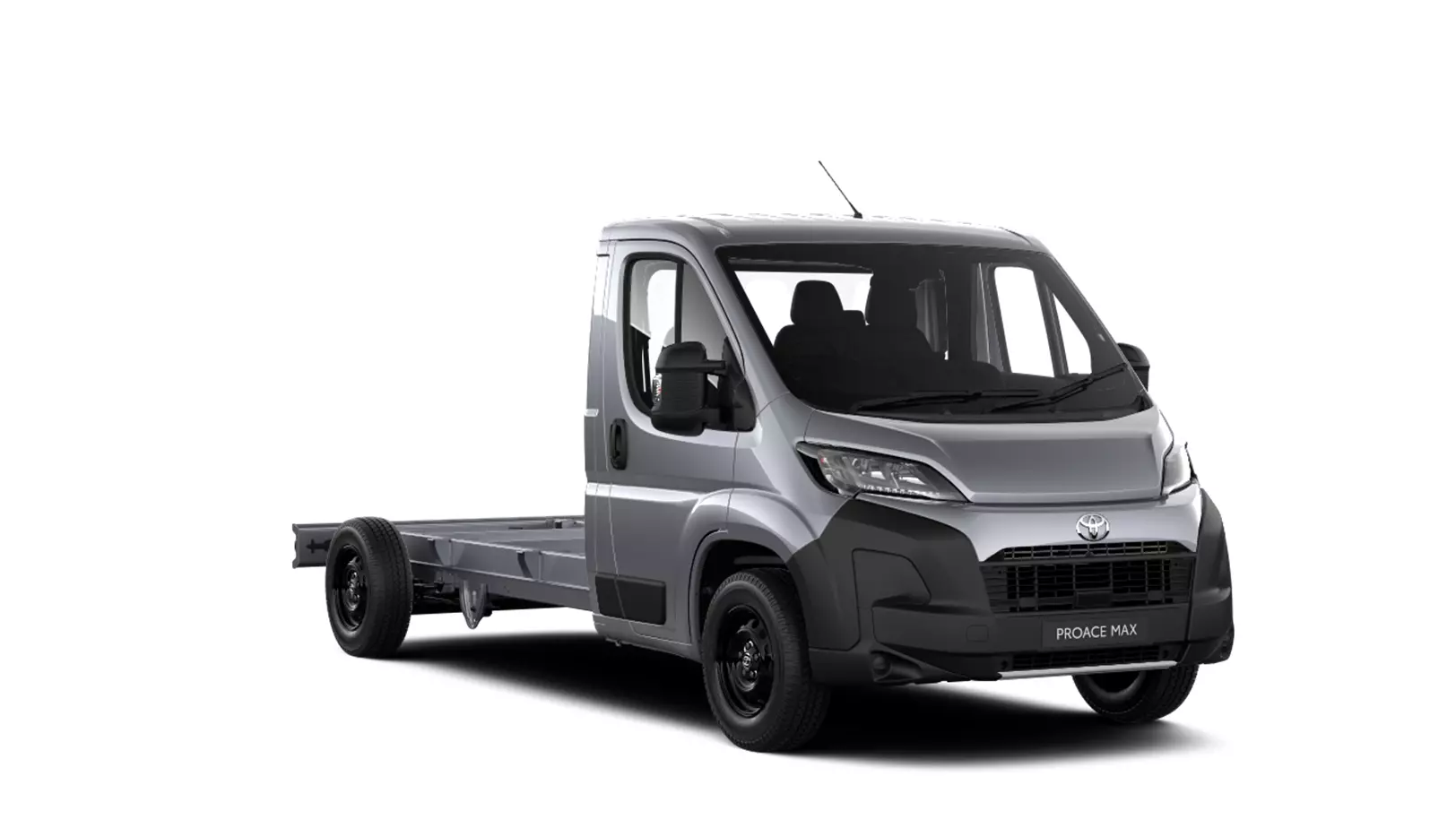

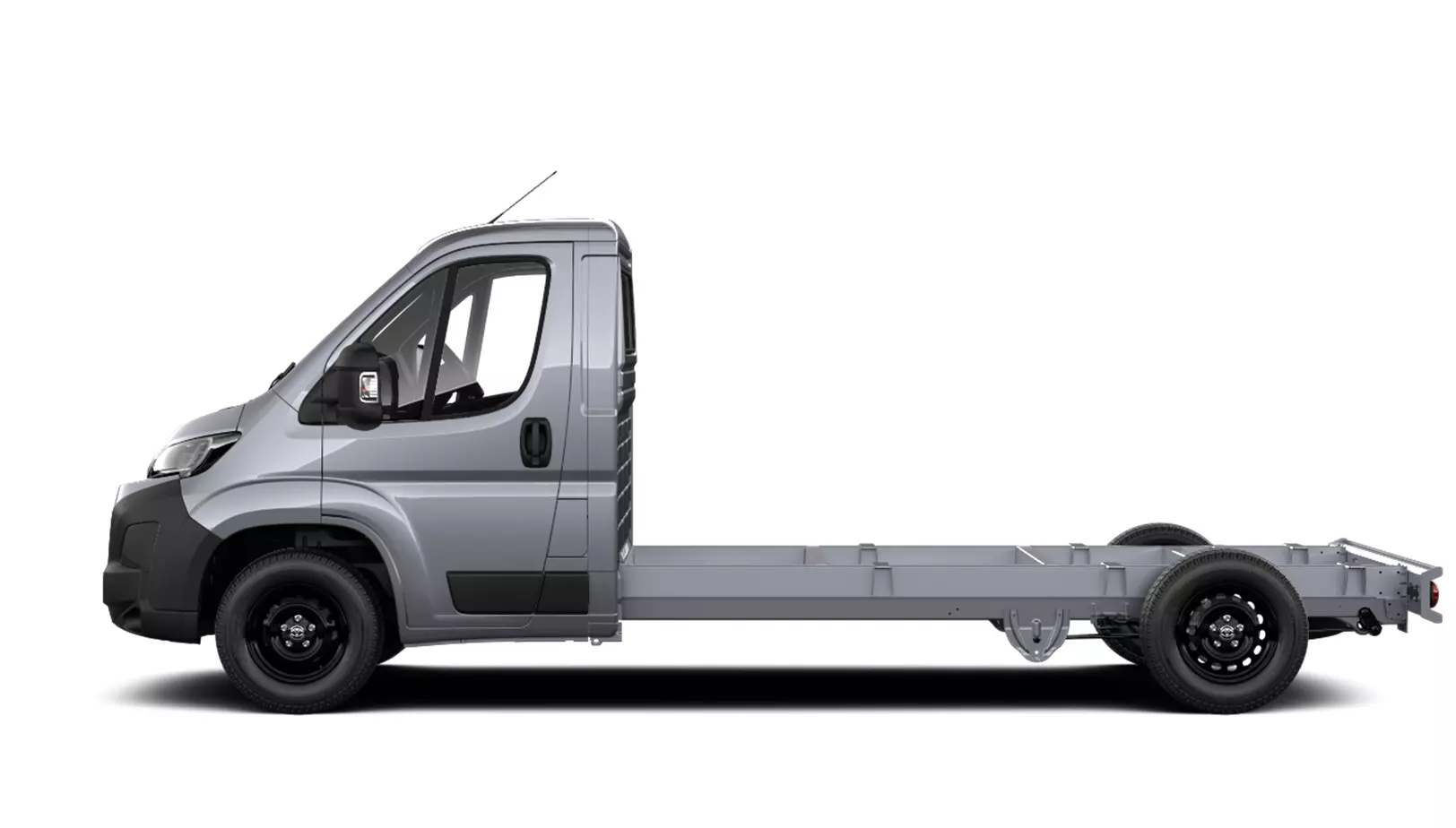

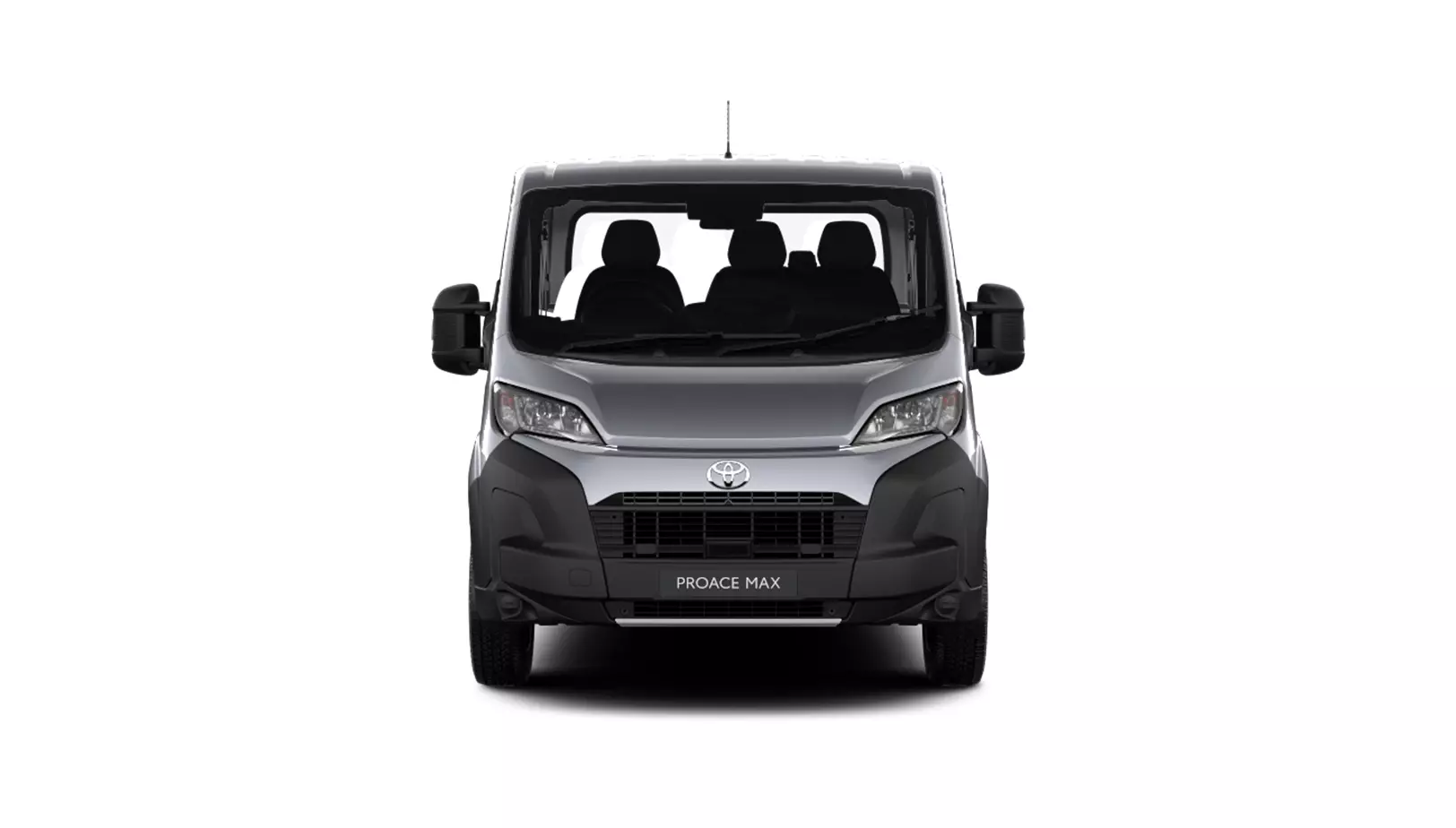

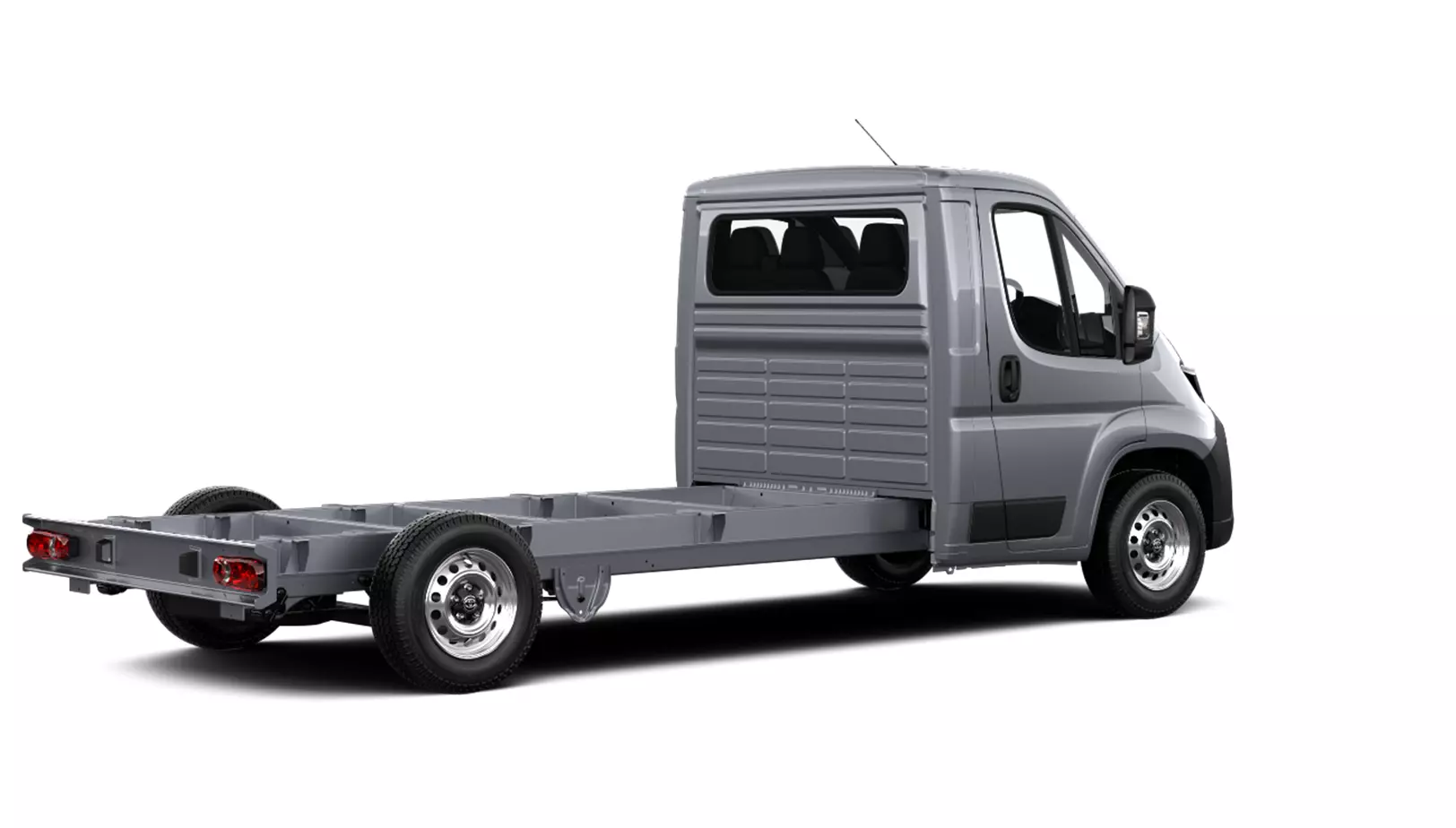

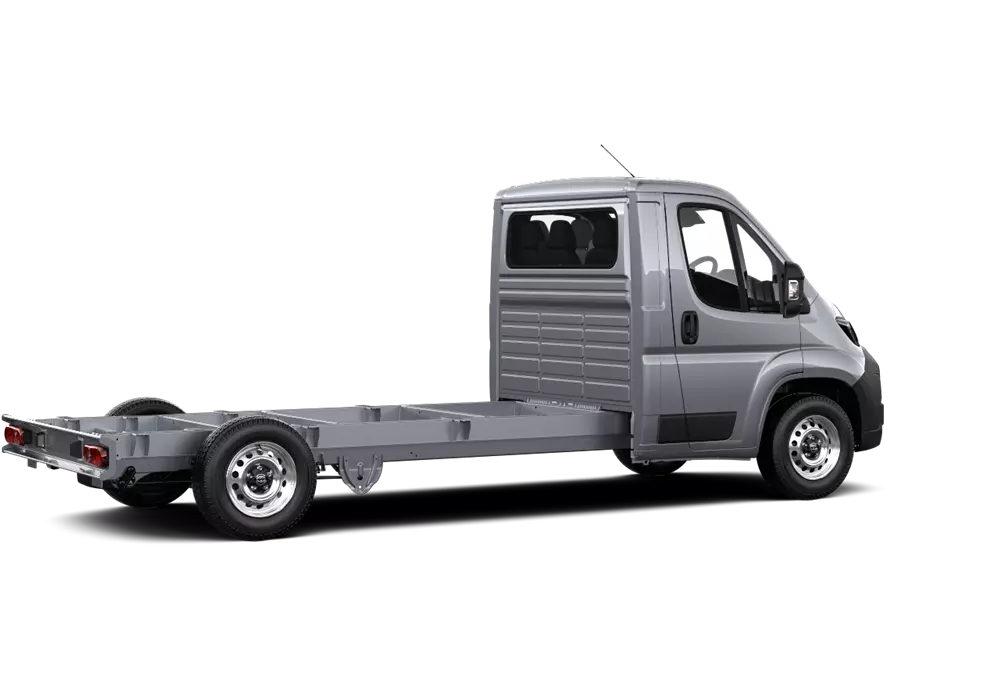

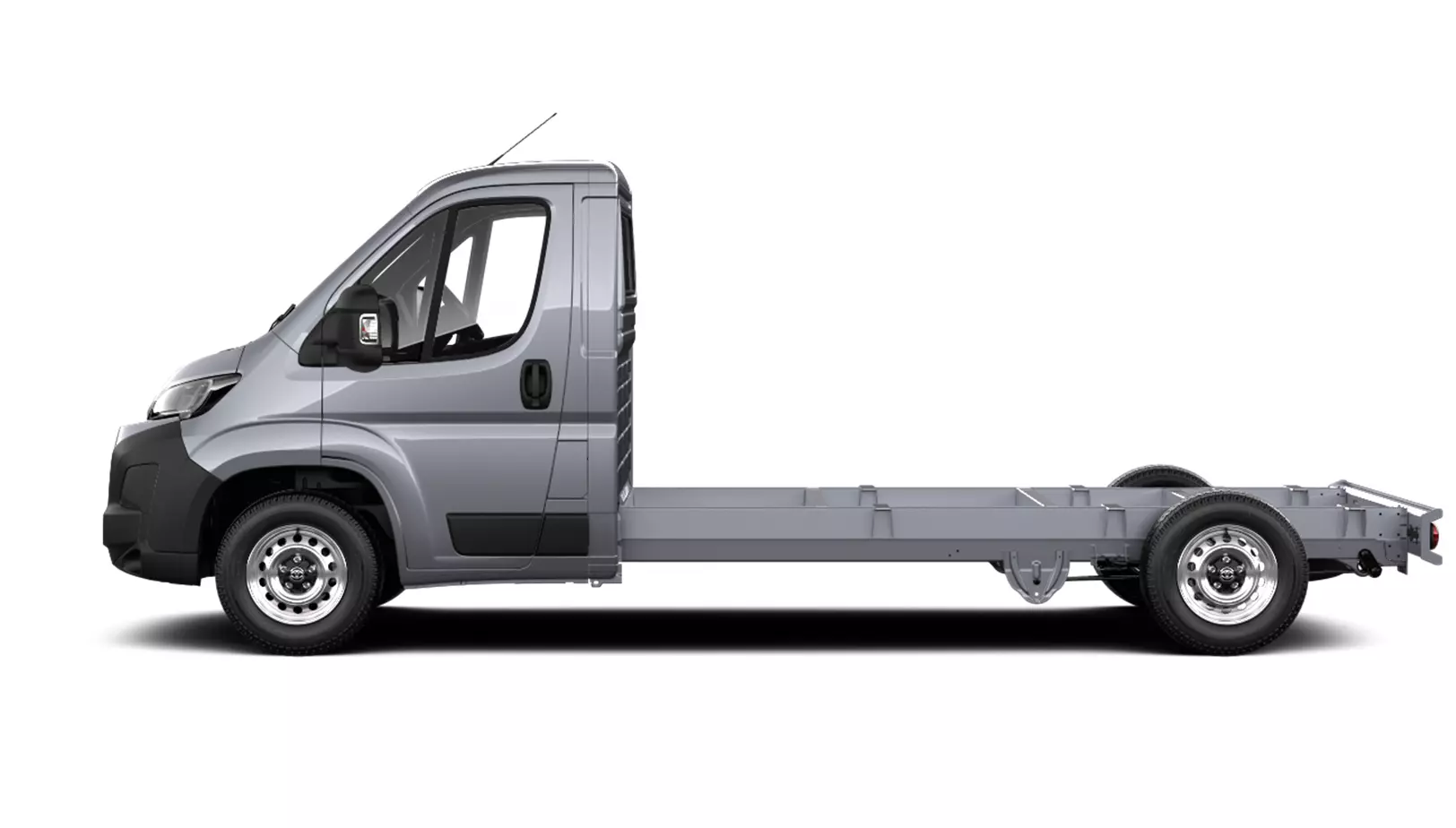

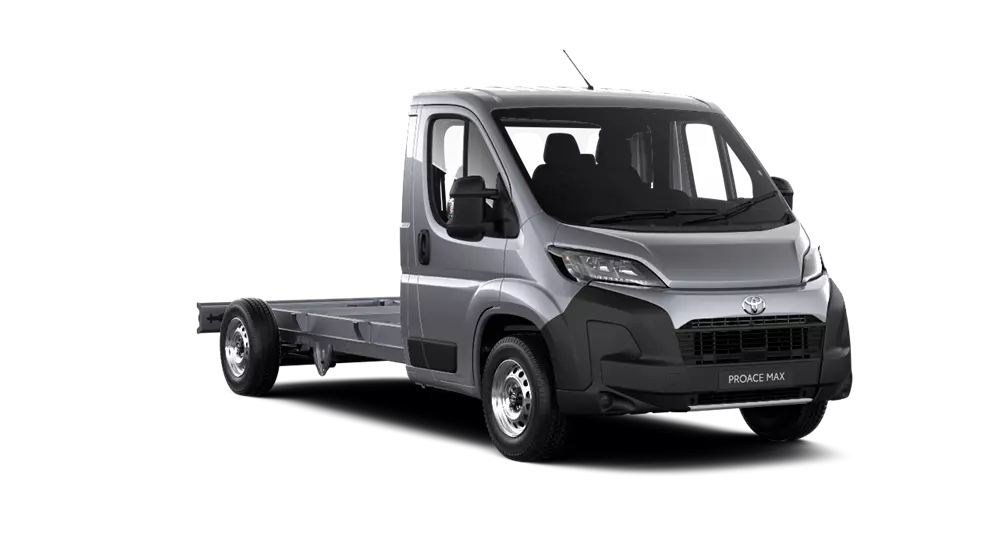

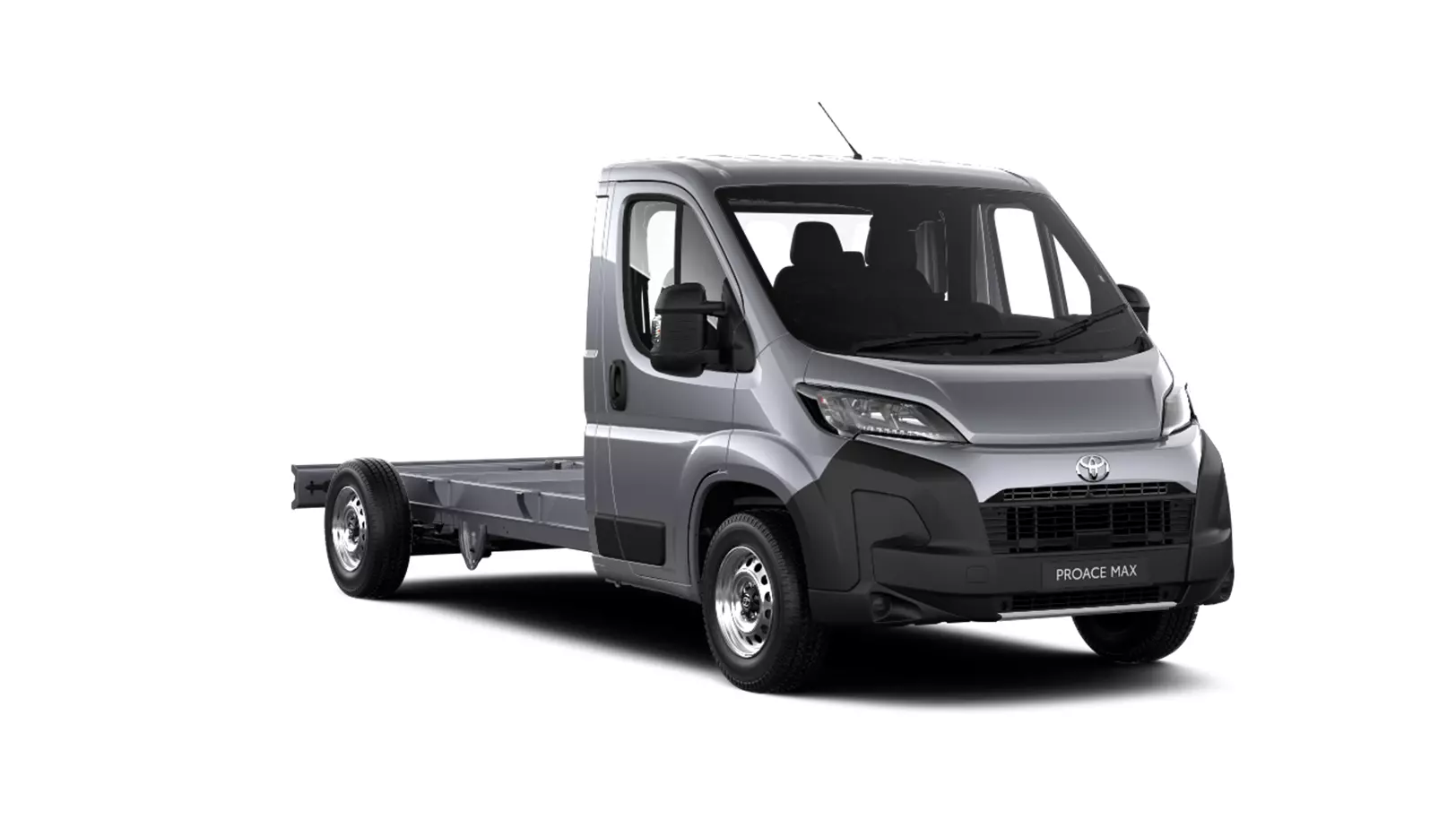

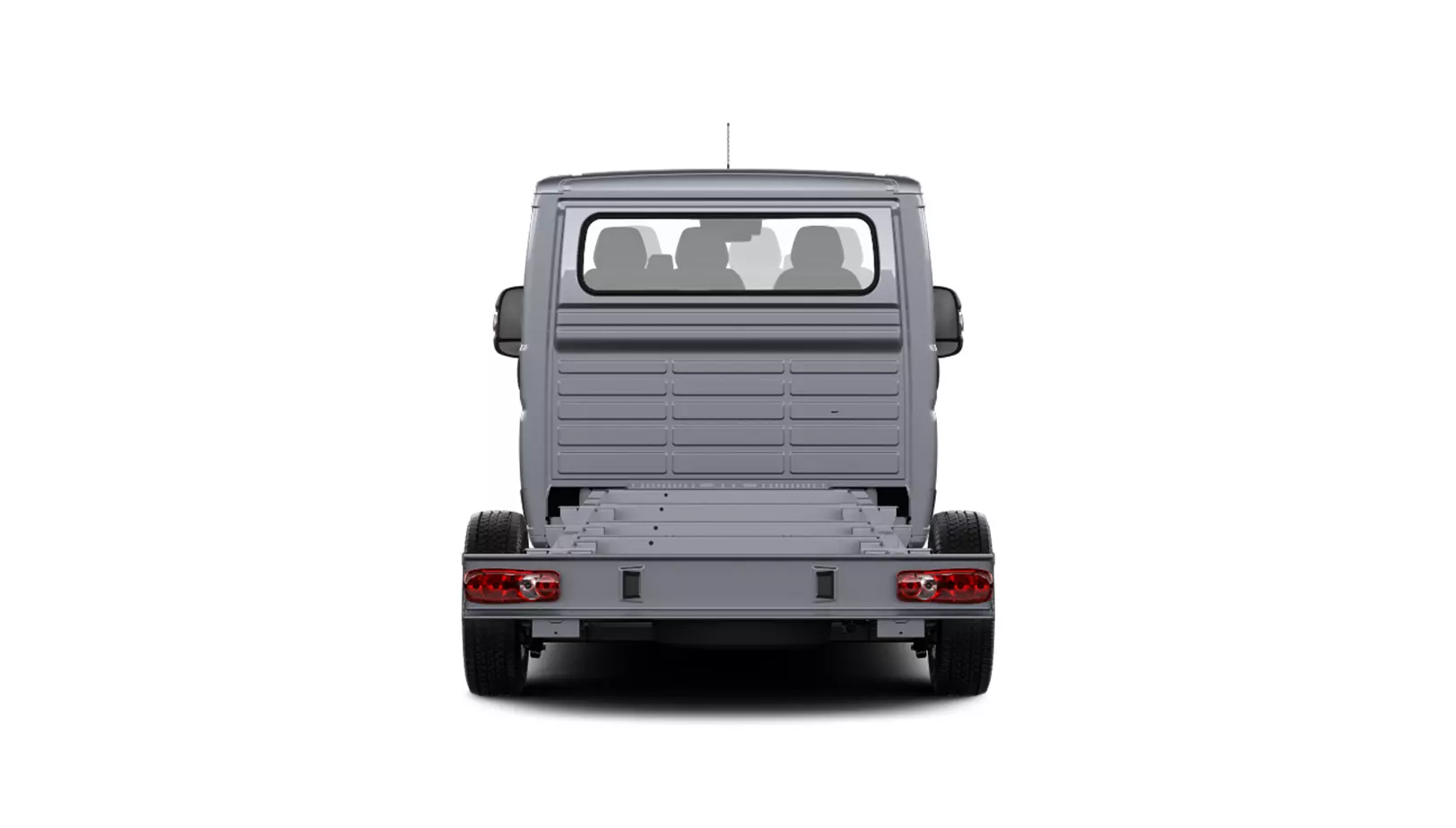

Proace Max Chassis Cab

Starting price
£33,128.33 (Excl. VAT)

  • Engine

    Front Wheel Drive - FWD
    2.2 Diesel (140 hp), Manual

  • Colour

    • Silver Shadow (Metallic Paint)

      Metallic

      + £566.67 (Excl. VAT)

  • Wheels

    • 16" Steel wheels

      Included

  • Upholstery

    • Black fabric (BTFX)

      Included

  • Packs & Extras

Other Costs

Tax and Costs

Includes 1st Year VED based on CO2 emissions of 262 g/km

£360.00

Delivery fee
£667.00
License plate fee
£21.67
Registration fee
£55.00

  • Part Exchange

    Use the value of your current vehicle towards the cost of your new Toyota. For an instant quote, all we need is your registration, mileage and a few details about its condition.

Specifications

Technical specifications

Engine

  • Displacement (cc)

    2184 cc

  • Bore x Stroke (mm x mm)

    83.8 x 99 mm

  • Compression Ratio

    15.5:1

  • Engine Layout & Number Of Cylinders

    4 cylinder, in line

  • Maximum Output (DIN hp)

    140 DIN hp

  • Maximum Output (kW@rpm)

    103 kW@rpm

  • Maximum Torque (Nm@rpm)

    350/1400-2500 Nm

Transmission

  • Transmission Type

    Manual

  • Drive

    FWD

Performance

  • Maximum Speed (mph)

    96 mph

Suspension

  • Suspension Front

    Independent, MacPherson type (wishbones, coil springs, telescopic shock absorbers & anti-roll bar)

  • Suspension Rear

    Rigid tubular axle(parabolic longitudinal leaf springs,telesc. shock absorbers,flexible side buffers

Brakes

  • Brakes Front

    Disc

  • Brakes Rear

    Disc

Weights & Towing Capacity

  • Gross Train Weight - Total (kg)

    6500 kg

  • Gross Vehicle Weight (kg)

    3500 kg

  • Kerb Weight / Unladen Weight (kg)

    1825-1992 kg

  • Maximum Trailer Weight - Braked (kg)

    3000 kg

  • Maximum Trailer Weight - Unbraked (kg)

    750 kg

  • Gross Vehicle Weight - Front (kg)

    2100 kg

  • Gross Vehicle Weight - Rear (kg)

    2400 kg

Exterior dimensions

  • Exterior Length (mm)

    5943 mm

  • Exterior Width (mm)

    2050 mm

  • Exterior Height (mm)

    2254 mm

  • Front Tread (mm)

    1810 mm

  • Rear Tread (mm)

    1790 mm

  • Overhang Front (mm)

    948 mm

  • Overhang Rear (mm)

    960 mm

  • Wheelbase (mm)

    4035 mm

Interior dimensions

  • Number of Seats

    3 seats

Exterior

Wheels

  • Black small centre caps

  • Full size Temporary spare wheel

Styling

  • Black front bumper

  • Black painted upper front grill

  • Roof antenna

  • Privacy Glass - 30% (Smoke tint)

Comfort

  • Auto headlights

  • Power-adjustable door mirrors

  • Electric heated door mirrors

  • Manually retractable door mirrors

  • Standard arm door mirrors

Storage

  • Electric converter box

  • Rear harness for extended transformation - non-standard cable for conversion

Protection

  • Black protection moulding on side doors

Safety

  • Anti-tamper alarm

  • Automatic High Beam (AHB)

  • Cruise Control

  • Driver Attention Alert

  • eCall emergency call system

  • Glass-breaking alarm sensors

  • Hill-start Assist Control (HAC)

  • Intrusion Alarm

  • Lane Departure Alert (LDA) with Steering Control

  • Lane Trace Assist (LTA)

  • Pre-disposition for rear-view camera

  • Motion sensor alarm

  • Pre-Collision System with Pedestrian and Cyclist Detection

  • Projector halogen headlights

  • Rear combination lights

  • Spare wheel carrier (under body)

  • Tyre Pressure Warning System (TPWS)

  • Vehicle Stability Control Plus (VSC+)

  • Road Sign Assist (RSA)

  • Intelligent Speed Assist

  • Pre-disposition for breathalyser engine lock

  • Safety Data Recording

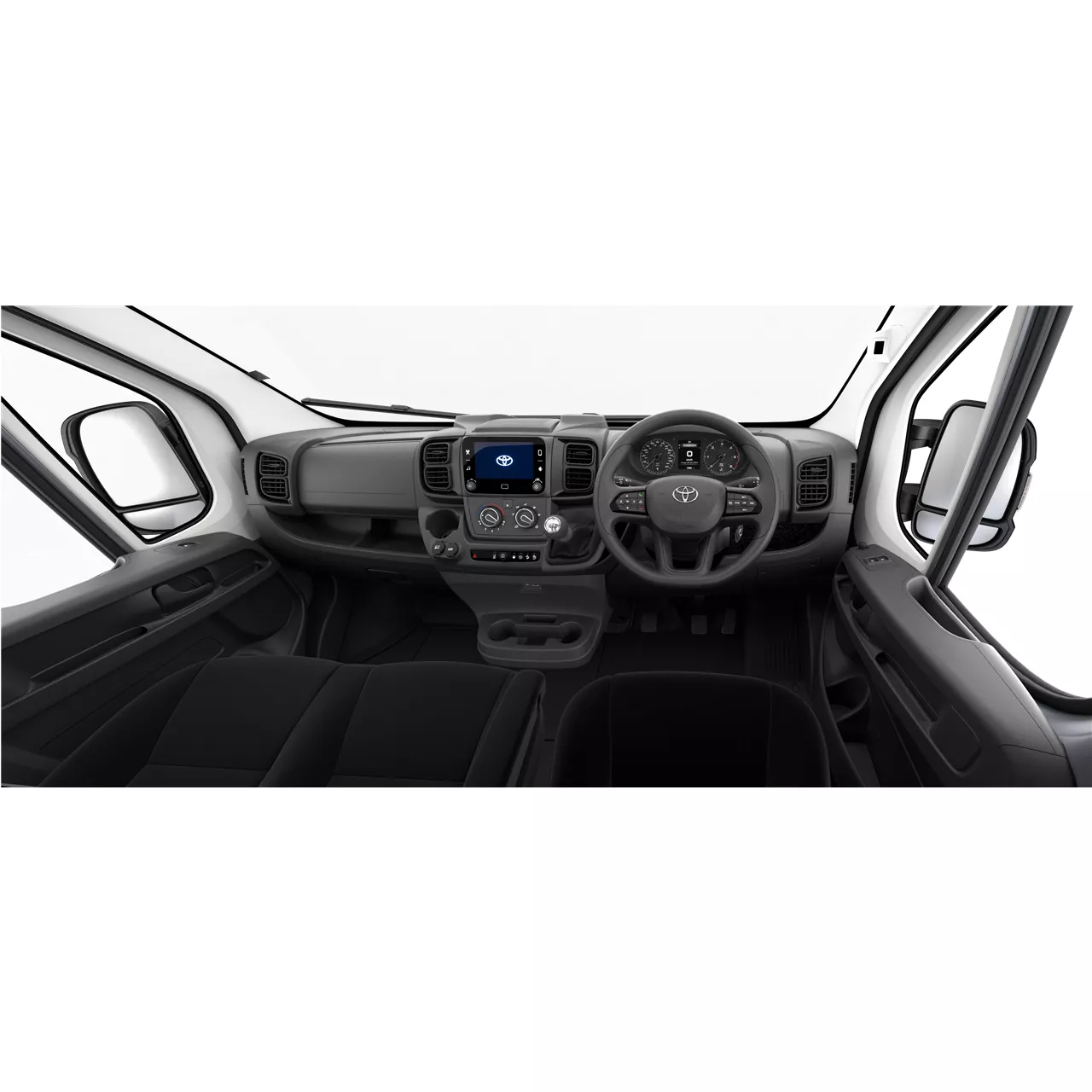

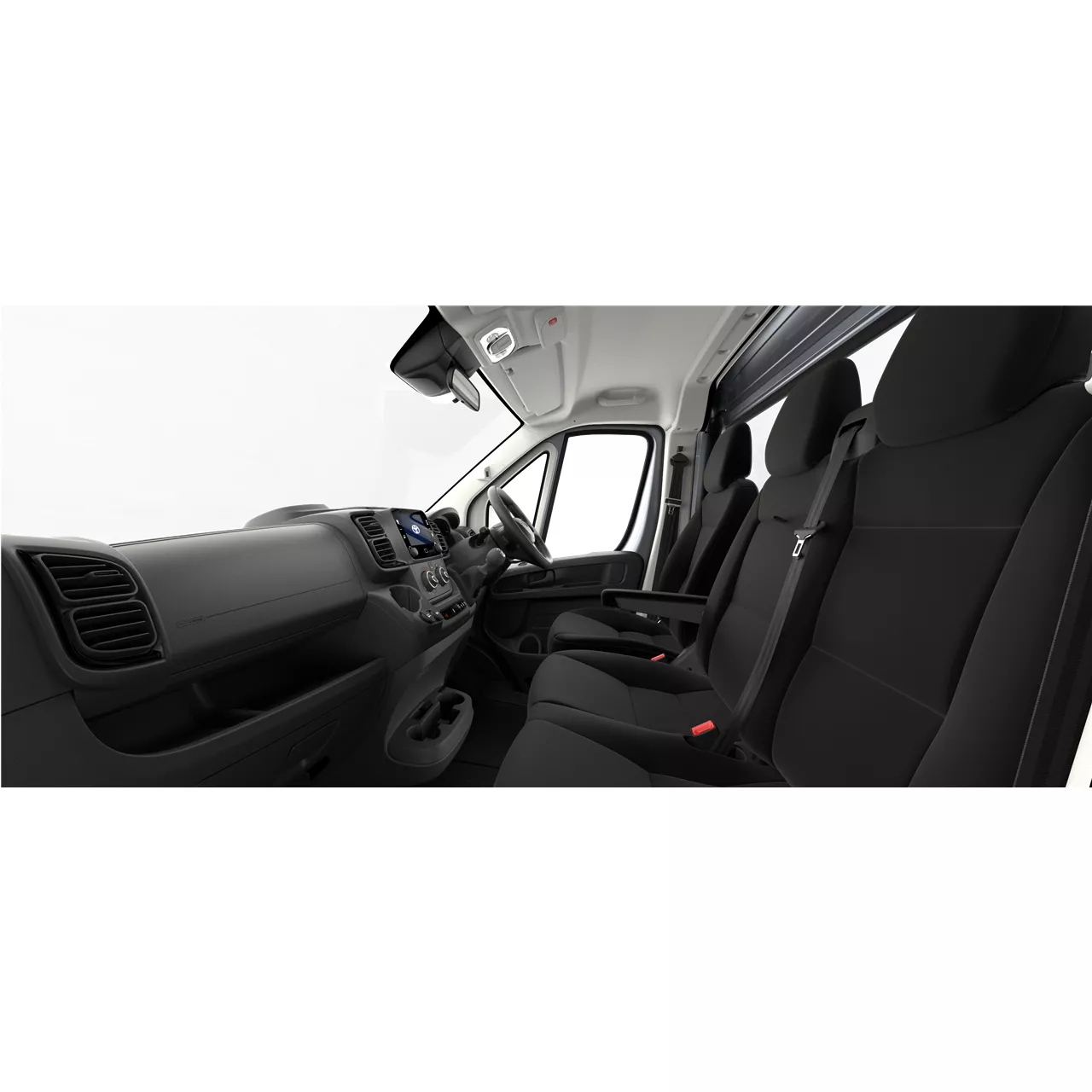

Interior

Multimedia

  • 4 speakers

  • 7" Pro Touch® multimedia system

  • Bluetooth® Connectivity

  • Digital Audio Broadcast (DAB)+

  • Radio

Styling

  • Black centre air vents

Comfort

  • Audio switches on steering wheel

  • Boot light

  • Lane Departure Alert (LDA) switch on lower driver dashboard

  • Manual air conditioning

  • Manual day/night rear-view mirror

  • Manually adjustable lumbar support on driver seat

  • Monochrome multi-information display

  • Driver and 2-seat bench

  • Speedometer (mph)

  • Telephone switches on steering wheel

  • Without

  • 3.5" multi-information screen

  • Deadlock on rear doors

Storage

  • Without

  • Front cup holders (4)

  • Closed single cabin

Safety

  • Front seat belt reminder

  • Handbrake

  • Rear seat belt reminder

  • Driver & passenger front airbag

Environmental Performance

  • WLTP CO2

    262 - 306 g/km

  • Fuel Economy

    24.3 - 28.2 mpg

  • Fuel Economy - Combined WLTP (l/100km)

    10 l/100 km

  • Carbon Monoxide, CO (mg/km)

    31 mg/km

  • Hydrocarbons, THC & Nitrogen Oxides, NOx (mg/km)

    48.7 mg/km

  • Nitrogen Oxides, NOx (mg/km)

    46.4 mg/km

  • Sound Level Drive By (dB(A))

    71.0 dB(A)

  • Euro Class

    EURO 6 EB

  • Total

    £34,798.67 (Excl. VAT)
