Configure your Proace Max Icon Ply Lining

Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

Engine

All-Electric

110kWh Battery & 205kW Motor (278hp), Automatic

CO2 Combined - WLTP (g/km)
0 g/km

Fuel Economy - Combined WLTP (mpg)
0 mpg

Fuel Economy - Combined WLTP (l/100km)
0 l/100 km

10-80% Charging Time (mins) DC Charger
55 mins (approx)

£50,803.33 (Excl. VAT)

110kWh Battery & 205kW Motor (278hp)

All-Electric

110kWh Battery & 205kW Motor (278hp), Automatic

CO2 Combined WLTP - Max (g/km)0 g/km
CO2 Combined - WLTP (g/km)0 g/km
Fuel Economy - Combined WLTP (mpg)0 mpg
Fuel Economy - Combined Min WLTP (mpg)0 mpg
Fuel Economy - Combined WLTP (l/100km)0 l/100 km
Battery electric vehicle requiring mains electricity for charging. Indicative charge time, for comparison purposes. Actual charging times may vary depending on various factors, including the selected vehicle (and battery option, if available), the age, type, condition and temperature of the charging unit and the battery, the starting charge, the power supply to and usage of the charger and the environmental conditions at the point of use. These figures may not reflect your real life driving results.  Charge times will be longer in colder weather and if battery temperature activates safeguarding technology. 150kW+ chargers are available in mainland Great Britain primarily on major arterial routes – see Zap Map for details. They are not yet available in Northern Ireland and availability is limited in Scotland, Wales and in rural areas.

2.2 Diesel (140 hp), Manual

CO2 Combined - WLTP (g/km)
206 g/km

Fuel Economy - Combined WLTP (mpg)
35.7 mpg

Fuel Economy - Combined WLTP (l/100km)
7.9 l/100 km

£35,670.00 (Excl. VAT)

2.2 Diesel (140 hp)

2.2 Diesel (140 hp), Manual

CO2 Combined WLTP - Max (g/km)243 g/km
CO2 Combined - WLTP (g/km)206 g/km
Fuel Economy - Combined WLTP (mpg)35.7 mpg
Fuel Economy - Combined Min WLTP (mpg)30.3 mpg
Fuel Economy - Combined WLTP (l/100km)7.9 l/100 km
Figures are provided for comparability purposes; only compare fuel consumption and CO₂ figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the accessories fitted (post-registration), variations in weather, driving styles and vehicle load.

2.2 Diesel (140 hp), Automatic

CO2 Combined - WLTP (g/km)
227 g/km

Fuel Economy - Combined WLTP (mpg)
32.8 - 32.4 mpg

Fuel Economy - Combined WLTP (l/100km)
8.6 - 8.7 l/100 km

£38,670.00 (Excl. VAT)

2.2 Diesel (140 hp)

2.2 Diesel (140 hp), Automatic

CO2 Combined WLTP - Max (g/km)315 g/km
CO2 Combined - WLTP (g/km)227 g/km
Fuel Economy - Combined WLTP (mpg)32.8 - 32.4 mpg
Fuel Economy - Combined Min WLTP (mpg)23.5 mpg
Fuel Economy - Combined WLTP (l/100km)8.6 - 8.7 l/100 km
Figures are provided for comparability purposes; only compare fuel consumption and CO₂ figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the accessories fitted (post-registration), variations in weather, driving styles and vehicle load.
Skip to spin container

Colour

Skip to spin container

Wheels

16" Steel wheels

16" Steel wheels

Tyre info

Supplier name or trademarkContinental
Tyre type identifier481740
Tyre size designation215/75 R 16 C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/04/2020
Load versionSL
Supplier name or trademarkNEXENTIRE
Tyre type identifier583155
Tyre size designation215/75R16C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classA
External rolling noise value69
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/09/2020

16’’ steel wheels

Tyre info

Supplier name or trademarkContinental
Tyre type identifier481740
Tyre size designation215/75 R 16 C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/04/2020
Load versionSL
Supplier name or trademarkNEXENTIRE
Tyre type identifier583155
Tyre size designation215/75R16C
Load-capacity index116
Speed category symbolR
Fuel efficiency classA
Wet grip classA
External rolling noise classA
External rolling noise value69
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/09/2020
Skip to spin container

Upholstery

Skip to spin container

Packs

Exterior
Storage
  • Transformer Socket
    Transformer Socket 1 extras
    Electric converter box

No extras were found
Skip to spin container
£51,547.00 (Excl. VAT)
Summary
Get a quote

Summary

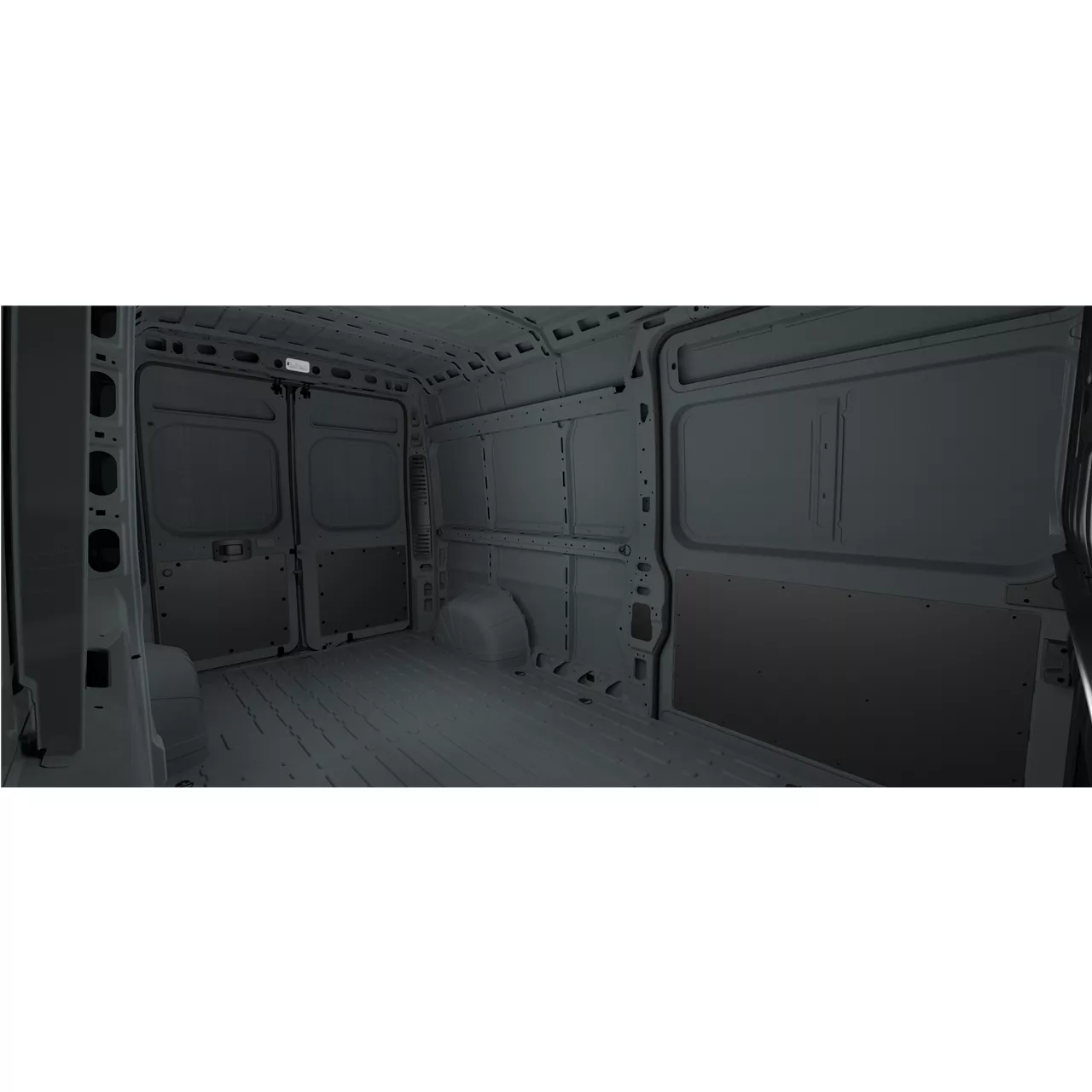

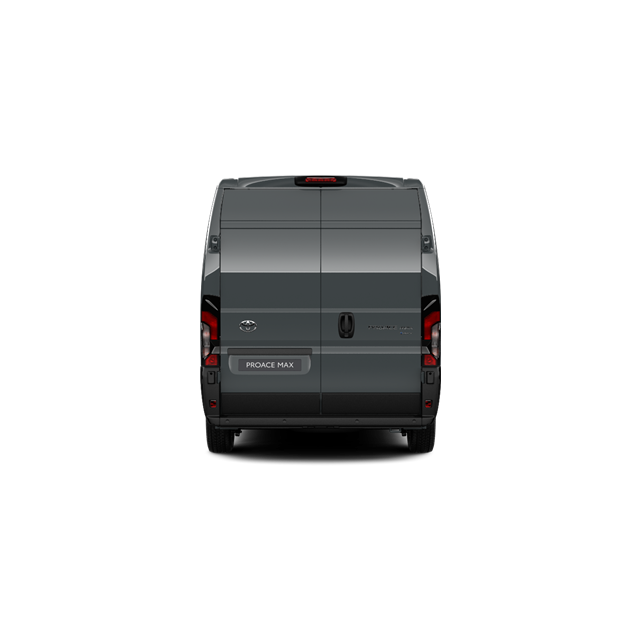

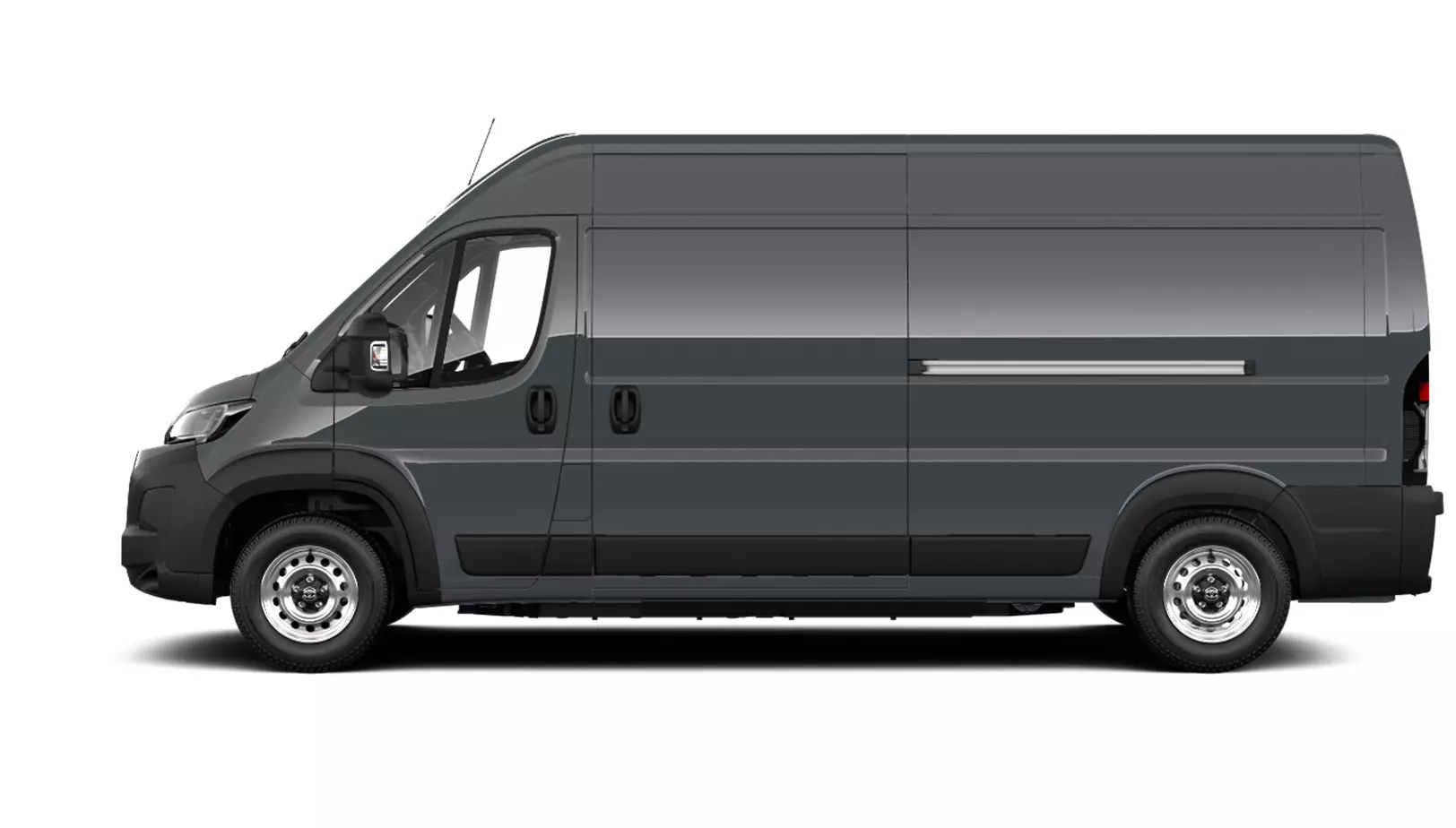

Proace Max Icon Ply Lining

Starting price
£50,803.33 (Excl. VAT)

  • Engine

    All-Electric

    Front Wheel Drive - FWD
    110kWh Battery & 205kW Motor (278hp), Automatic

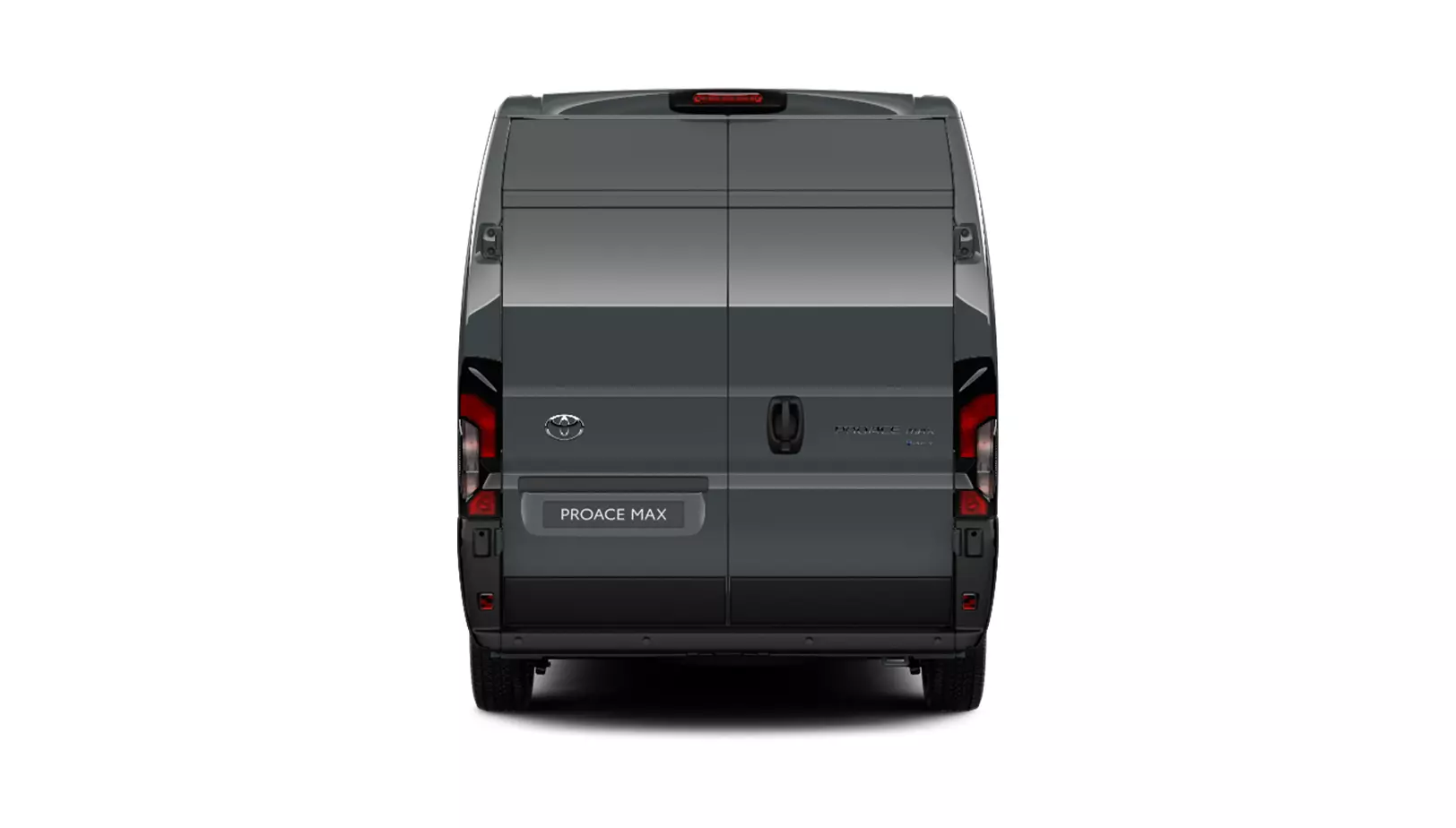

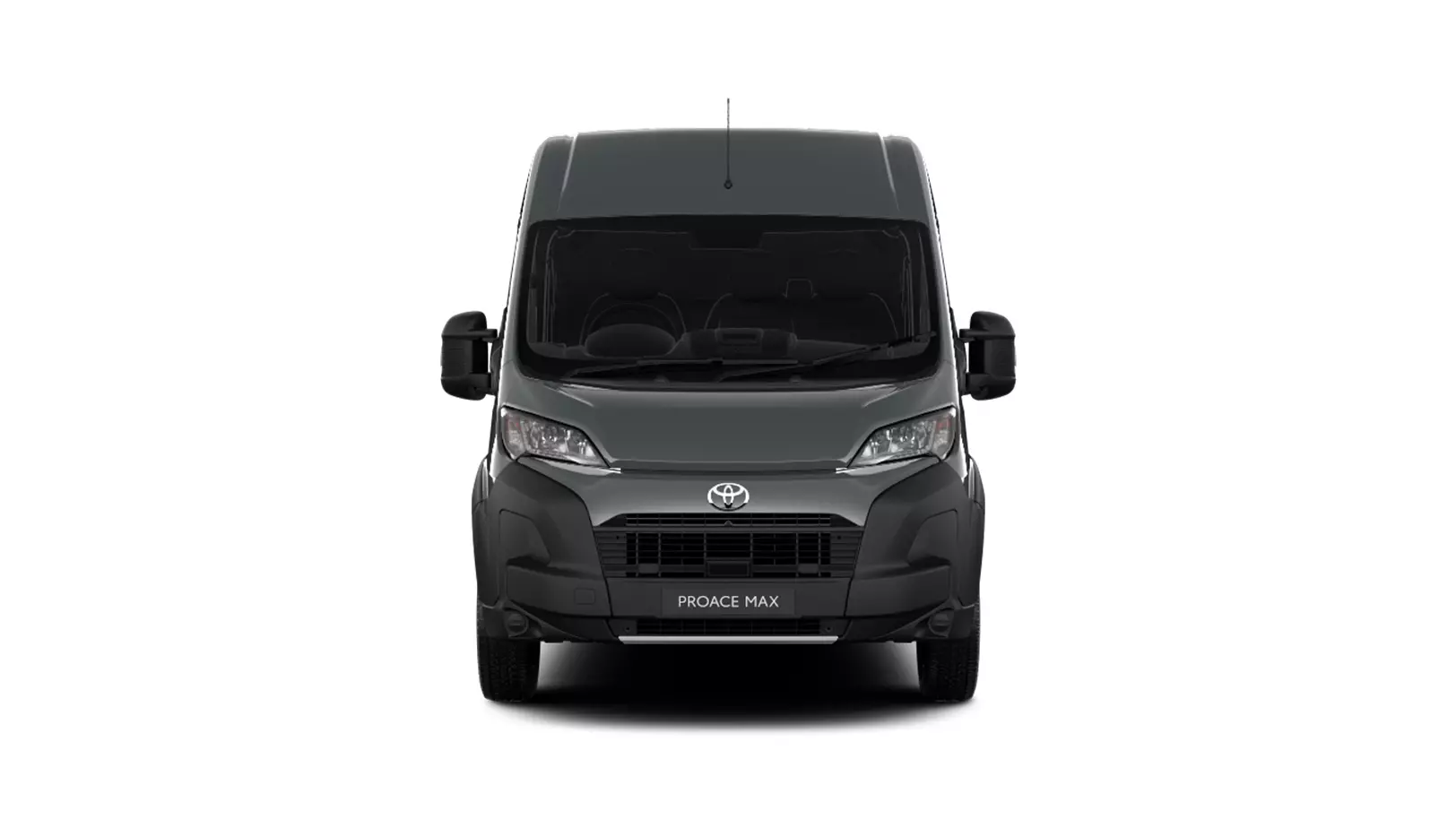

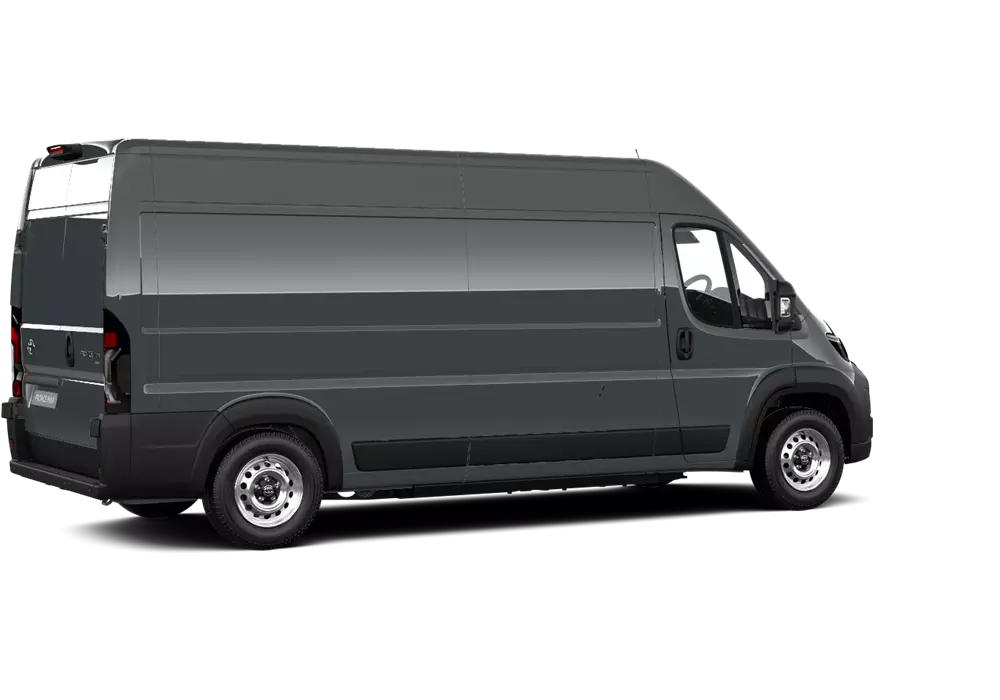

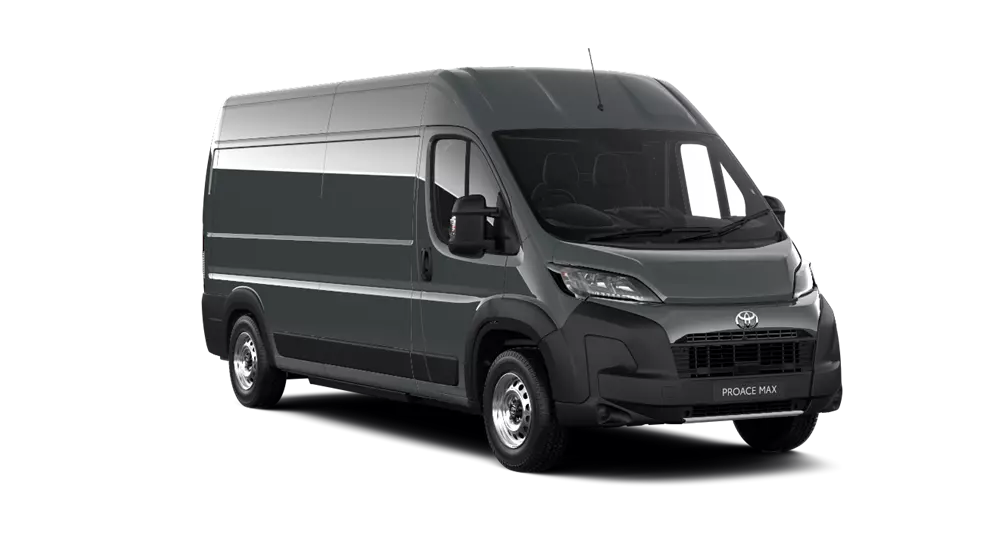

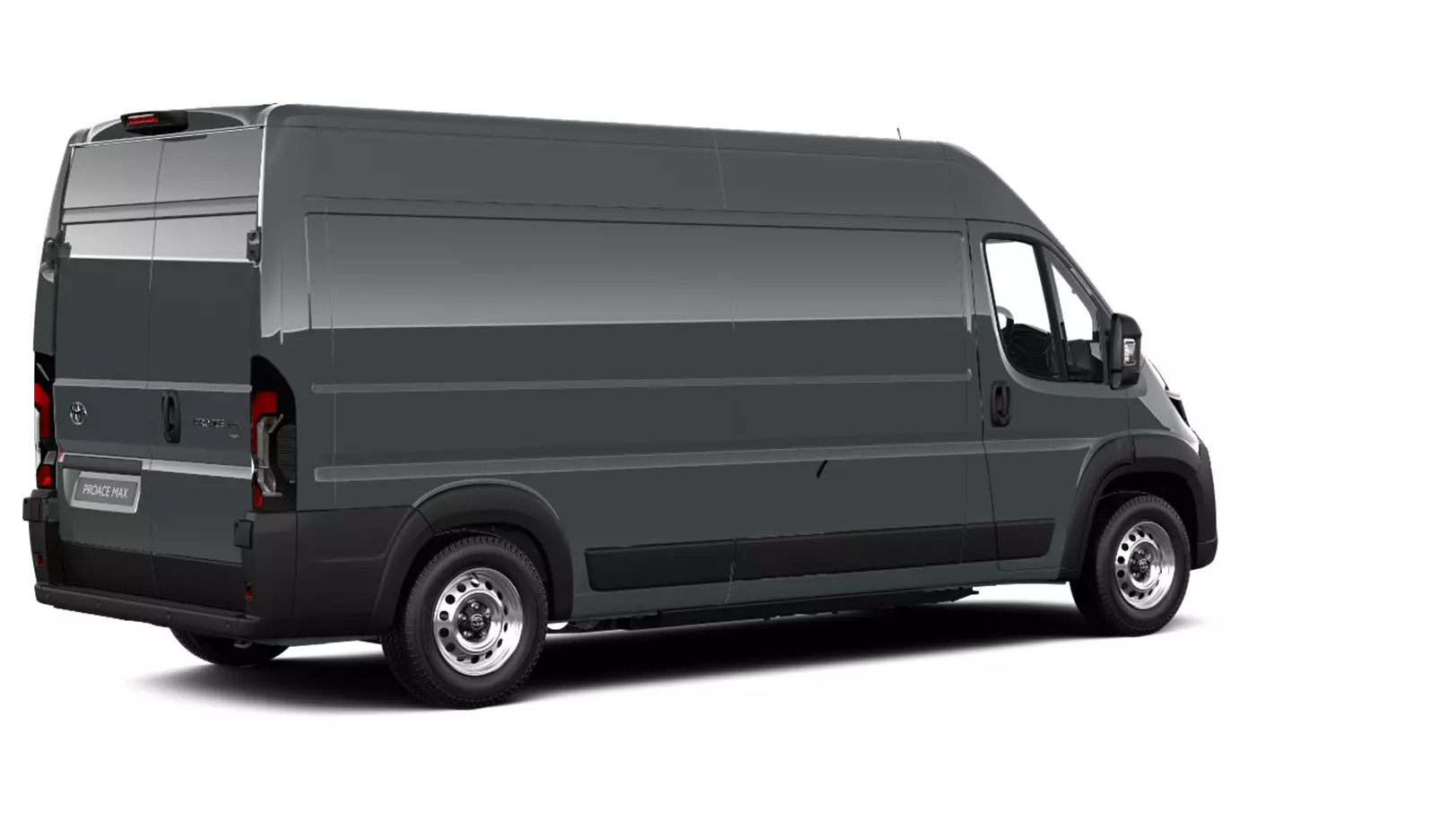

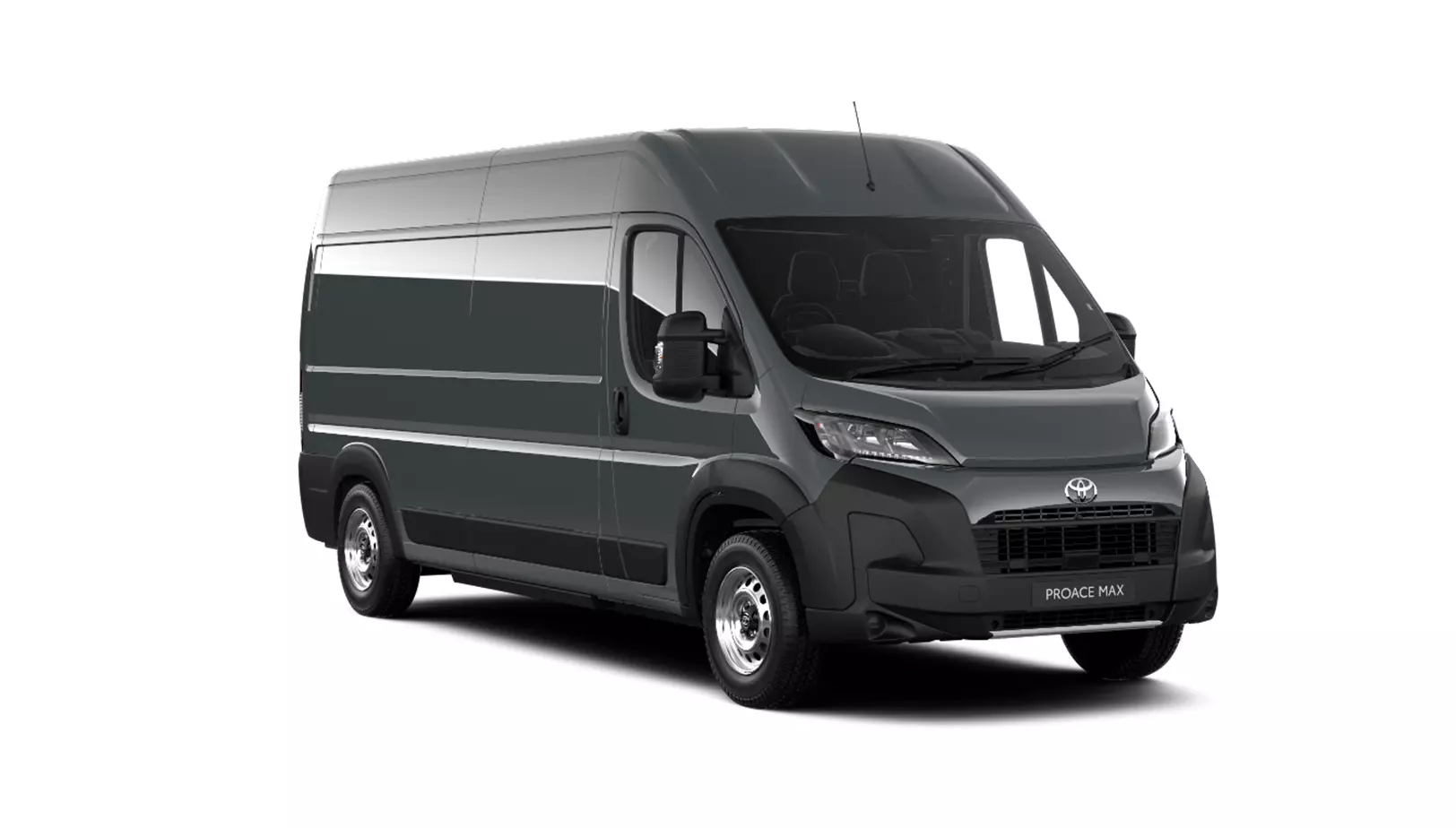

  • Colour

    • Anthracite (Solid Paint)

      Solid

      Included

  • Wheels

    • 16" Steel wheels

      Included

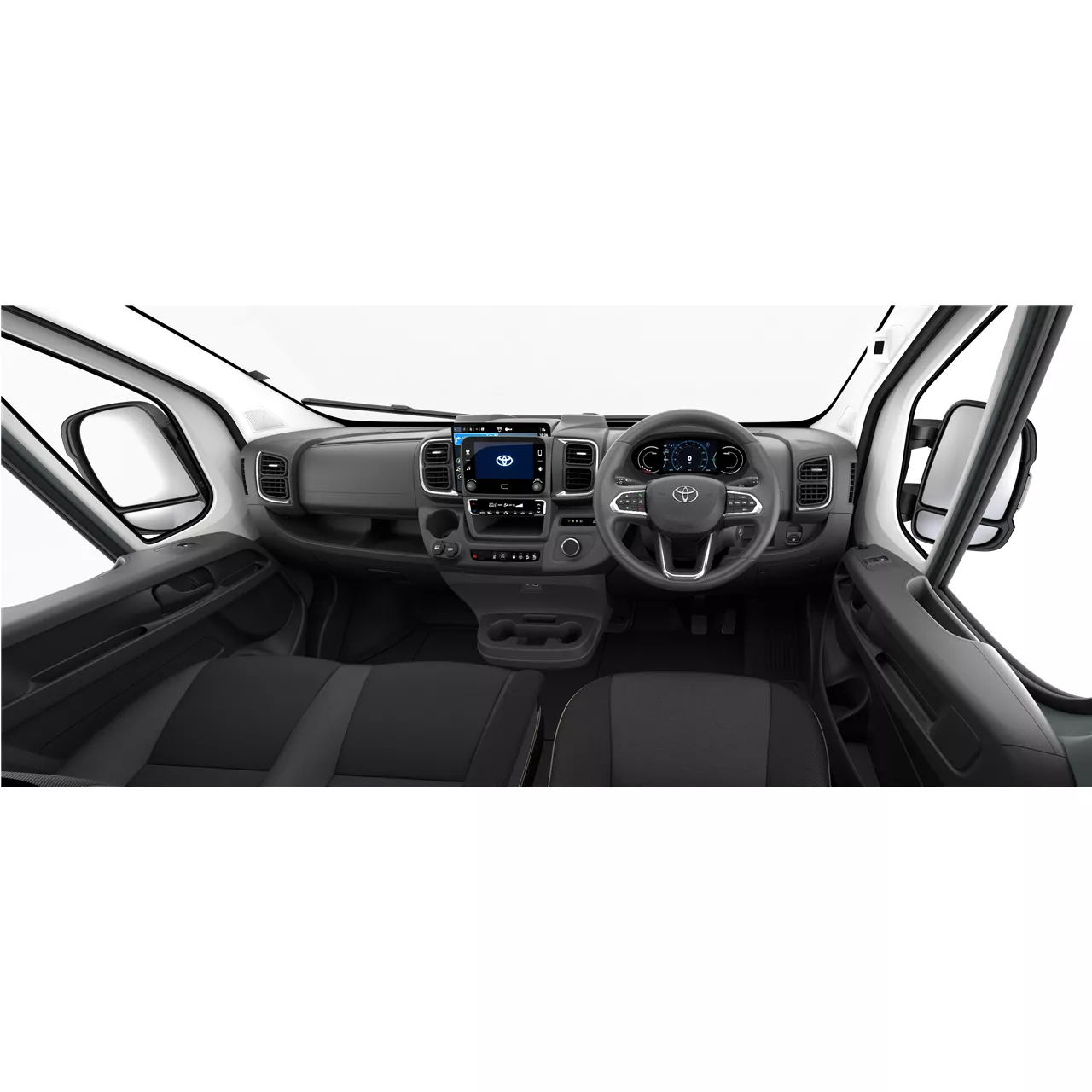

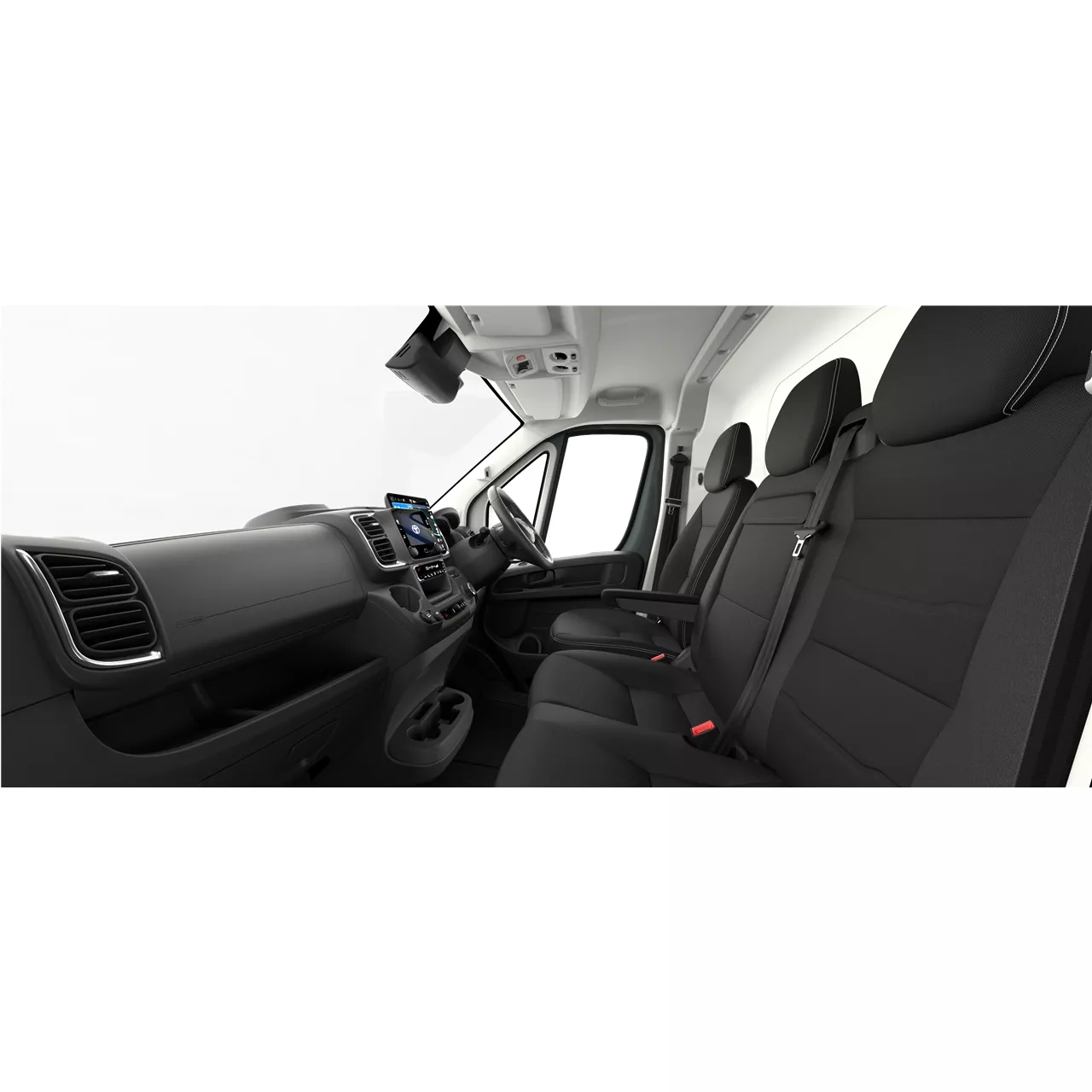

  • Upholstery

    • Black fabric (BUFX)

      Included

  • Packs & Extras

Other Costs

Tax and Costs

Includes 1st Year VED based on CO2 emissions of 0 g/km

£0.00

Immatruculation tax is calculated based on the region you live in. Please select your region to calculate the exact cost.

Delivery fee
£667.00
License plate fee
£21.67
Registration fee
£55.00

  • Part Exchange

    Use the value of your current vehicle towards the cost of your new Toyota. For an instant quote, all we need is your registration, mileage and a few details about its condition.

Specifications

Technical specifications

Engine

  • Total System Output (kW)

    205 kW

  • Maximum Output (DIN hp)

    270 DIN hp

  • Maximum Output (kW@rpm)

    205/ kW@rpm

  • Maximum Torque (Nm@rpm)

    410 Nm

  • Hybrid Vehicle Battery: Type

    Lithium-ion NMC Prismatic

  • Hybrid Vehicle Battery: Capacity Ah (hr)

    167 Ah

  • Hybrid Vehicle Battery: Number Of Modules

    15

  • Battery Capacity (Usable, kWh)

    97.8 kWh

  • 10-80% Charging Time (mins) DC Charger

    55 mins (approx)

  • 0-100% Charging Time AC (hours)

    6.05 hours (approx)

  • Battery Charging Time (hours) AC Charger

    6.05 hours (approx)

  • Maximum Charging Power AC (kW)

    22 kW

  • Maximum Charging Power DC (kW)

    150 kW

  • Battery Capacity (Ah)

    167 Ah

  • Battery Capacity (kWh)

    110.6 kWh

  • Battery Energy (kWh)

    110 kWh

  • Battery Weight (kg)

    655 kg

  • Electric Front Motor: Type

    Permanent magnet synchronous motor

  • Electric Front Motor: Maximum Output (kW)

    205 kW

  • Electric Front Motor: Maximum Torque (Nm)

    410 Nm

Transmission

  • Transmission Type

    Automatic

  • Drive

    FWD

Performance

  • Maximum Speed (mph)

    55 mph

Suspension

  • Suspension Front

    Independent, MacPherson type (wishbones, coil springs, telescopic shock absorbers & anti-roll bar)

  • Suspension Rear

    Rigid tubular axle(parabolic longitudinal leaf springs,telesc. shock absorbers,flexible side buffers

Brakes

  • Brakes Front

    Disc

  • Brakes Rear

    Disc

Weights & Towing Capacity

  • Gross Train Weight - Total (kg)

    5500 kg

  • Gross Vehicle Weight (kg)

    4250 kg

  • Kerb Weight / Unladen Weight (kg)

    2750-2931 kg

  • Maximum Trailer Weight - Braked (kg)

    2400 kg

  • Maximum Trailer Weight - Unbraked (kg)

    750 kg

  • Gross Vehicle Weight - Front (kg)

    2100 kg

  • Gross Vehicle Weight - Rear (kg)

    2400 kg

Exterior dimensions

  • Exterior Length (mm)

    5998 mm

  • Exterior Width (mm)

    2050 mm

  • Exterior Height (mm)

    2612 mm

  • Front Tread (mm)

    1810 mm

  • Rear Tread (mm)

    1790 mm

  • Overhang Front (mm)

    948 mm

  • Overhang Rear (mm)

    1015 mm

  • Wheelbase (mm)

    4035 mm

Interior dimensions

  • Number of Seats

    3 seats

Luggage volume

  • Deck Length (mm)

    3705 mm

  • Deck Width (mm)

    1870 mm

  • Deck Height (mm)

    1932 mm

Exterior

Wheels

  • Black small centre caps

  • Full size Temporary spare wheel

Styling

  • Black front bumper

  • Black painted upper front grill

  • Black rear bumper

  • Roof antenna

  • Privacy Glass - 30% (Smoke tint)

  • Plastic under-seat housing

Comfort

  • 180° opening on rear wing doors

  • Auto headlights

  • Power-adjustable door mirrors

  • Electric heated door mirrors

  • Manually retractable door mirrors

  • Without

  • One sliding side door (left side)

  • Panel rear swing doors

  • Standard arm door mirrors

Protection

  • Black protection moulding on side doors

  • Front and rear wheel arch moulding

Safety

  • Anti-tamper alarm

  • Automatic High Beam (AHB)

  • Cruise Control

  • Driver Attention Alert

  • eCall emergency call system

  • Glass-breaking alarm sensors

  • Hill-start Assist Control (HAC)

  • Intrusion Alarm

  • Lane Departure Alert (LDA) with Steering Control

  • Lane Trace Assist (LTA)

  • Move-Off Blind Spot Alert (front, for Pedestrians and Cyclists)

  • Fixed speed limiter

  • Motion sensor alarm

  • Pre-Collision System with Pedestrian and Cyclist Detection

  • Projector halogen headlights

  • Rear combination lights

  • Rear parking sensors

  • Reversing Camera

  • Spare wheel carrier (under body)

  • Tyre Pressure Warning System (TPWS)

  • Vehicle Stability Control Plus (VSC+)

  • Road Sign Assist (RSA)

  • Intelligent Speed Assist

  • Pre-disposition for breathalyser engine lock

  • Safety Data Recording

Interior

Multimedia

  • 4 speakers

  • 7" Pro Touch® multimedia system

  • Bluetooth® Connectivity

  • Digital Audio Broadcast (DAB)+

  • Radio

Styling

  • 3-spoke Leather steering wheel

Comfort

  • 12v power outlet - Boot

  • 7" Digital Combimeter

  • Audio switches on steering wheel

  • Automatic air conditioning

  • Colour multi-information display

  • Digital tachometer

  • Dynamic guide lines on Reversing Camera

  • Lane Departure Alert (LDA) switch on lower driver dashboard

  • LED Boot light

  • Manually adjustable lumbar support on driver seat

  • Drivers armrest

  • Electronic parking brake

  • Height-adjustable driver seat

  • Key starting system

  • Driver and 2-seat bench

  • Speedometer (mph)

  • Telephone switches on steering wheel

  • Without

  • Without

  • Deadlock on rear doors

  • Driver & front passenger rotating fold-up table

Storage

  • Cargo deck - Inner load hooks for cargo

  • Overhead storage

  • Front cup holders (4)

  • Closed single cabin

  • Front driver under-bench storage

Performance

  • On-board charger (22 kWh)

Safety

  • Front seat belt reminder

  • Panel bulkhead

  • Rear seat belt reminder

  • Driver & passenger front airbag

  • Chrome centre air vents

Environmental Performance

  • WLTP CO2

    0 g/km

  • Fuel Economy

    0 mpg

  • Fuel Economy - Combined WLTP (l/100km)

    0 l/100 km

  • Pure Electric Range – Combined WLTP (km)

    424 km

  • Electric Consumption (Wh/km)

    262 Wh/km

  • Power Consumption WLTP (kWh/100 miles)

    42.2 kWh/100 miles

  • Sound Level Drive By (dB(A))

    65.0 dB(A)

  • Euro Class

    Euro 6

  • Total

    £51,547.00 (Excl. VAT)
