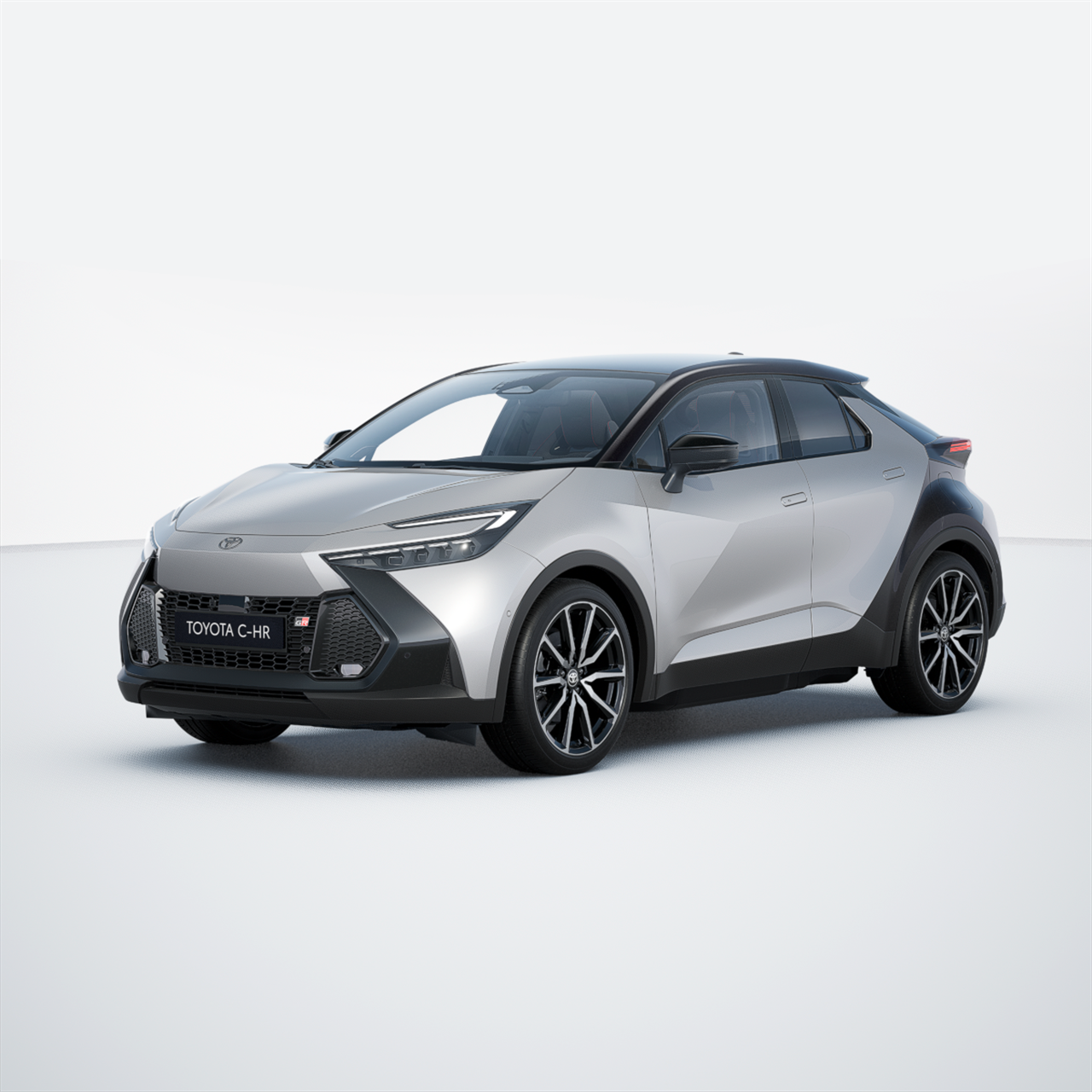

Toyota C-HR Icon specifications

Highlights

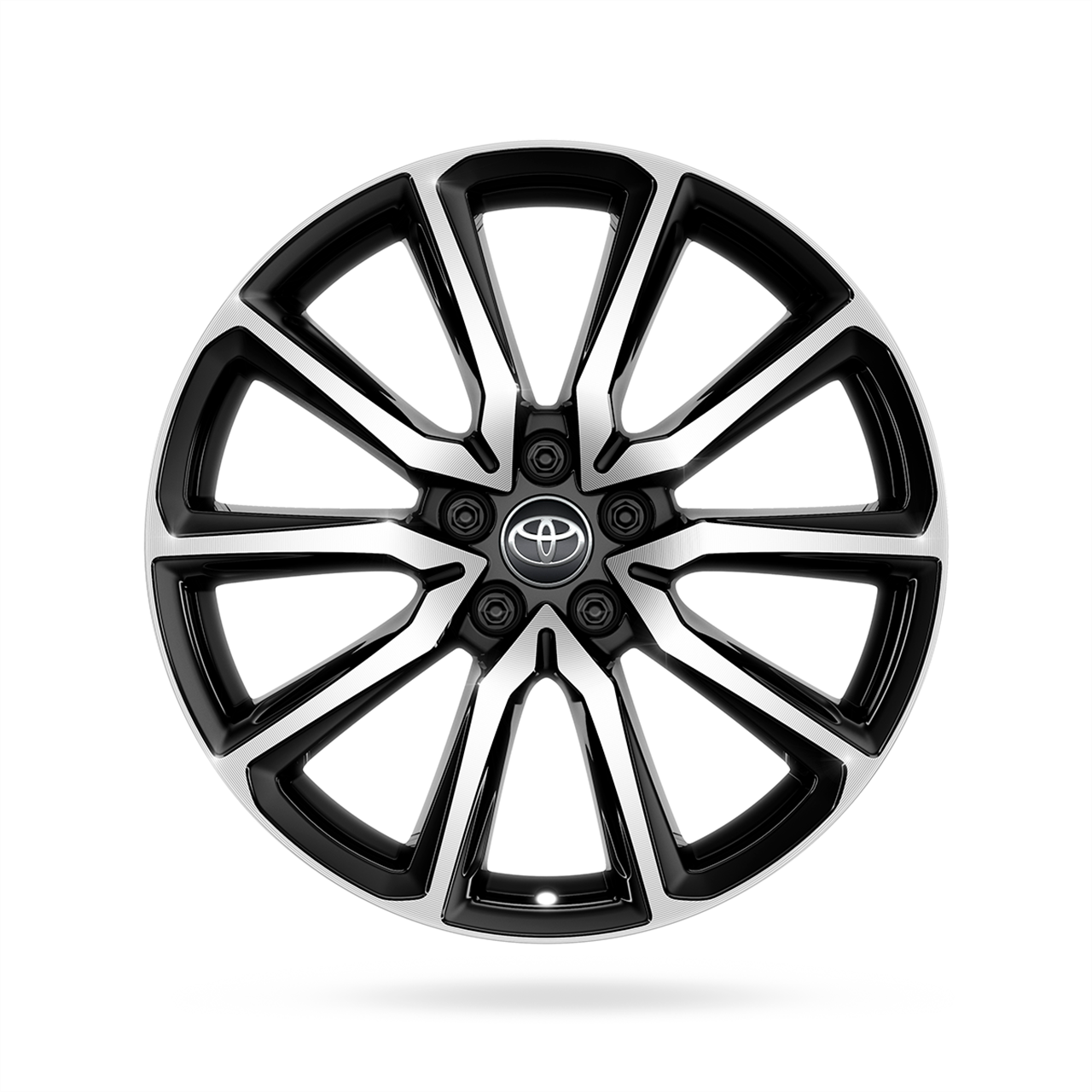

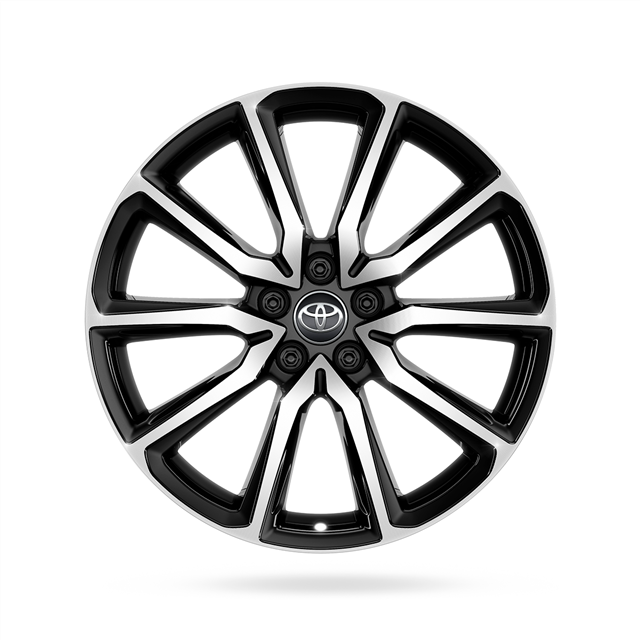

17" Alloys: Move with style

17” silver alloy wheels are enhanced with a detailed 5- double-spoke design to ensure you arrive at your destination in style.

7" Digital Combimeter: Digital Speedometer

Customise your digital combimeter to suit your needs.

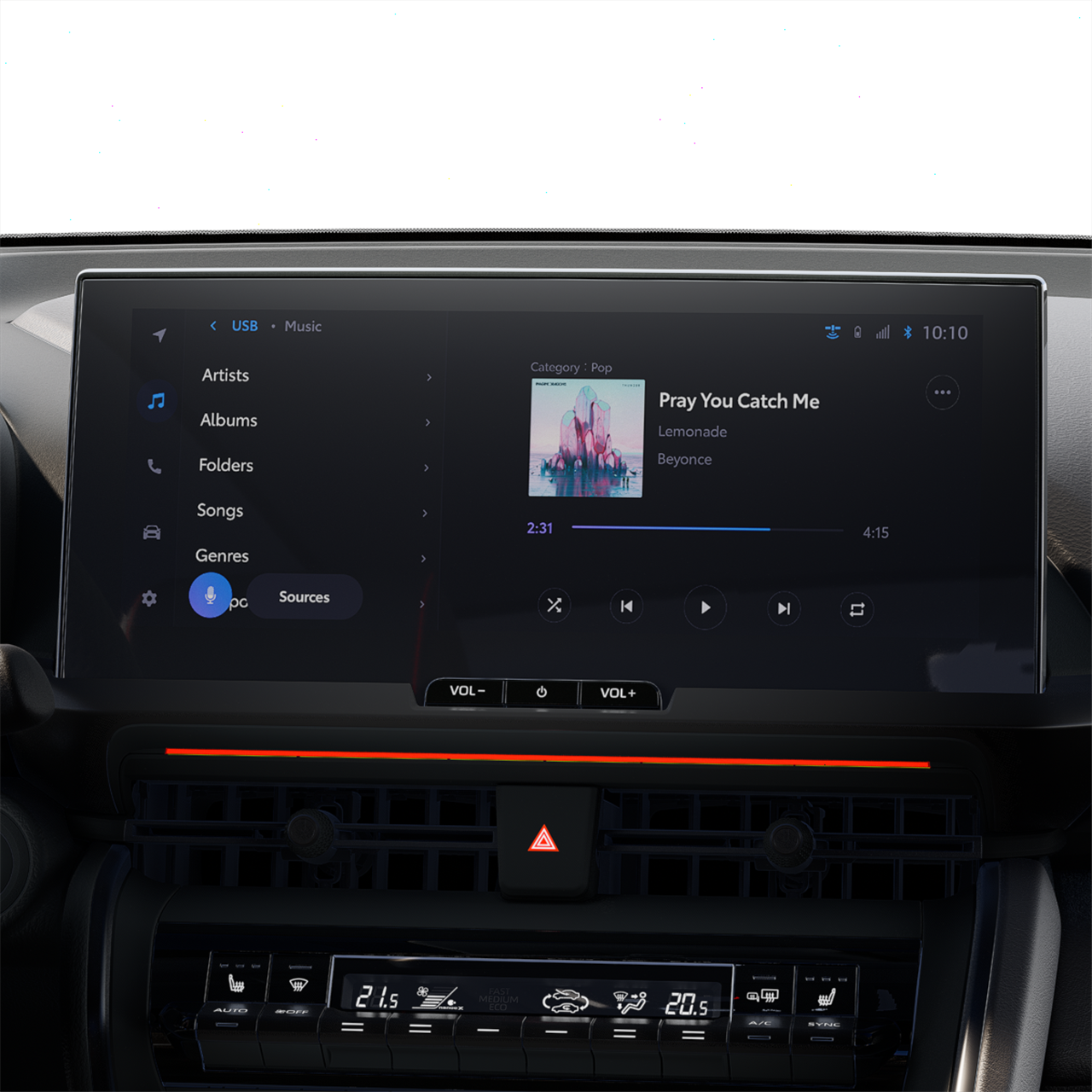

8" Display: All you need on one screen

Whether you want to listen to the latest traffic updates or your favorite music, the compact 8” multimedia display blends infotainment and connectivity into one – ensuring you’re always connected.

Smartphone Sync: Seamless phone integration

Instant wireless connection to Apple CarPlay™ and Android Auto™, Experience convenient smartphone integration, packed with features to help you stay connected.

Cloud Navigation: Satellite navigation

No need to connect your phone for directions with Cloud Navigation.

Blind-spot Monitoring: An always-on view of your blind spot

Enter a new era of safer driving, with a blind spot monitor that sees hidden vehicles for you using ultrasonic sensors on the side of the car. When it detects a hazard, a warning indicator lights up.

Safety Exit Assist: Exit your car more safely

Stay safer and protect yourself and other road users from a collision using Safety Exit Assist. This feature helps to prevent a collision between an open door and a vehicle or cyclist approaching from behind.

View specifications

Space and Room

High-quality fabrics and soft ornamentation add pleasingly human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.

Exterior dimensions

Exterior Length (mm): 4362 mm
Exterior Width (mm): 1832 mm
Exterior Height (mm): 1558 mm
Front Tread (mm): 1580 mm
Rear Tread (mm): 1595 mm
Overhang Front (mm): 911 mm
Overhang Rear (mm): 811 mm
Wheelbase (mm): 2640 mm

Interior dimensions

Number of Seats: 5 seats
Interior length (mm): 1690 mm
Interior Width (mm): 1465 mm
Interior Height (mm): 1210 mm

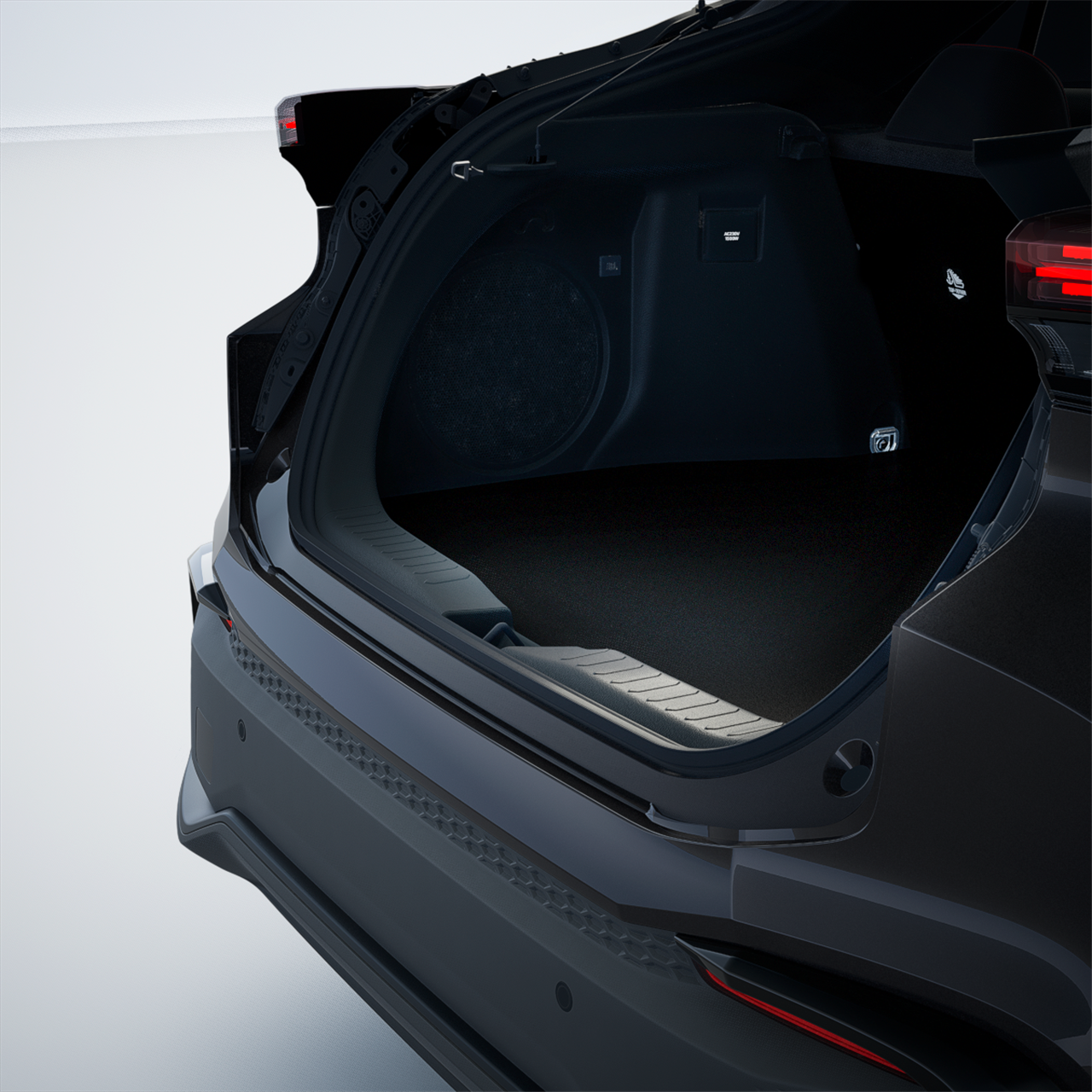

Luggage volume

Luggage Capacity (Laden To Tonneau Cover) l: 388 litres
2 Seat Mode (Laden To Roof): 1155 litres
Load Volume (m³): 0.388 m³
VDA luggage capacity, rear seat up (liters): 388 litres

Engine

Drive with pure emotion, powered by a high-performance engine that helps you take on any journey with confidence.

Environmental Performance

CO2 Combined Max WLTP (g/km): 111 g/km
CO2 Combined WLTP (g/km): 105 g/km
CO2 Combined WLTP - Weighted (g/km): 105 g/km
Fuel Economy - Combined: 57.6 - 60.1 mpg
Fuel Economy Combined WLTP (l/100 km): 4.7 l/100 km
Carbon Monoxide, CO (mg/km): 97.8 mg/km
Hydrocarbons, THC (mg/km): 17.6 mg/km
Hydrocarbons, NMHC (mg/km): 15.4 mg/km
Nitrogen Oxides, NOx (mg/km): 2.8 mg/km
Sound Level Drive By (dB(A)): 64.0 dB(A)
Euro Class: EURO 6 EB
Recommended Fuel Grade: 95 or more (octane)
Fuel Tank Capacity (l): 43 l

Performance

Maximum Speed (mph): 108 mph
Acceleration 0-62 (mph): 9.9 seconds
Drag Coefficient: 0.318

Engine

Total System Output (DIN hp): 140 DIN hp
Total System Output (kW): 103 kW
Engine Code: 2ZR-FXE
Engine Type: Petrol Hybrid
Displacement (cc): 1798 cc
Bore x Stroke (mm x mm): 80.5 x 88.3 mm
Compression Ratio: 13.048:1
Engine Layout & Number Of Cylinders: 4 cylinder, in line
Valve Mechanism: 16-Valve DOHC, Chain Drive (With Dual VVT-i )
Fuel Injection System: SFI
Maximum Output (DIN hp): 140 DIN hp
Maximum Torque (Nm): 185 Nm
Hybrid Vehicle Battery: Type: Lithium-ion-battery

Transmission

Transmission Type: Automatic
Gearbox: Continuously Variable Transmission
Drive: FWD

Suspension

Suspension Front: MacPherson strut
Suspension Rear: Double wishbone

Brakes

Brakes Front: Ventilated disc 1-cylinder
Brakes Rear: Solid disc 1-cylinder

Weights & Towing Capacity

Gross Train Weight - Total (kg): 2655 kg
Gross Vehicle Weight (kg): 1930 kg
Kerb Weight / Unladen Weight (kg): 1430-1455 kg
Maximum Trailer Weight - Braked (kg): 725 kg
Maximum Trailer Weight - Unbraked (kg): 725 kg
Gross Vehicle Weight - Front (kg): 1180 kg
Gross Vehicle Weight - Rear (kg): 1080 kg

Safety

Find peace of mind as you drive with Toyota T-Mate. Whether you’re reversing into a parking space or approaching a busy junction, T-Mate makes sure you're always in safe hands wherever you go.

Auto wipers
Road Events (4-year trial)§
eCall emergency call system
Toyota Safety Sense with Over-the-Air Updates§
Proactive Driving Assist
Lane Trace Assist
Emergency Steering Assist
Pre-Collision System with Pedestrian (day & night), Cyclist & Motorbike (day) Detection
Driver monitoring camera
Front-to-front Oncoming Car & Motorbike daytime detection
Acceleration Suppression at low speed
Pre-Collision System - with Intersection detection
Blind Spot Monitor
Safe Exit Assist
Emergency Driving Stop System
Adjustable Speed Limiter
Intelligent Adaptive Cruise Control
Reversing camera
Anti-lock Braking System with Electronic Brake force Distribution
Emergency Brake-light Signal
Hill-start Assist Control
Road Sign Assist
Vehicle Stability Control
Tyre Pressure Warning System
Glass-breaking alarm sensors
Immobiliser
Intrusion alarm
Intrusion Sensor
Motion sensor alarm
Automatic High Beam
LED Daytime running lights
LED Reflector headlights
Automatic Rear Flashing Hazard Lights
Turning signal integrated in door mirrors
LED Rear brake lights
LED High mounted stop light
Rear fog lamps (LED)
LED Rear combination lights

Passenger airbag on/off-switch
Driver & passenger side airbag
Driver knee airbag
Front seat belt reminder
Pre-tensioners and force limiters
Rear seat belt reminder
ISOFIX child restraint system
Rear seat reminder
Adjustable rear headrests
Driver & front passenger Whiplash Injury Lessening seats
Rear headrests (3)

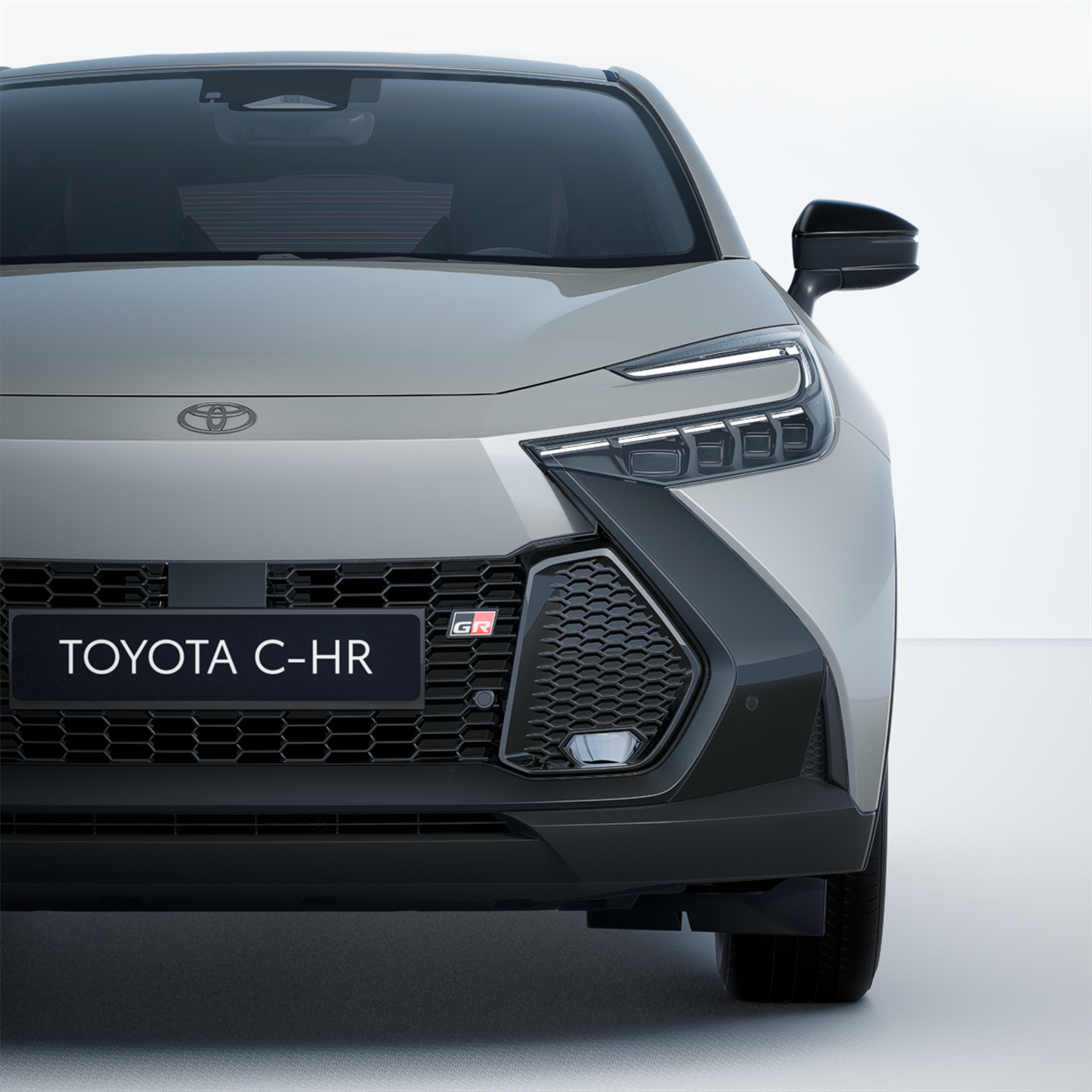

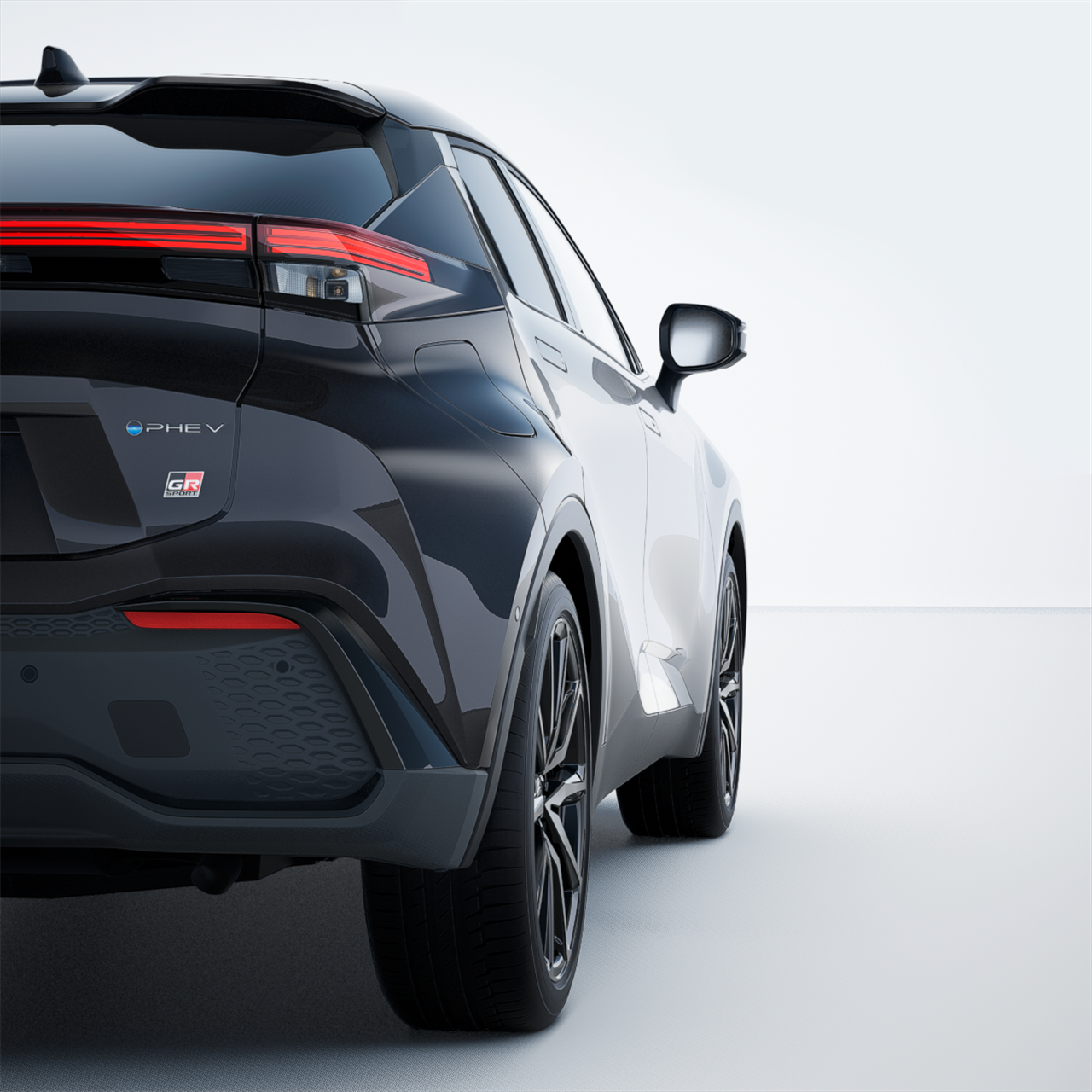

Styling

Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.

Black wheel arch moulding
Grained rear bumper extension
Rear bumper with gunmetal insert
Black painted insert on boot door
Grained lower front grille
Gunmetal surround on lower front grille
Grained front side grille
B - Pillar in Black
Body-coloured rear spoiler

Black centre air vent
Satin chrome insert on centre air vents
Satin chrome insert on side air vents
Satin chrome side air vent surrounds
Dark grey interior door handles
Fabric rear door armrests
PVC gear shift knob
3-spoke synthetic leather steering wheel

Wheels

Choose from Toyota's selection of premium wheels to suit your driving style.

Tyre Repair Kit

Comfort

Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs to heating that keeps you warm when it's cold outside.

Auto headlights
Automatic headlight cut-off
Headlight cut-off reminder
Follow-me-home headlights
Auto-retractable door mirrors
Electric heated door mirrors
Power-adjustable door mirrors
Puddle lights
Remote door lock
Flush front door handles
Flush rear door handles
Boot door release with Push-button
Smartphone remote door lock (4-year trial)§
Smart entry & push-button start
Remote boot door release in cabin
Smartphone remote hazard lights system (4-year trial)§

12v power outlet - Front
12.3" colour multi-information display
7" Digital Combimeter
Digital speedometer
Digital tachometer
Hybrid System Indicator
Reversing Camera display in multimedia system
Static guide lines on Reversing Camera
Automatic air conditioning
Smartphone remote air conditioning system(4-year trial)§
Clean air filter
Pollen air filter
Manually height-adjustable driver seat
Front sports seats
60:40 split-folding rear seats
Anti-jam protection on power windows
Front power windows
Rear power windows
Auto up & down function on power windows
Variable intermittent windscreen wipers
UV-filter on driver & front passenger windows
UV-filter on rear windows
Rear window defogger

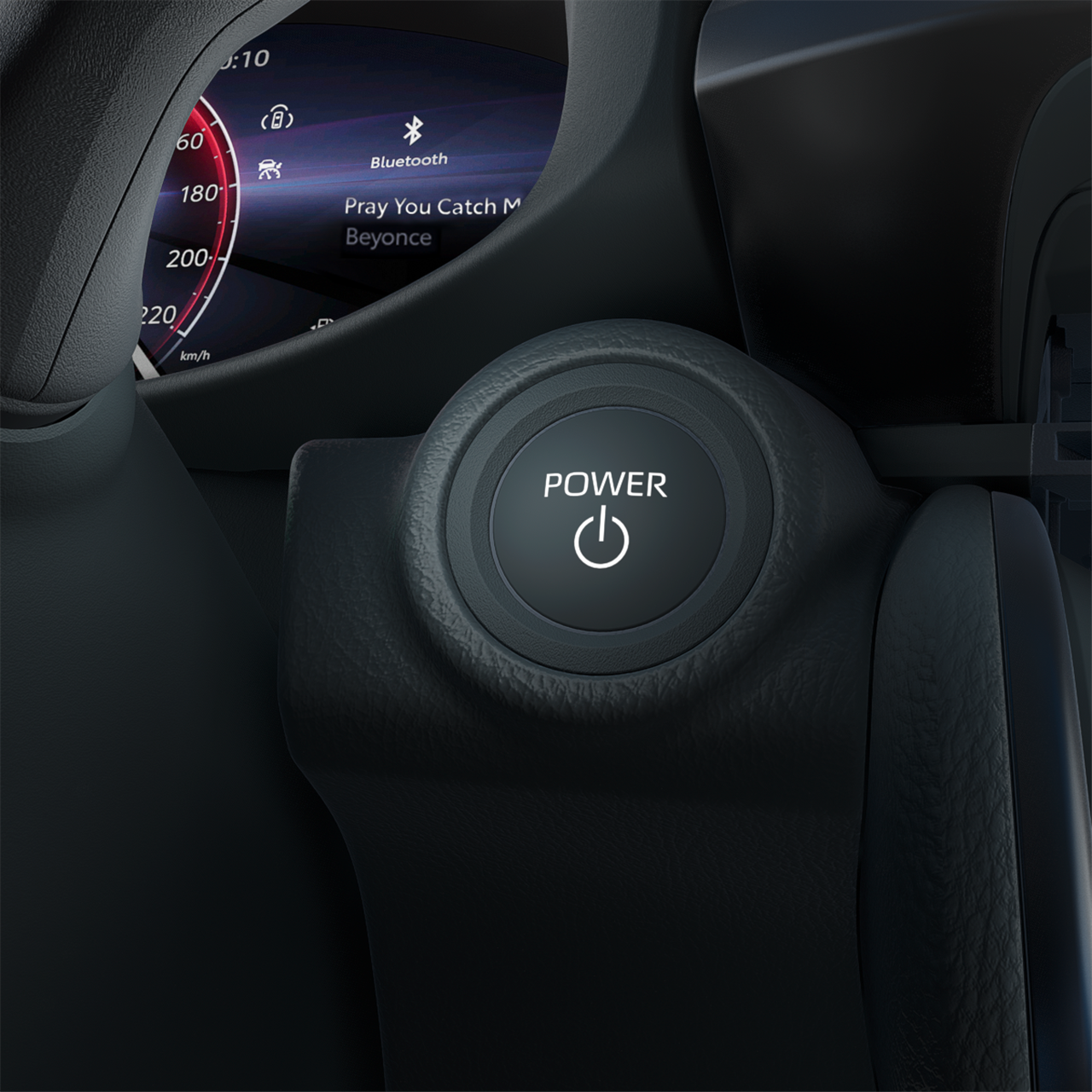

Push-button start
Power door lock
Assist grips - Centre pillar
Assist grips - Front pillar
Boot light
Driver & front passenger personal lights
Front room light
Rear passenger personal lights
Electric Power Steering
Manual telescopic steering wheel
Manual tilt steering wheel
Audio switches on steering wheel
Voice assistant switch on steering wheel
Lane Departure Alert switch on steering wheel
Telephone switches on steering wheel
Multimedia switches on steering wheel
Auto-dimming rear view mirror
Light on driver sun visor
Light on passenger sun visor
Mirror on driver sun visor
Mirror on passenger sun visor
Child safety door lock
Electronic parking brake

Multimedia

Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.

6 speakers
Toyota Smart Connect multimedia with Smartphone integration including Apple CarPlay™
Wireless Smartphone integration incl Apple CarPlay™
8" multimedia system
Bluetooth® Connectivity
Cloud Navigation (4 year trial)§
Digital Audio Broadcast
Aux-in connector
USB connector integrated with radio
Front USB Type-C connector
Smart Voice Assist§
Microphone on front personal light
Connected Services§

Storage

This fantastic interior space offers plenty of room for all ‒ including ample legroom to comfortably stretch your legs, and a spacious boot to fit everything you’ll need.

Pre-wiring for towing hook

Protection

The world places a lot of demand on your car, from rock chips and paint scratches to everyday weathering. Take care of the vehicle that drives your future with a protection package.

Floor mats
