Everything in detail

New Toyota C-HR+ Icon specifications

View specifications

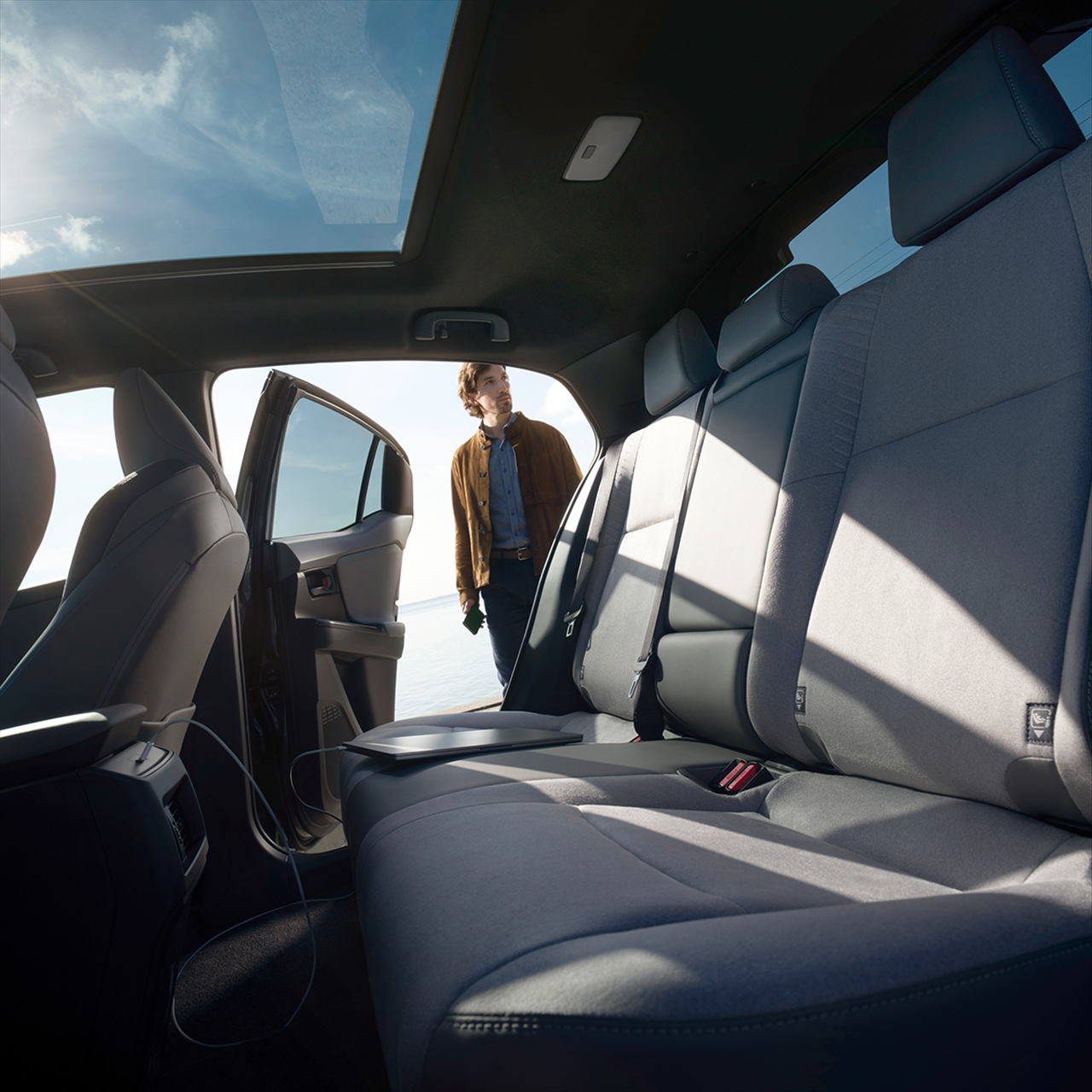

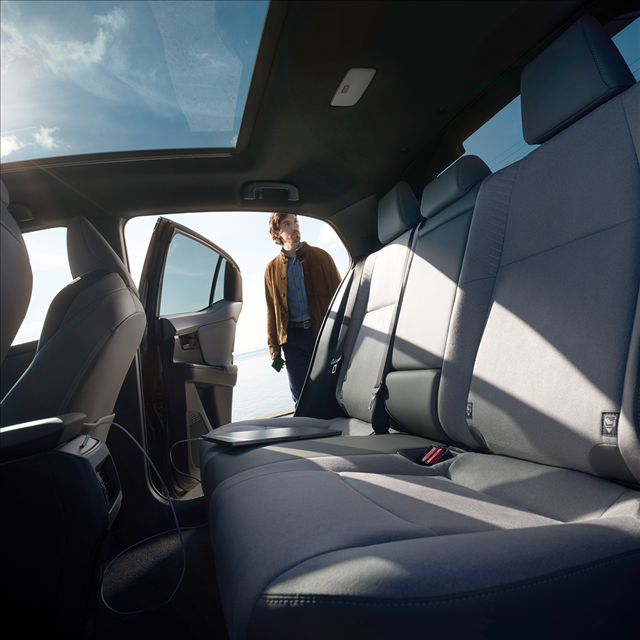

Space and Room

High-quality fabrics and soft ornamentation add pleasingly human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.

Exterior dimensions

Exterior Length (mm): 4530 mm
Exterior Width (mm): 1870 mm
Exterior Height (mm): 1595 mm
Front Tread (mm): 1605 mm
Rear Tread (mm): 1630 mm
Overhang Front (mm): 910 mm
Overhang Rear (mm): 870 mm
Wheelbase (mm): 2750 mm

Interior dimensions

Number of Seats: 5 seats
Interior length (mm): 1835.3 mm
Interior Width (mm): 1502.4 mm
Interior Height (mm): 1174.3 mm

Luggage volume

Load Volume (m³): 0.416 m³
Luggage Capacity VDA (Rear Seats Up, Laden To Tonneau Cover) litres: 416 litres
VDA luggage capacity, rear seat up (liters): 416 litres

Electric Engine

Electric Engine description

Environmental Performance

CO2 Combined (g/km): 0 g/km
Fuel Economy - Combined Min WLTP (mpg): 0 mpg
Fuel Economy - Combined WLTP (l/100km): 0 l/100 km
Pure Electric Range – Combined WLTP (km): 458 km
Electric Range – Combined MAX WLTP (miles): 239.23 miles
Electric Range – Combined WLTP (miles): 284.59 miles
Electric Consumption (Wh/km): 134 Wh/km
Power Consumption WLTP (kWh/100 miles): 21.6 kWh/100 miles
Sound Level Drive By (dB(A)): 62.0 dB(A)
Euro Class: AX
Pure Electric Range – City - Max (miles): 344.24 miles
Pure Electric Range – City (miles): 408.24 miles
Pure Electric Range – Extra High - Max (miles): 172.74 miles
Pure Electric Range – Extra High (miles): 204.43 miles
Pure Electric Range – High - Max (miles): 269.05 miles
Pure Electric Range – High (miles): 321.25 miles
Pure Electric Range – Low - Max (miles): 369.72 miles
Pure Electric Range – Low (miles): 437.44 miles

Performance

Maximum Speed (mph): 86 mph
Acceleration 0-62 (mph): 8.4 seconds
Drag Coefficient: 0.262

Engine

Total System Output (kW): 123 kW
Maximum Output (DIN hp): 167 DIN hp
Hybrid Vehicle Battery: Type: Lithium ion battery
Hybrid Vehicle Battery: Capacity Ah (hr): 200 Ah
Battery Capacity (Usable, kWh): 54 kWh
10-80% Charging Time (mins) DC Charger: 28 mins (approx)
0-100% Charging Time AC (hours): 5.5 hours (approx)
Battery Charging Time (hours) AC Charger: 5.5 hours (approx)
Maximum Charging Power AC (kW): 11 kW
Maximum Charging Power DC (kW): 150 kW
Battery Capacity (Ah): 200 Ah
Battery Capacity (kWh): 57.7 kWh
Electric Front Motor: Type: permanent magnet synchronous motor

Transmission

Transmission Type: Automatic
Drive: FWD

Suspension

Suspension Front: Macpherson strut
Suspension Rear: Double wishbone

Brakes

Brakes Front: Ventilated disc 2- cylinder
Brakes Rear: Ventilated Disc 1-Cylinder

Weights & Towing Capacity

Gross Vehicle Weight (kg): 2465 kg
Kerb Weight / Unladen Weight (kg): 1810-1845 kg
Maximum Trailer Weight - Braked (kg): 0 kg
Maximum Trailer Weight - Unbraked (kg): 0 kg
Gross Vehicle Weight - Front (kg): 1355 kg
Gross Vehicle Weight - Rear (kg): 1355 kg

Safety

Find peace of mind as you drive with Toyota T-Mate. Whether you’re reversing into a parking space or approaching a busy junction, T-Mate makes sure you're always in safe hands wherever you go.

Auto wipers
Automatic headlight levelling
UV-filter on windshield
eCall emergency call system
Hill-start Assist Control
Adaptive High Beam system
LED Daytime running lights
LED high mounted stop light
LED rear brake lights
LED rear combination lights
Multi-beam LED headlamps
Toyota Safety Sense with over-the-air updates
Pre-Collision System with pedestrian (day & night), cyclist & motorbike (day) detection
Pre-Collision System - with intersection detection
Front-to-front Oncoming Car & Motorbike daytime detection
Acceleration suppression at low speed
Rear Cross Traffic Alert with automatic braking
Emergency Driving Stop system
Automatic Emergency Stop Signal on rear hazard lights
Lane Departure Alert with steering control
Lane Trace Assist
Emergency Steering Assist
Blind Spot Monitor
Safe Exit Assist
Intelligent Adaptive Cruise Control
Driver Monitoring Camera
Tyre Pressure Warning system
Road Sign Assist
Acoustic Vehicle Alert system
Glass-breaking alarm sensors
Immobiliser
Intrusion sensor
Tilt detection sensors
Reversing camera
Front intelligent clearance sonar with objects, vehicle and pedestrians
Intelligent clearance sonar with rear for objects, vehicle and pedestrians
Rear fog lights
Automatic rear flashing hazard lights
LED turning signal integrated in door mirrors
Road Events

Passenger airbag on/off-switch
SRS curtain shield airbags
SRS front seat centre airbag
Driver & passenger front airbag
Driver & passenger side airbag
Driver knee airbag
Front seat belt reminder
Rear seat belt reminder
Rear seat reminder
Child safety rear door lock
ISOFIX child restraint system

Styling

Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.

Black shark-fin antenna
Shark-fin antenna
Black insert on lower side doors

Rear armrest
Black centre console
Fabric front door armrests
Gloss black surround on multimedia display
Soft-touch front door trim
Soft-touch rear door trim
Ambient lighting on interior door handles
Ambient lighting on dashboard

Performance

From road-ready handling to efficient acceleration – discover what makes the Toyota driving performance so special.

Rear spoiler

Comfort

Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs to heating that keeps you warm when it's cold outside.

Power-adjustable door mirrors
Electric heated door mirrors
Headlight cut-off reminder
Smart entry & push-button start
Standard charger (11kW AC) and fast charger (150kW DC)
Smartphone remote hazard lights system
Smartphone remote door lock

Push-button start
12v power outlet - Front
60:40 split-folding 2nd row rear seats
7" digital combimeter
Heated steering wheel
Manual telescopic steering wheel
Manual tilt steering wheel
Multi-info switches on steering wheel
Telephone switches on steering wheel
Adaptive Cruise Control switch on steering wheel
Voice recognition switch on steering wheel
Armrest on front console box
Rear door armrests
Assist grips - Front
Assist grips - Rear
Auto-dimming rear view mirror
Colour multi-information display
Heated driver & front passenger seats
Illuminated entry system & Footwell lights
LED centre room light
Light on driver sun visor
Light on passenger sun visor
Mirror on driver sun visor
Mirror on passenger sun visor
Power door lock
Power-adjustable lumbar support on driver seat
Manually height-adjustable driver seat
Manually height-adjustable front passenger seat
Manually sliding passenger seat
Manually sliding driver seat
Rear passenger personal lights
UV-filter on rear windows
Washer fluid level warning
Noise reduction layer on windscreen
Electronic parking brake with hold function
Dual-zone automatic air conditioning
Remote air conditioning system

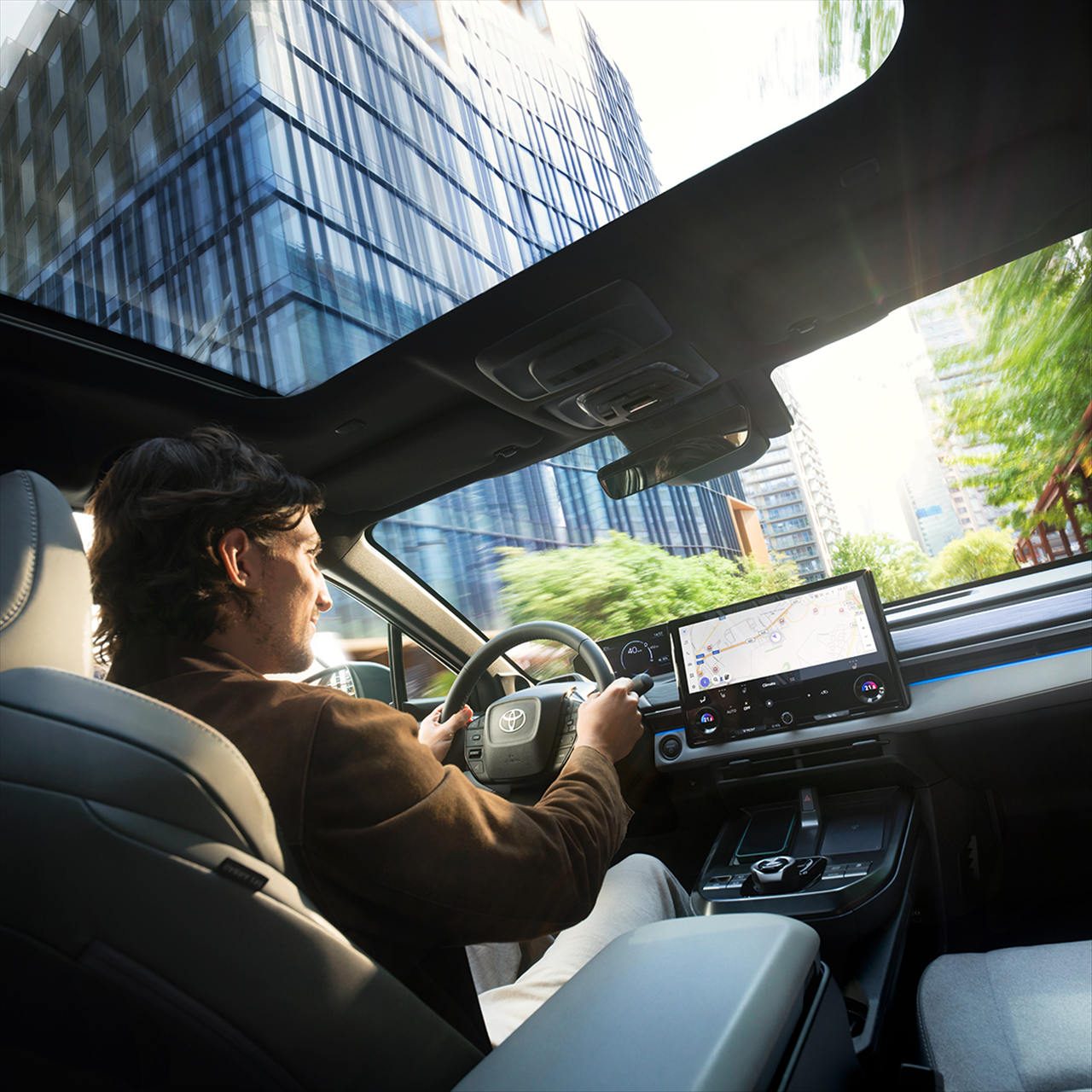

Multimedia

Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.

2 wireless mobile phone chargers
6 speakers
14" Toyota Smart Connect+ multimedia system with wireless Apple CarPlay™ & connect cloud navigation
Wireless smartphone integration including Apple CarPlay™
Built-in navigation
Smart Voice Assist
Bluetooth® Connectivity
Digital Audio Broadcast
Microphone on front personal light
Front USB-C connectors (2)
Rear USB-C connectors (2)
Connected Services
Fixed speed camera notification
Cloud navigation
