Everything in detail

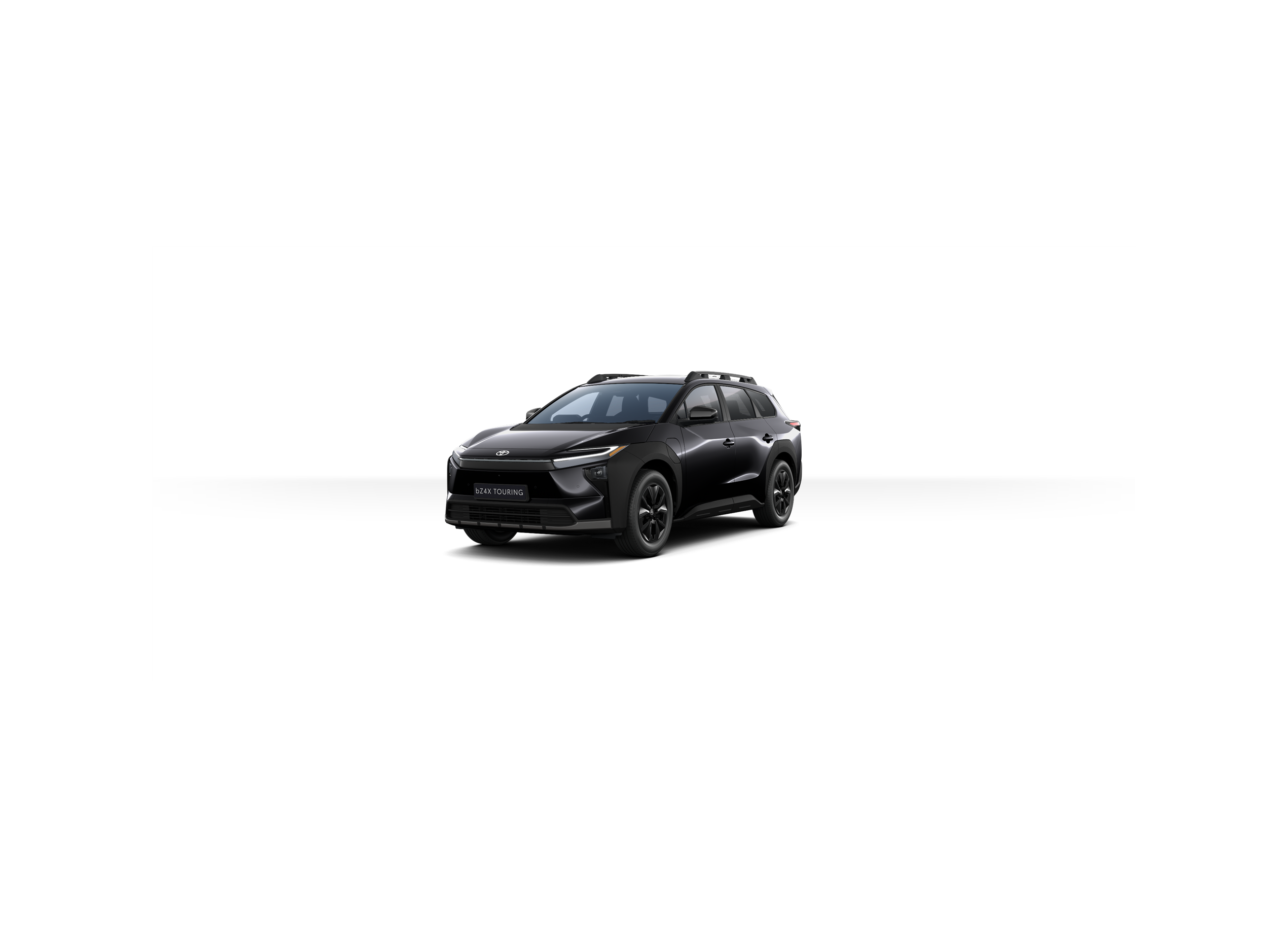

All-New bZ4X Touring Design specifications

View specifications

Space and Room

High-quality fabrics and soft ornamentation add pleasingly human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.

Exterior dimensions

Exterior Length (mm): 4830 mm
Exterior Width (mm): 1860 mm
Exterior Height (mm): 1675 mm
Front Tread (mm): 1600 mm
Rear Tread (mm): 1610 mm
Overhang Front (mm): 915 mm
Overhang Rear (mm): 1065 mm
Wheelbase (mm): 2850 mm

Interior dimensions

Number of Seats: 5 seats
Interior length (mm): 1935 mm
Interior Width (mm): 1500 mm
Interior Height (mm): 1160 mm

Luggage volume

5 Seat Mode (Laden To Roof): 669 litres
Load Volume (m³): 550 m³

Electric Engine

Electric Engine description

Environmental Performance

WLTP CO2: 0 g/km
CO2 Combined - WLTP - Weighted (g/km): 0 g/km
CO2 Combined WLTP - Weighted - Max (g/km): 0 g/km
Fuel Economy - Combined WLTP - Weighted (mpg): 0 mpg
Fuel Economy: 0 mpg
Fuel Economy - Combined WLTP (l/100km): 0 l/100 km
Fuel Economy - Combined WLTP - Weighted (l/100km): 0 l/100 km
Fuel Economy - Combined Max WLTP - Weighted (l/100km): 0 l/100 km
Pure Electric Range – Combined WLTP (km): 590 km
Electric Range – Combined MAX WLTP (miles): 341.13 miles
Electric Range – Combined WLTP (miles): 366.61 miles
Electric Consumption (Wh/km): 140 Wh/km
Electric Consumption - Max (Wh/km): 150 Wh/km
Power Consumption WLTP (kWh/100 miles): 22.5 kWh/100 miles
Sound Level Drive By (dB(A)): 62.0 dB(A)
Euro Class: AX
CO2 Combined WLTP (g/km) - CS: 0 g/km
CO2 Combined WLTP (g/km) - Normal: 0 g/km
Fuel Combined WLTP (km/l): 0 km/l

Performance

Maximum Speed (mph): 99 mph
Acceleration 0-62 (mph): 7.3 seconds

Engine

Total System Output (kW): 165 kW
Maximum Output (DIN hp): 224 DIN hp
Maximum Output (kW@rpm): 165/ kW@rpm
Hybrid Vehicle Battery: Capacity Ah (hr): 191 Ah
Hybrid Vehicle Battery: Number Of Modules: 8
Battery Capacity (Usable, kWh): 71 kWh
10-80% Charging Time (mins) DC Charger: 28 mins (approx)
0-100% Charging Time AC (hours): 7 hours (approx)
Battery Charging Time (hours) AC Charger: 7 hours (approx)
Maximum Charging Power AC (kW): 11 kW
Maximum Charging Power DC (kW): 150 kW
Battery Capacity (Ah): 191 Ah
Battery Capacity (kWh): 74.7 kWh
Electric Front Motor: Type: Permanent Magnet Synchronous Motor
Electric Front Motor: Maximum Torque (Nm): 268.6 Nm

Transmission

Transmission Type: Automatic
Drive: FWD

Suspension

Suspension Front: MacPherson Strut
Suspension Rear: Trailing arm - Double wishbone

Brakes

Brakes Front: Ventilated Disc
Brakes Rear: Ventilated Disc

Weights & Towing Capacity

Gross Train Weight - Total (kg): 3215 kg
Gross Vehicle Weight (kg): 2465 kg
Kerb Weight / Unladen Weight (kg): 1900-1965 kg
Maximum Trailer Weight - Braked (kg): 750 kg
Maximum Trailer Weight - Unbraked (kg): 750 kg
Gross Vehicle Weight - Front (kg): 1355 kg
Gross Vehicle Weight - Rear (kg): 1355 kg

Safety

Find peace of mind as you drive with Toyota T-Mate. Whether you’re reversing into a parking space or approaching a busy junction, T-Mate makes sure you're always in safe hands wherever you go.

Auto wipers
Automatic headlight levelling
Blind Spot Monitor (BSM)
eCall emergency call system
Glass-breaking alarm sensors
Headlight cleaners
Immobiliser
Intrusion Sensor
Lane Departure Alert (LDA) with Steering Control
Lane Trace Assist (LTA)
LED Daytime running lights
LED High mounted stop light
LED Rear brake lights
LED Rear combination lights
360º Panoramic View Monitor (PVM)
Reversing Camera
Road Sign Assist (RSA)
Tilt detection sensors
Tyre Pressure Warning System (TPWS)
Intelligent Adaptive Cruise Control
Emergency Steering Assist
Rear fog lights
Acoustic Vehicle Alert System
Safe Exit Assist
Pre-Collision System with Pedestrian (day & night), Cyclist & Motorbike (day) Detection
Driver Monitoring Camera
Front-to-front Oncoming Car & Motorbike daytime detection
Acceleration Suppression at low speed
Emergency Driving Stop System
Automatic Rear Flashing Hazard Lights
Toyota Safety Sense with Over-the-Air Updates
Rear Cross Traffic Alert with automatic braking (RCTA)
Pre-Collision System - with Intersection detection
Intelligent Clearance Sonar (ICS) (rear for objects, vehicle and Pedestrians)
Automatic Emergency Stop Signal on Rear Hazard Lights
Front Intelligent Clearance Sonar (ICS) (Objects, Vehicle and Pedestrians)
LED Headlights
Adaptive High Beam System (AHS)

Front seat belt reminder
Passenger airbag on/off-switch
Rear seat belt reminder
Driver & passenger central airbag
Driver & passenger front airbag
Driver & passenger side airbag
Rear seat reminder
SRS Curtain shield airbags

Styling

Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.

Black window frame
Body-coloured shark-fin antenna
Privacy Glass
Shark-fin antenna
Gloss black door mirrors
Black insert on lower side doors

Ambient lighting on front doors
Ambient lighting on rear doors
Black centre console
Leather-like front door armrests
Gloss black surround on multimedia display
Rear armrest
Soft-touch front door trim
Soft-touch rear door trim
Ambient lighting on front interior door handles

Performance

From road-ready handling to efficient acceleration – discover what makes the Toyota driving performance so special.

Rear spoiler

Comfort

Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs to heating that keeps you warm when it's cold outside.

Boot door release with Push-button
Power-adjustable door mirrors
Electric heated door mirrors
Headlight cut-off reminder
Remote boot door release on key
Smart Entry & Push-button Start
Power back door
Standard charger (11kW AC) and fast charger (150kW DC)
Puddle lights

Push-button start
12v power outlet - Front
60:40 split-folding 2nd row rear seats
7" Digital Combimeter
Adaptive Cruise Control (ACC) switch on steering wheel
Armrest on front console box
Assist grips - Front
Assist grips - Rear
Auto-dimming rear view mirror
Child safety door lock
Colour multi-information display
Digital speedometer (mph)
Heated driver & front passenger seats
Illuminated entry system & Footwell lights
LED Centre room light
Light on driver sun visor
Light on passenger sun visor
Manual telescopic steering wheel
Manual tilt steering wheel
Manually height-adjustable front passenger seat
Manually sliding front passenger seat
Mirror on driver sun visor
Mirror on passenger sun visor
Multi-info switches on steering wheel
Power door lock
Power-adjustable lumbar support on driver seat
Power-height-adjustable driver seat
Power-sliding driver seat
Rear door armrests
Rear passenger personal lights
Speed Limiter switch on steering wheel
Telephone switches on steering wheel
UV-filter on rear windows
Washer fluid level warning
Multimedia switches on steering wheel
Electronic parking brake with hold function
Energy Saving Heat Pump
Windows - Windshield de-icer
Ambient foot lamp
Ambient lighting in centre console

Multimedia

Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.

6 speakers
Toyota Touch® 2 with Go Navigation
Bluetooth® Connectivity
Digital Audio Broadcast (DAB)
Microphone on front personal light
Voice recognition
Wireless Smartphone integration incl Apple CarPlay™
Smart Voice Assist
USB Type-C connector
14" Toyota Smart Connect+ Multimedia system with wireless Apple CarPlay™ & connect cloud navigation

Storage

This fantastic interior space offers plenty of room for all ‒ including ample legroom to comfortably stretch your legs, and a spacious boot to fit everything you’ll need.

Equipped for towing hook
