Everything in detail

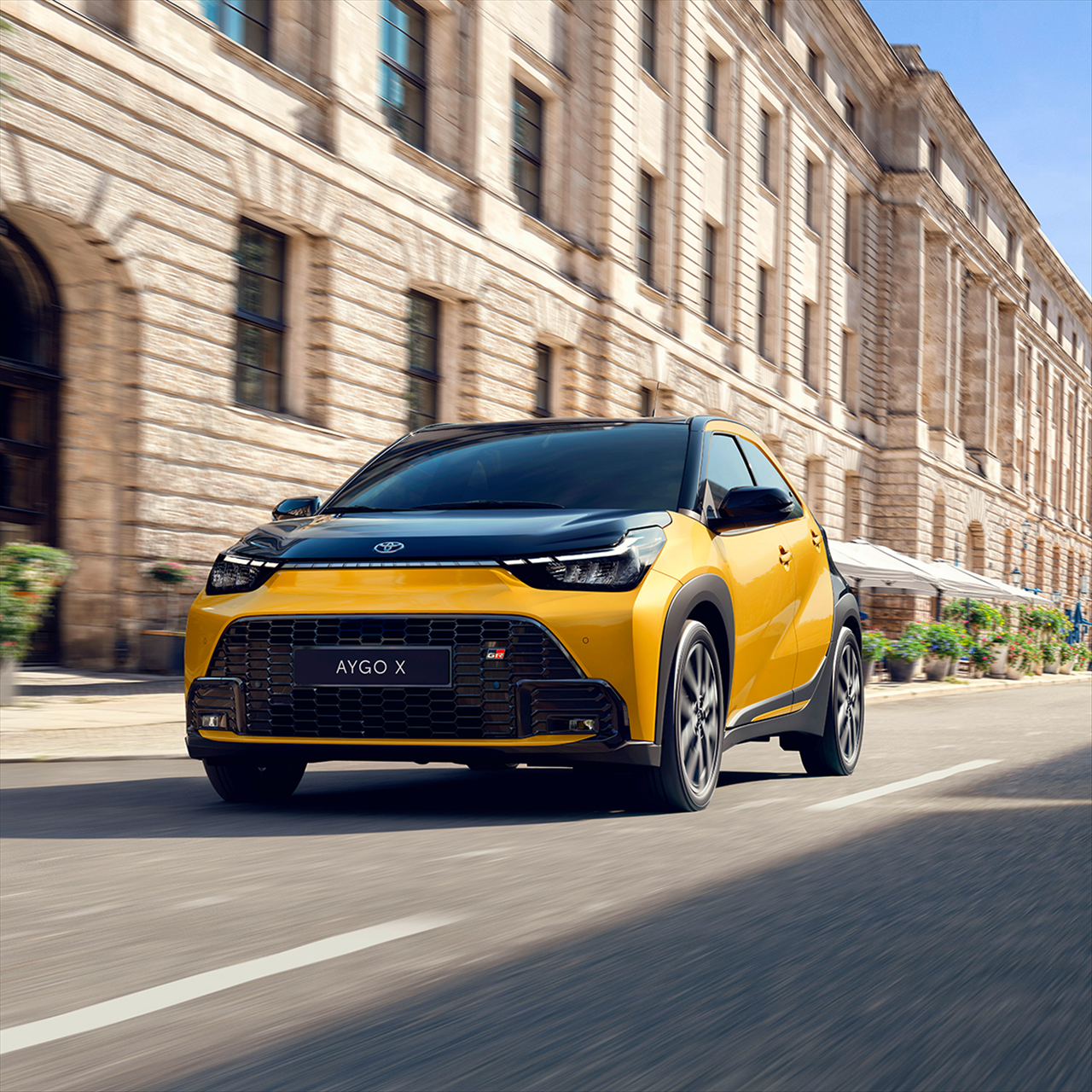

Aygo X Icon specifications

View specifications

Space and Room

High-quality fabrics and soft ornamentation add pleasingly human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.

Exterior dimensions

Exterior Length (mm): 3776 mm
Exterior Width (mm): 1740 mm
Exterior Height (mm): 1525 mm
Front Tread (mm): 1540 mm
Rear Tread (mm): 1520 mm
Overhang Front (mm): 806 mm
Overhang Rear (mm): 540 mm
Wheelbase (mm): 2430 mm

Interior dimensions

Number of Seats: 4 seats
Interior length (mm): 1700 mm
Interior Width (mm): 1420 mm
Interior Height (mm): 1205 mm

Luggage volume

5 Seat Mode (Laden To Tonneau Cover): 231 litres
5 Seat Mode (Laden To Roof): 269 litres
2 Seat Mode (Laden To Tonneau Cover): 545 litres
2 Seat Mode (Laden To Roof): 829 litres
Load Volume (m³): 0.231 m³

Engine

Drive with pure emotion, powered by a high-performance engine that helps you take on any journey with confidence.

Environmental Performance

CO2 Combined - WLTP (g/km): 87 g/km
Fuel Economy: 70.6 - 74.3 mpg
Fuel Economy Combined WLTP (l/100 km): 3.8 l/100 km
Carbon Monoxide, CO (mg/km): 78.8 mg/km
Hydrocarbons, THC (mg/km): 9.9 mg/km
Hydrocarbons, NMHC (mg/km): 8 mg/km
Nitrogen Oxides, NOx (mg/km): 4 mg/km
Sound Level Drive By (dB(A)): 66.0 dB(A)
Euro Class: EURO 6 EB
Recommended Fuel Grade: 95 or more (octane)
Fuel Tank Capacity (l): 30 l
Fuel Combined WLTP (km/l): 26.3 km/l

Performance

Maximum Speed (mph): 106 mph
Acceleration 0-62 (mph): 9.2 seconds
Drag Coefficient: 0.31

Engine

Total System Output (DIN hp): 116 DIN hp
Total System Output (kW): 85 kW
Engine Code: M15A-FXE
Displacement (cc): 1490 cc
Bore x Stroke (mm x mm): 80.5 x 97.6 mm
Compression Ratio: 14.0:1
Engine Layout & Number Of Cylinders: 3 Cylinder, In Line
Valve Mechanism: DOHC 4-valve roller rocker (w/vvt-ie and vvt-i)
Fuel Injection System: multipoint injection
Maximum Output (DIN hp): 116 DIN hp
Maximum Output (kW@rpm): 85 kW@rpm
Hybrid Vehicle Battery: Type: Lithium-ion battery
Hybrid Vehicle Battery: Capacity Ah (hr): 4.3 Ah
Maximum Torque (Nm): 141 Nm
Electric Front Motor: Type: permanent magnet synchronous motor
Electric Front Motor: Rated voltage (V): 580

Transmission

Transmission Type: Automatic
Drive: FWD

Brakes

Brakes Front: Ventilated disc 1-cylinder
Brakes Rear: Solid disc 1-cylinder

Weights & Towing Capacity

Gross Vehicle Weight (kg): 1510 kg
Kerb Weight / Unladen Weight (kg): 1090-1110 kg
Maximum Trailer Weight - Braked (kg): 0 kg
Maximum Trailer Weight - Unbraked (kg): 0 kg
Gross Vehicle Weight - Front (kg): 885 kg
Gross Vehicle Weight - Rear (kg): 810 kg

Safety

Find peace of mind as you drive with Toyota T-Mate. Whether you’re reversing into a parking space or approaching a busy junction, T-Mate makes sure you're always in safe hands wherever you go.

Adjustable Speed Limiter
Anti-lock Braking System with Electronic Brake force Distribution
Automatic High Beam
Brake Assist
Downhill Assist Control
Driver Attention Alert
eCall emergency call system
Emergency Brake-light Signal
Full-range Adaptive Cruise Control
Hill-start Assist Control
Immobiliser
Indicators integrated on door mirrors
Intrusion Alarm
Lane Trace Assist
LED Daytime running lights
LED High mounted stop light
Manual headlight levelling
Pre-Collision System with Pedestrian and Cyclist Detection
Projector halogen headlights
Reversing Camera
Traction Control
Tyre Pressure Warning System
Emergency Steering Assist
Road Sign Assist
Intersection Turn Assist
Steering-assisted Vehicle Stability Control
Driver Monitoring Camera
Acceleration Suppression at low speed
Emergency Driving Stop System
Proactive Driving Assist

Front seat belt reminder
ISOFIX child restraint system
Passenger airbag on/off-switch
Rear headrests (2)
Rear seat belt reminder
Supplemental Restraint System - 6 airbags

Styling

Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.

Black upper front grille
Black wheel arch moulding
Body-coloured door handles
LED Front light guide
Gloss black door mirrors
Black door moulding
X-gradation upper front grille
Body-coloured front bumper with silver garnish
Black rocker panel

3-spoke synthetic leather & grain steering wheel
Black rear interior door handles
Black surround on air conditioning buttons
PVC gear leaver
Satin silver front interior door handles

Performance

From road-ready handling to efficient acceleration – discover what makes the Toyota driving performance so special.

MacPherson strut front suspension
Torsion beam rear suspension

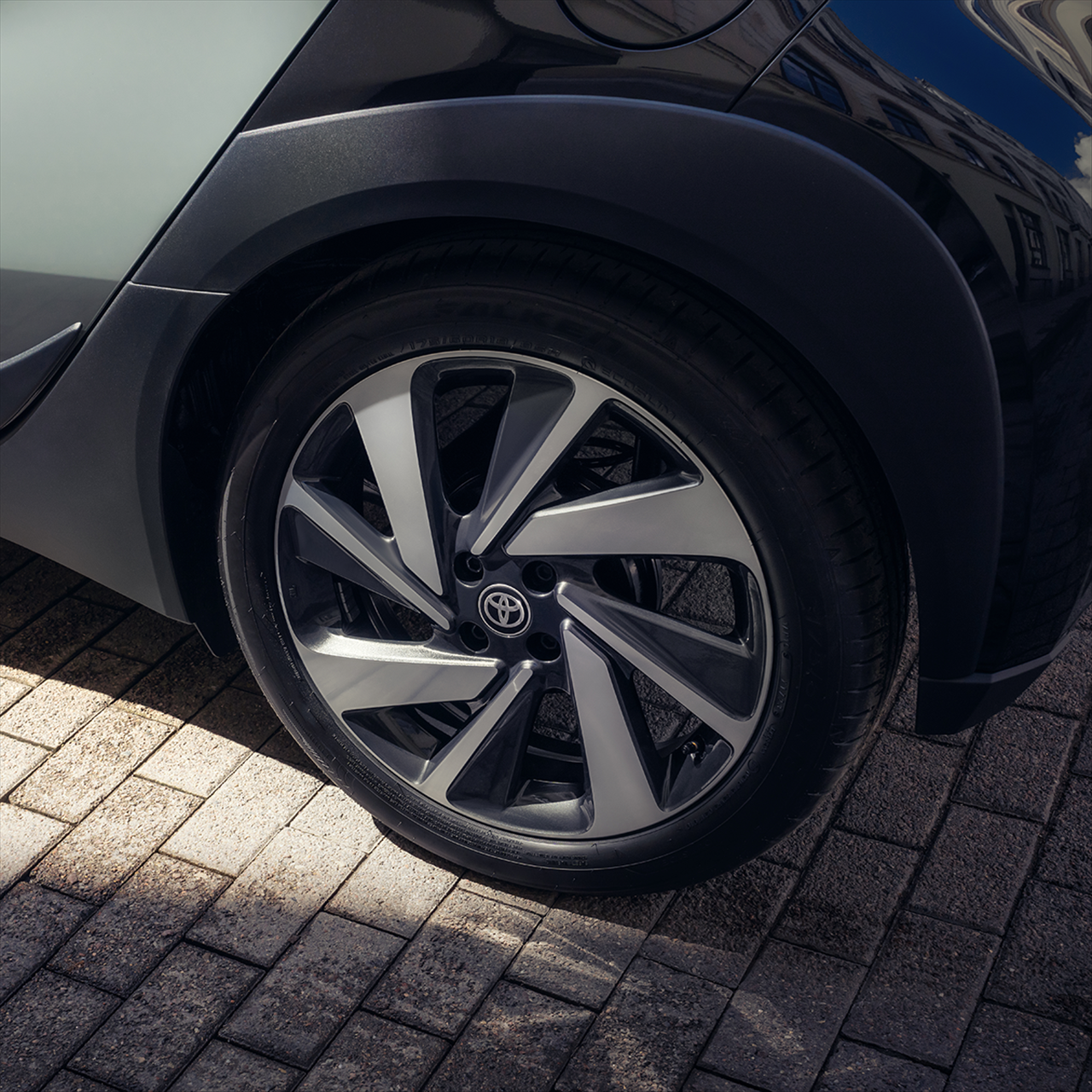

Wheels

Choose from Toyota's selection of premium wheels to suit your driving style.

Tyre Repair Kit

Comfort

Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs to heating that keeps you warm when it's cold outside.

Auto headlights
Automatic headlight cut-off
Boot door release with Push-button
Power-adjustable door mirrors
Electric heated door mirrors
Follow-me-home headlights
Headlight cut-off reminder
Manually retractable door mirrors
Remote door lock

Power height-adjustable passenger seat
12v power outlet - Front
50:50 split-folding 2nd row rear seats
7" Digital Combimeter
Adaptive Cruise Control switch on steering wheel
Adjustable Speed Limiter switch on steering wheel
Audio switches on steering wheel
Automatic air conditioning
Boot light
Centre room light
Child safety door lock
Colour multi-information display
Digital speedometer
Digital tachometer
Front power windows
Electric Power Steering (EPS)
Gear Shift Indicator
Height-adjustable driver seat
Hybrid System Indicator
Intermittent windscreen wipers
Key reminder warning
Lane Departure Alert (LDA) switch on steering wheel
Manual day/night rear-view mirror
Manual tilt steering wheel
Mirror on driver sun visor
Mirror on passenger sun visor
Multi-info switches on steering wheel
Pollen air filter
Rear window defogger
Rear window wiper
Reversing Camera display in multimedia system
Static guide lines on Reversing Camera
Telephone switches on steering wheel
Variable intermittent windscreen wipers
Voice recognition switch on steering wheel
Electronic parking brake with hold function

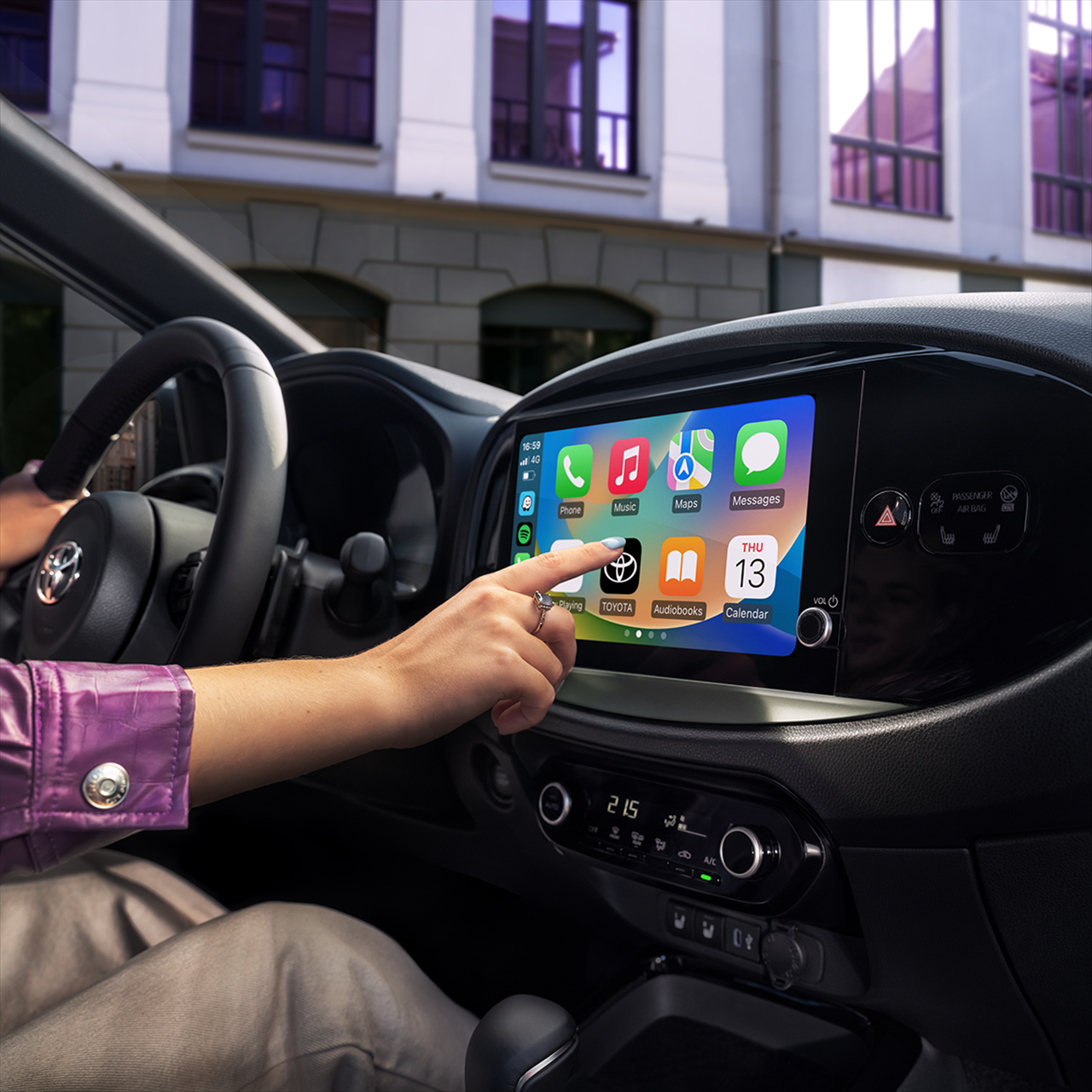

Multimedia

Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.

4 speakers
Bluetooth® Connectivity
Digital Audio Broadcast (DAB)
Smartphone integration incl Apple CarPlay™ & Android Auto™
9" Toyota Touch® 3 multimedia system with Wireless Smartphone integration incl Apple CarPlay™ & Android Auto™
Toyota Touch® 3 multimedia system
Front USB-C device charger
USB Type-C connector

Protection

The world places a lot of demand on your car, from rock chips and paint scratches to everyday weathering. Take care of the vehicle that drives your future with a protection package.

Floor mats
Aygo X logo on floor mats
