Configure your Proace Sport Ply Lining

Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

Engine

2.2 Diesel (180hp), Automatic

CO2 Combined WLTP (g/km)
181 g/km

Fuel Economy - Combined WLTP (mpg)
40.9 mpg

Fuel Economy - Combined WLTP (l/100km)
6.9 l/100 km

£28,472.60 (Excl. VAT)£36,503.33 (Excl. VAT)

2.2 Diesel (180hp)

2.2 Diesel (180hp), Automatic

CO2 Combined WLTP - Max (g/km)198 g/km
CO2 Combined WLTP (g/km)181 g/km
Fuel Economy - Combined WLTP (mpg)40.9 mpg
Fuel Economy - Combined WLTP - Min (mpg)37.6 mpg
Fuel Economy - Combined WLTP (l/100km)6.9 l/100 km
Figures are provided for comparability purposes; only compare fuel consumption and CO₂ figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the accessories fitted (post-registration), variations in weather, driving styles and vehicle load.
All-Electric

75kWh Battery & 100kW Electric Motor (136hp), Automatic

CO2 Combined WLTP (g/km)
0.00 g/km

Fuel Economy - Combined WLTP (mpg)
0 mpg

Fuel Economy - Combined WLTP (l/100km)
0.00 l/100 km

Electric Range
218.1 miles

Electric Range
194.49 miles

Rapid Charging Time
45 mins (approx)

£44,003.33 (Excl. VAT)

75kWh Battery & 100kW Electric Motor (136hp)

All-Electric

75kWh Battery & 100kW Electric Motor (136hp), Automatic

CO2 Combined WLTP - Max (g/km)0 g/km
CO2 Combined WLTP (g/km)0.00 g/km
Fuel Economy - Combined WLTP (mpg)0 mpg
Fuel Economy - Combined WLTP - Min (mpg)0 mpg
Fuel Economy - Combined WLTP (l/100km)0.00 l/100 km
Battery electric vehicle requiring mains electricity for charging. Indicative charge time, for comparison purposes. Actual charging times may vary depending on various factors, including the selected vehicle (and battery option, if available), the age, type, condition and temperature of the charging unit and the battery, the starting charge, the power supply to and usage of the charger and the environmental conditions at the point of use. These figures may not reflect your real life driving results.  Charge times will be longer in colder weather and if battery temperature activates safeguarding technology. 150kW+ chargers are available in mainland Great Britain primarily on major arterial routes – see Zap Map for details. They are not yet available in Northern Ireland and availability is limited in Scotland, Wales and in rural areas.
Skip to spin container

Colour

Skip to spin container

Wheels

17" black painted alloy wheels (5-double-spoke)

17" black painted alloy wheels (5-double-spoke)

Tyre info

Supplier name or trademarkMICHELIN
Tyre type identifier410249
Tyre size designation215/60R17C
Load-capacity index104
Speed category symbolH
Fuel efficiency classC
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/01/2015
Supplier name or trademarkMICHELIN
Commercial name or trade designationAGILIS 3
Tyre type identifier411904
Tyre size designation215/60R17C
Load-capacity index109
Speed category symbolT
Fuel efficiency classB
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/02/2020
Skip to spin container

Upholstery

Skip to spin container

Packs & Extras

Exterior
Safety
  • Meroni Smart Locks (3 Locks)
    Meroni Smart Locks (3 Locks) 1 extras
    Security Door Lock

Interior
Safety
  • Safety Hammer - Life Hammer Plus
    Safety Hammer - Life Hammer Plus 1 extras
    Safety Hammer

    This automotive emergency hammer allows the driver or his passengers to smash a window (tempered glass only) in case of an emergency. The hammer comes with a quick click holder.

Exterior

Storage
  • Roof Platform (L1) - Silver

    Roof Platform (L1) - Silver

    Made of aluminium tube and extrusion to be strong yet also light in weight. It has an integrated rooftop walkway and a ladder roller across the full width of the platform.

Skip to spin container
£30,184.33 (Excl. VAT)£38,215.06 (Excl. VAT)
Summary
Get a quote

Summary

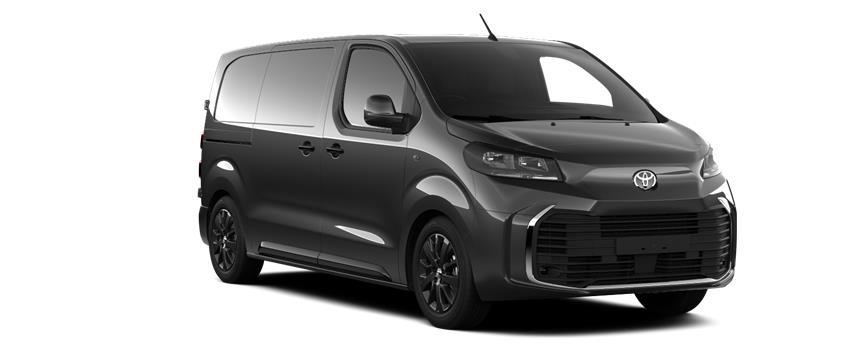

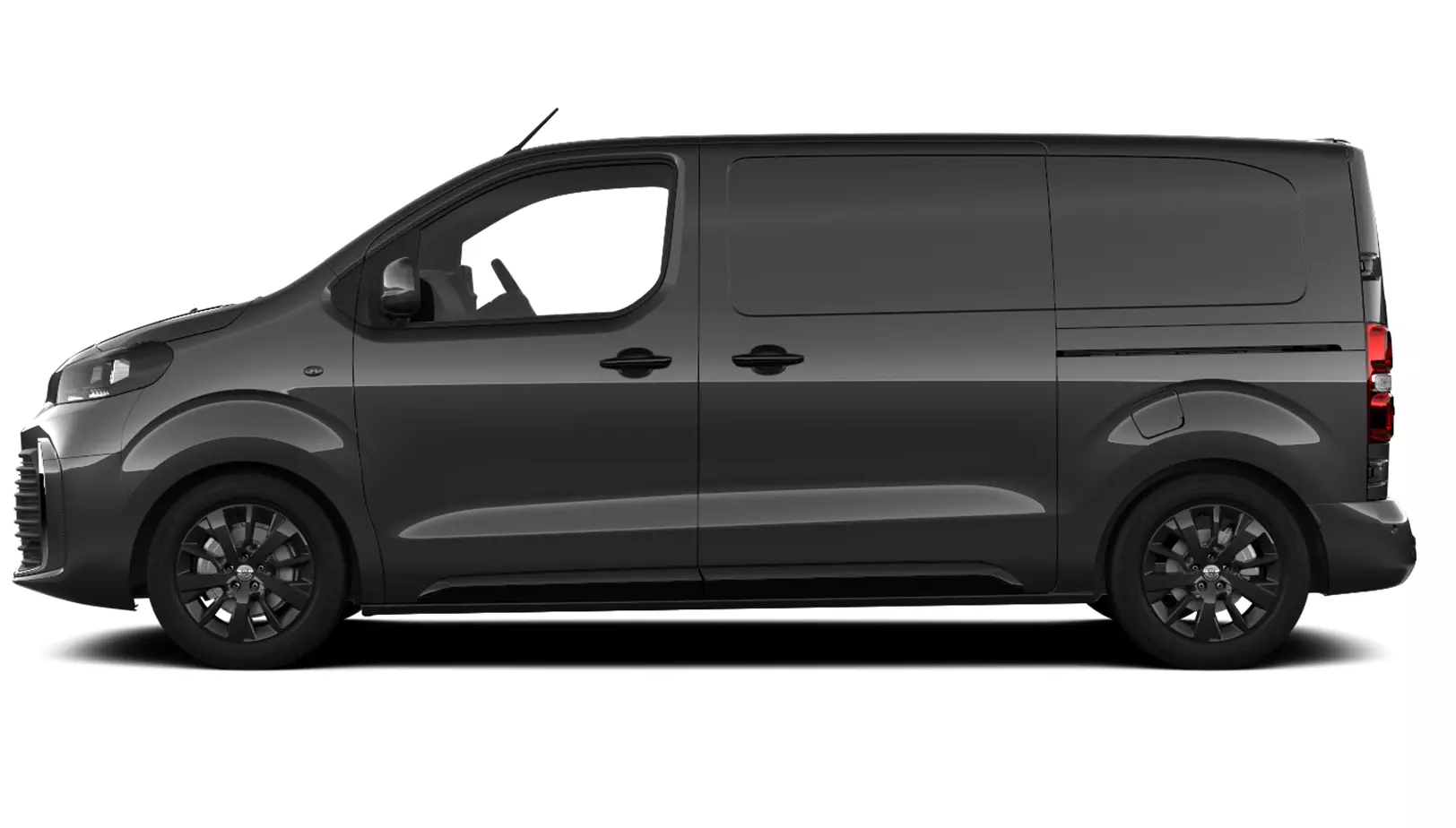

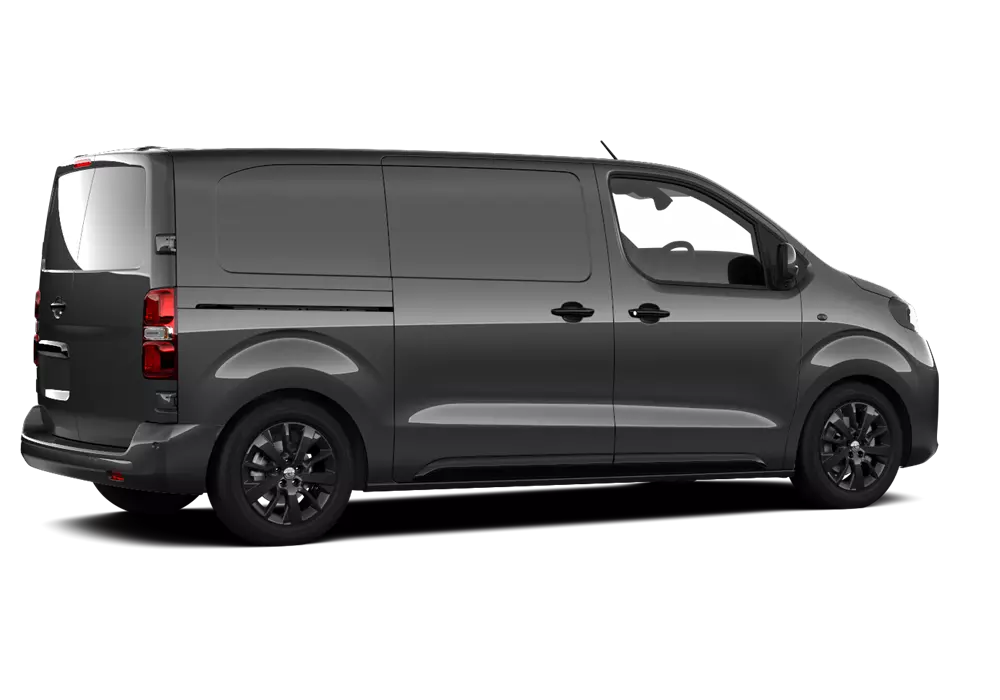

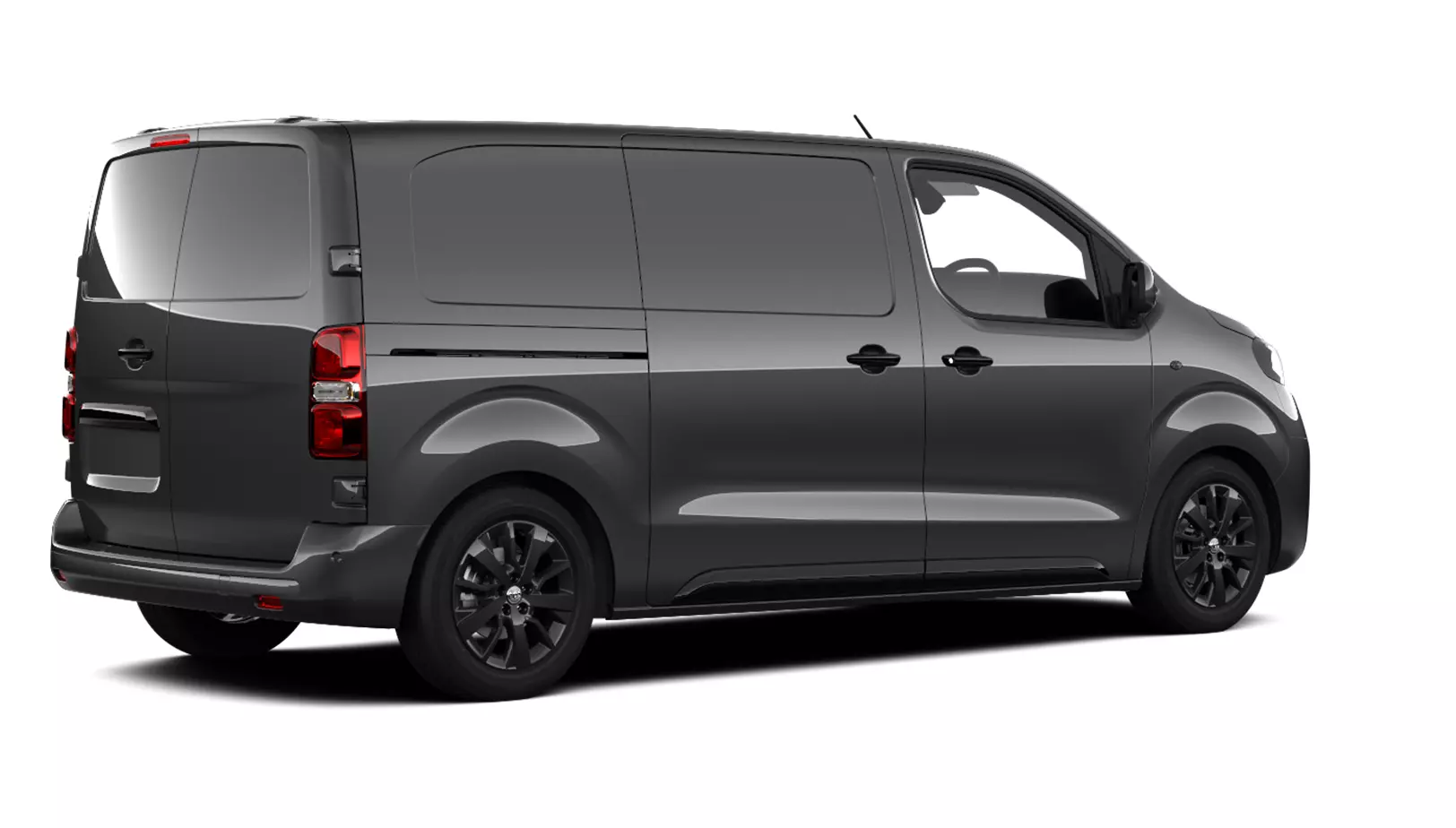

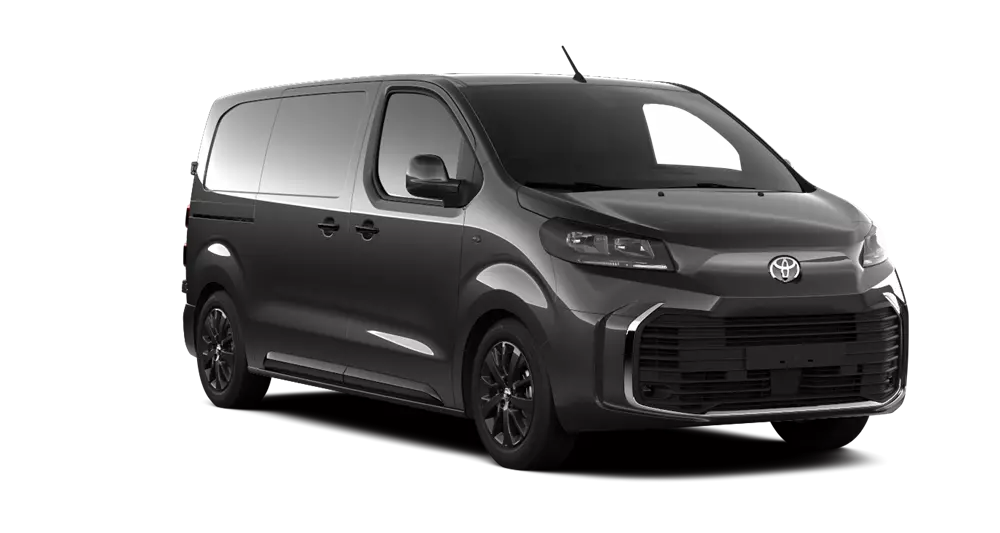

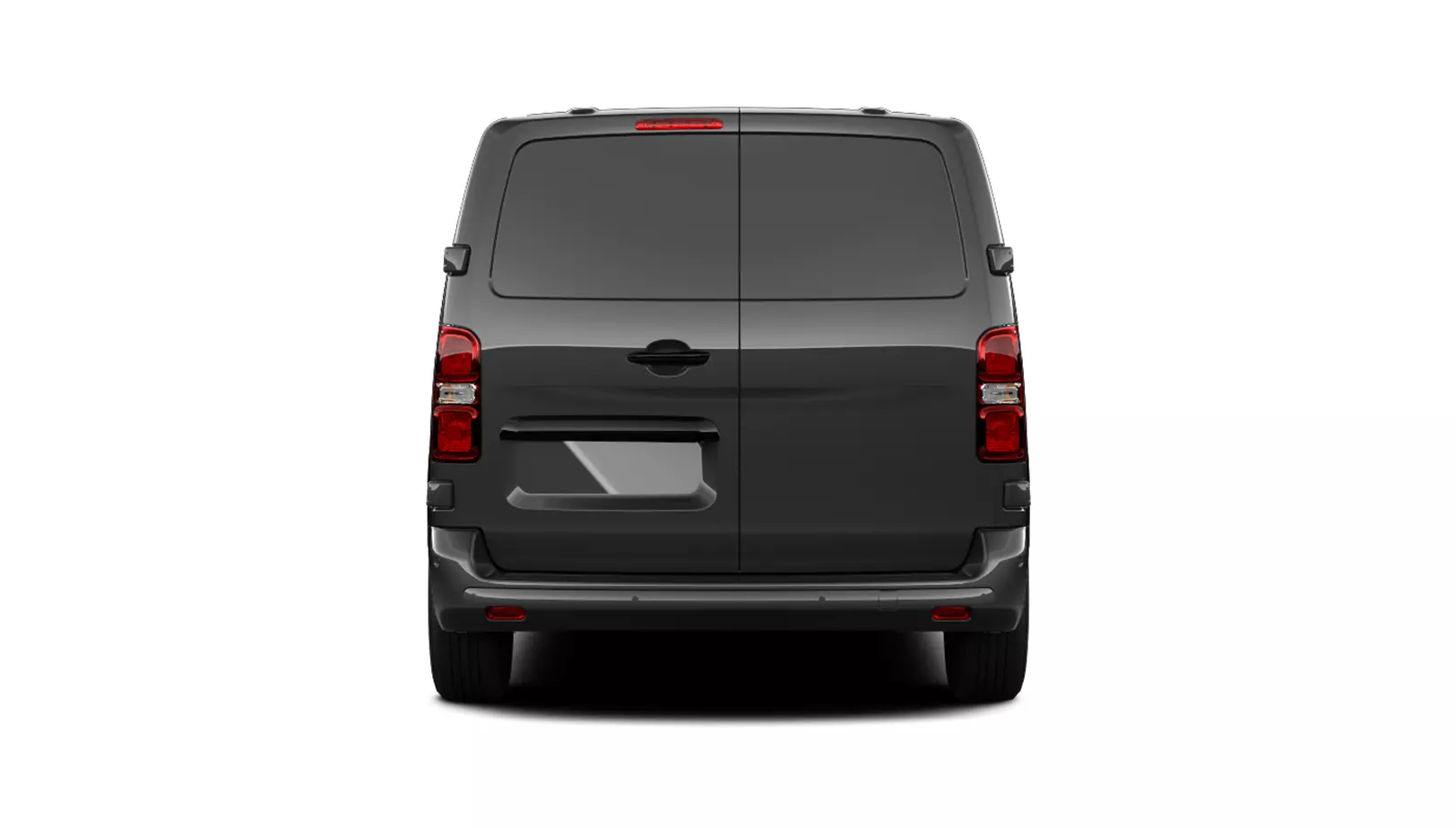

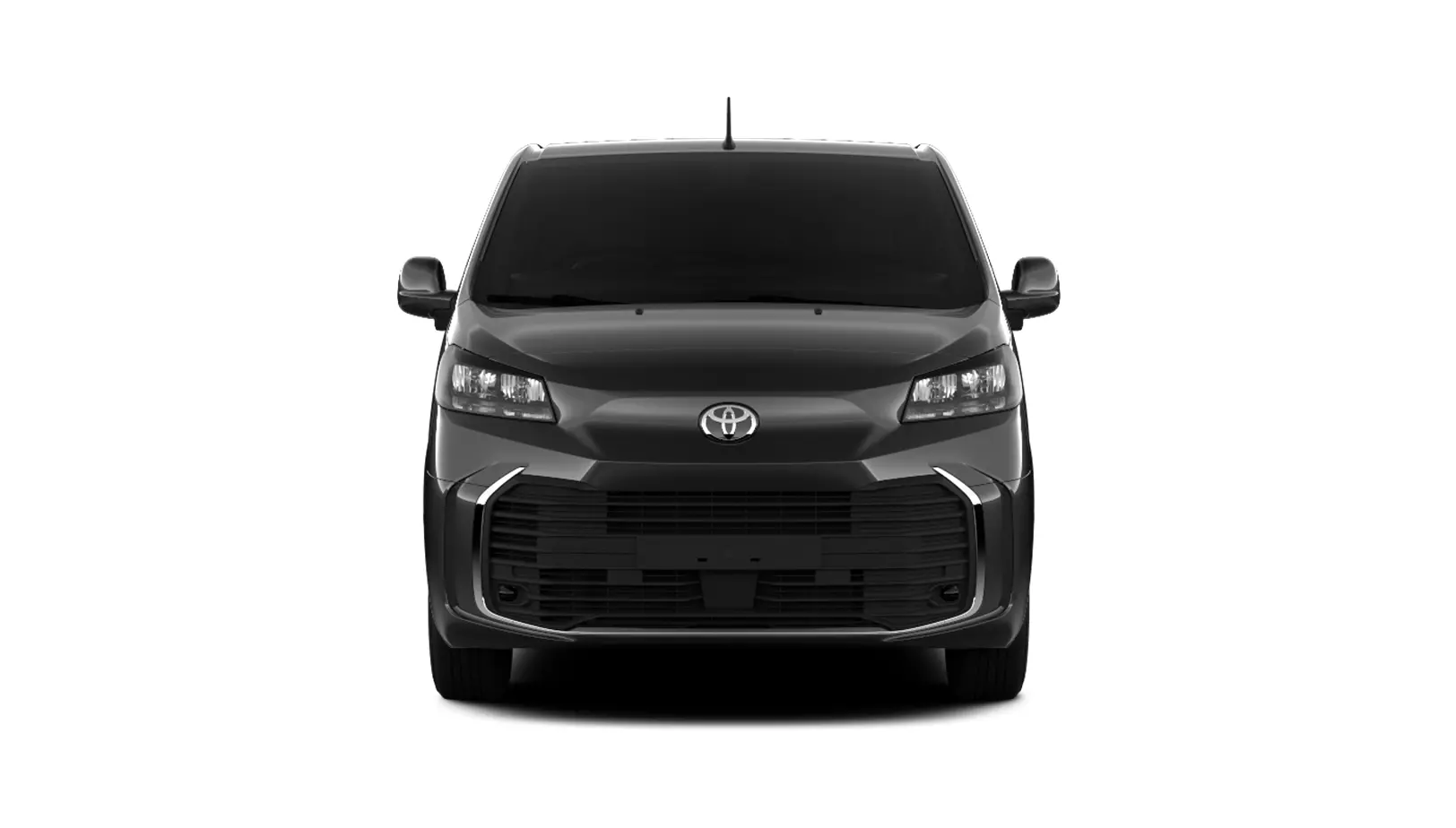

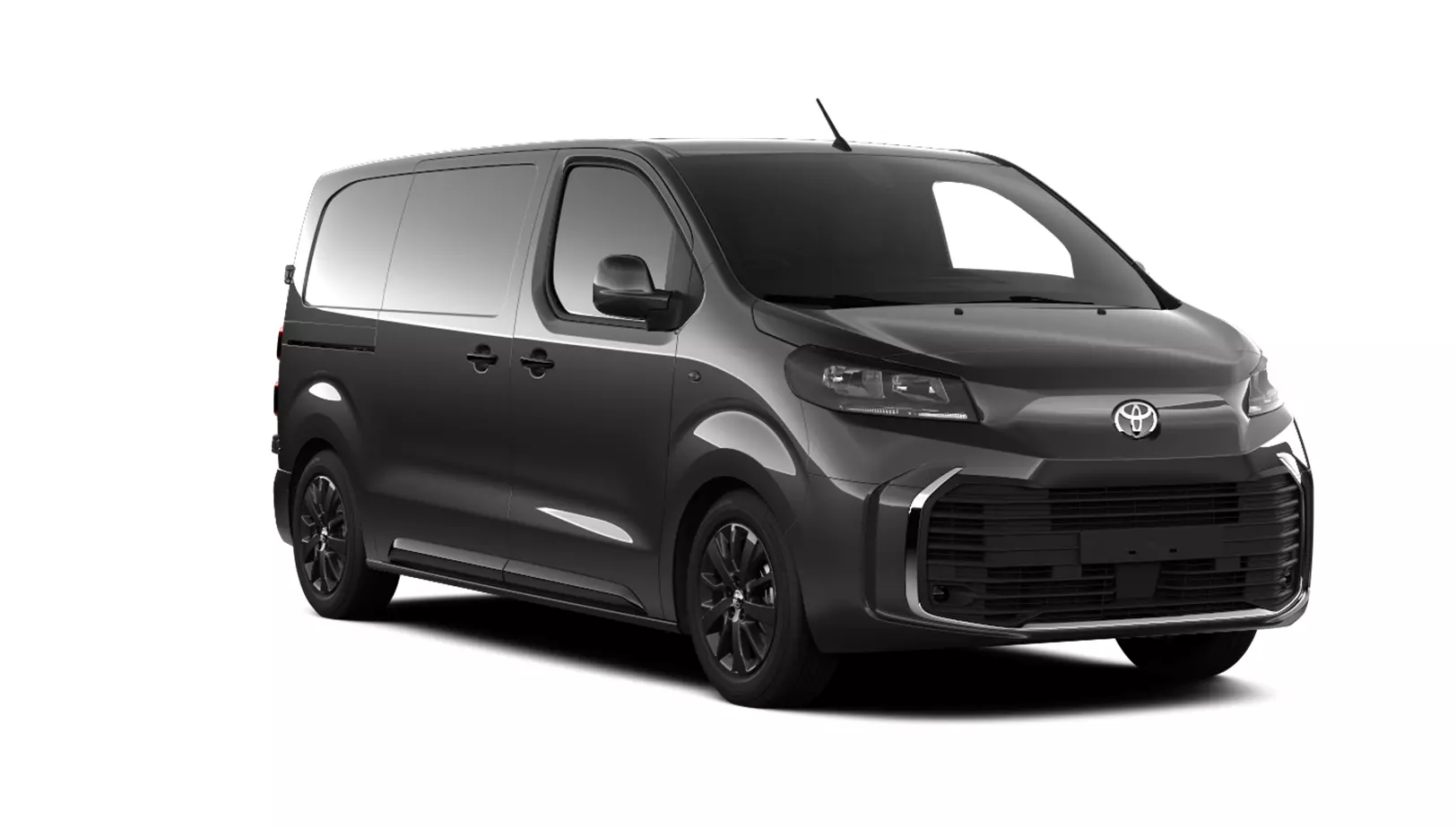

Proace Sport Ply Lining

Starting price
£28,472.60 (Excl. VAT)£36,503.33 (Excl. VAT)

  • Engine

    Front Wheel Drive - FWD
    2.2 Diesel (180hp), Automatic

  • Colour

    • Falcon Grey (Metallic Paint)

      Metallic

      + £608.33 (Excl. VAT)

  • Wheels

    • 17" black painted alloy wheels (5-double-spoke)

      Included

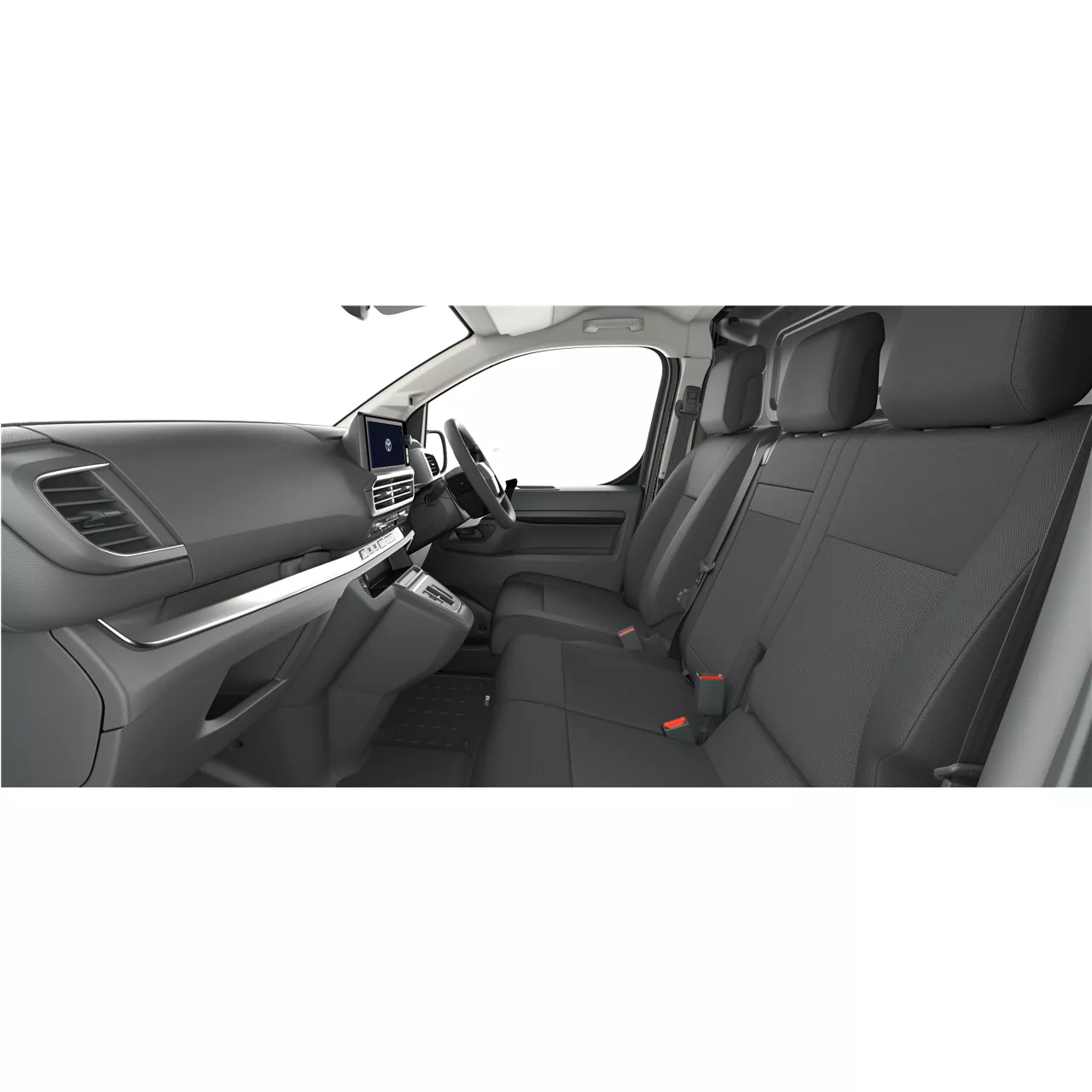

  • Upholstery

    • Dark Grey Fabric

      Included

  • Packs & Extras

Other Costs

Tax and Costs

Includes 1st Year VED based on CO2 emissions of 181 g/km

£360.00

Immatruculation tax is calculated based on the region you live in. Please select your region to calculate the exact cost.

Delivery fee
£667.00
License plate fee
£21.67
Registration fee
£55.00

  • Part Exchange

    Use the value of your current vehicle towards the cost of your new Toyota. For an instant quote, all we need is your registration, mileage and a few details about its condition.

Specifications

Technical specifications

Engine

  • Displacement (cc)

    2184 cc

  • Bore x Stroke (mm x mm)

    83.8 x 99 mm

  • Maximum Output (DIN hp)

    180 DIN hp

  • Maximum Output (kW@rpm)

    132 kW@rpm

  • Maximum Torque (Nm@rpm)

    400/1500- Nm

Transmission

  • Transmission Type

    Automatic

  • Drive

    FWD

Performance

  • Maximum Speed (mph)

    114 mph

  • Acceleration 0-62 (mph)

    12.6 seconds

Suspension

  • Suspension Front

    Pseudo McPherson with anti-roll bar

  • Suspension Rear

    Oblique Wishbone Trailing Arms

Brakes

  • Brakes Front

    Ventilated Disc

  • Brakes Rear

    Disc

Weights & Towing Capacity

  • Gross Train Weight - Total (kg)

    4900 kg

  • Gross Vehicle Weight (kg)

    3100 kg

  • Kerb Weight / Unladen Weight (kg)

    1804-2010 kg

  • Payload (kg)

    1400 kg

  • Maximum Trailer Weight - Braked (kg)

    2500 kg

  • Maximum Trailer Weight - Unbraked (kg)

    750 kg

  • Gross Vehicle Weight - Front (kg)

    1575 kg

  • Gross Vehicle Weight - Rear (kg)

    1800 kg

Exterior dimensions

  • Exterior Length (mm)

    4981 mm

  • Exterior Width (mm)

    1924 mm

  • Exterior Height (mm)

    1955 mm

  • Front Tread (mm)

    1630 mm

  • Rear Tread (mm)

    1618 mm

  • Overhang Front (mm)

    902 mm

  • Overhang Rear (mm)

    803 mm

  • Wheelbase (mm)

    3275 mm

Interior dimensions

  • Number of Seats

    3 seats

  • Interior length (mm)

    3161 mm

  • Interior Width (mm)

    1515 mm

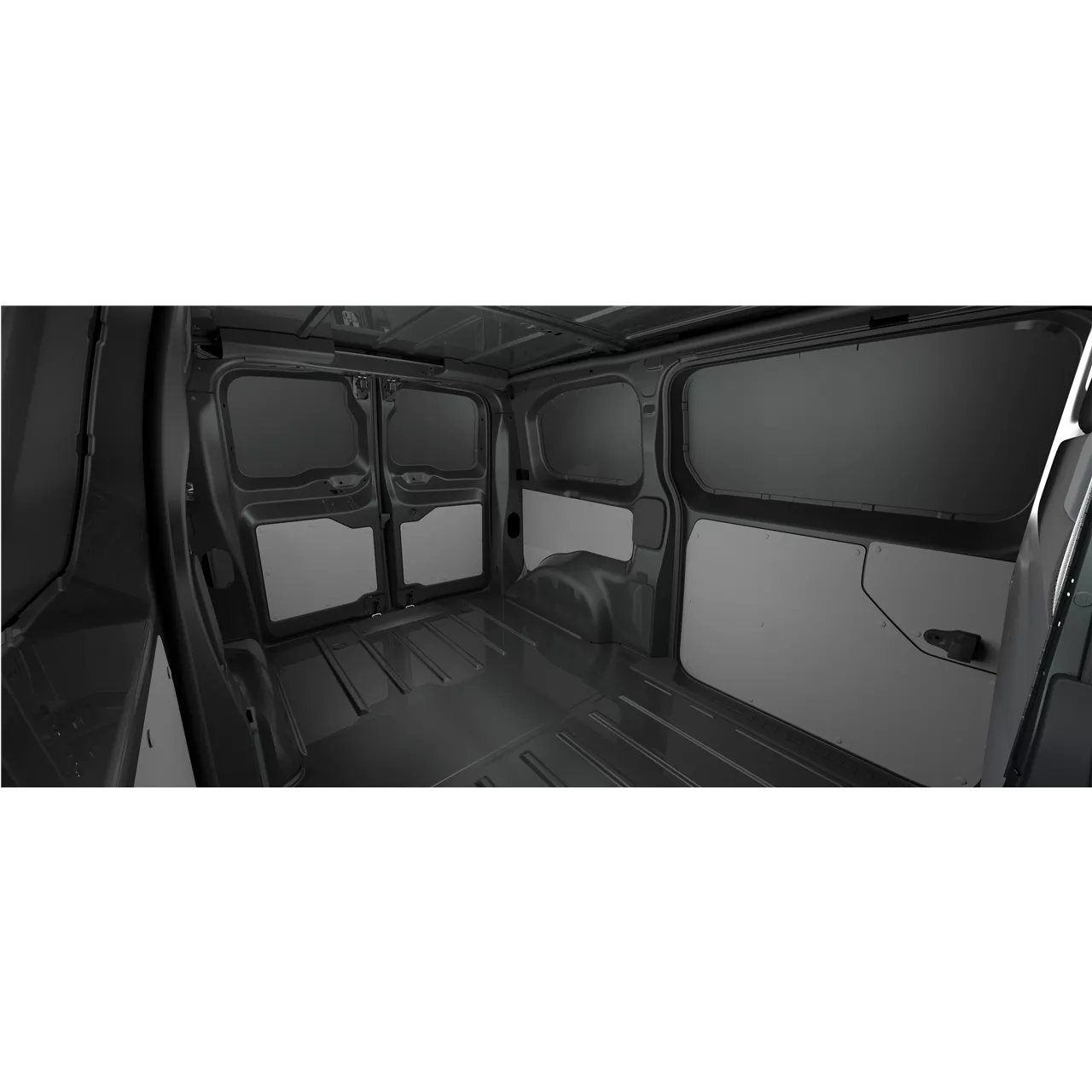

Luggage volume

  • Deck Length (mm)

    2512 mm

  • Deck Width (mm)

    1636 mm

  • Deck Height (mm)

    1397 mm

  • Load Volume (m³)

    5.8 m³

Steering

  • Turning Radius Tyre (m)

    12.4 m

  • Turning Radius Body (m)

    12.9 m

Off Road

  • Minimum Running Ground Clearance (mm)

    150 mm

  • Approach Angle (°)

    16.8 °

  • Departure Angle (°)

    21.4 °

Exterior

Wheels

  • Full size Temporary spare wheel

Styling

  • Body-coloured front & rear bumper

  • Chrome insert on upper front grille

  • Body-coloured rear bumper

  • Silver surround on lower front grille

  • Silver surrounds on front fog lights

  • Body-coloured rail cover on side sliding door

  • Privacy Glass - 30% (Smoke tint)

  • Black painted door handles

  • Black painted door mirrors

Comfort

  • 180° opening on rear wing doors

  • Auto headlights

  • Power-adjustable door mirrors

  • Electric heated door mirrors

  • Panel rear wing doors

  • Power retractable door mirrors

  • Remote door lock

  • Smart Entry & Push-button Start

  • Two sliding side doors

Protection

  • Black Painted protection moulding on side doors

Performance

  • Payload - Extra

Safety

  • Anti-tamper alarm

  • Auto wipers

  • Automatic High Beam

  • Cruise Control

  • Driver Attention Alert

  • Glass-breaking alarm sensors

  • Hill-start Assist Control

  • Intrusion Alarm

  • Lane Departure Alert

  • LED Front fog lights

  • Motion sensor alarm

  • Multi-reflector halogen headlights

  • Rear parking sensors

  • Tyre Pressure Warning System

  • Speed limiter with Road Sign Assist

  • Driver Monitoring Camera

  • Intelligent Speed Assist

  • eCall emergency call system

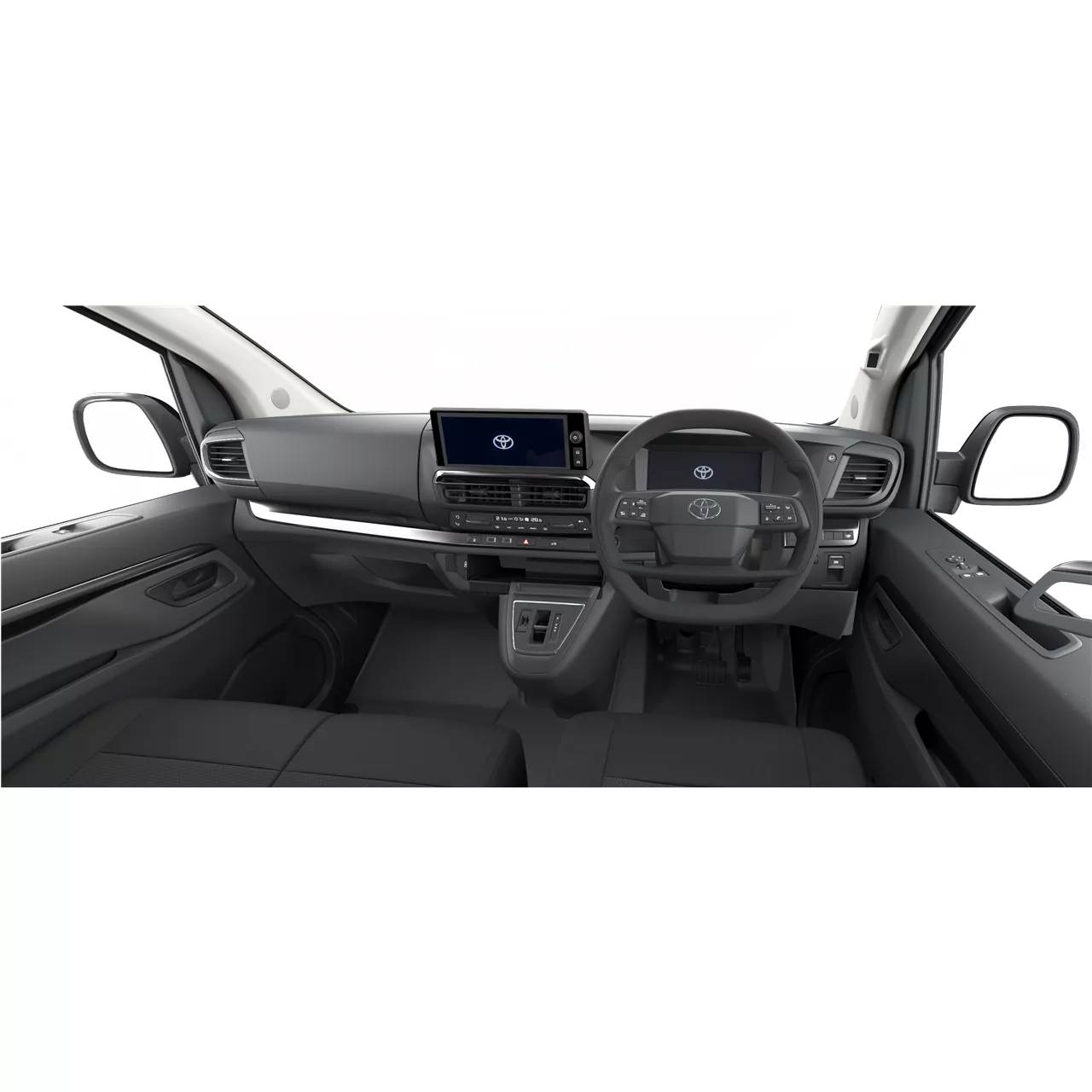

Interior

Multimedia

  • 4 speakers

  • 10" Toyota Pro-touch Multimedia High with Navigation

  • Digital Audio Broadcast (DAB)

  • USB Type-C connector

  • 10" Toyota Smart Connect with Smartphone integration including Apple CarPlay™

  • Toyota Smart Connect with Smartphone integration including Apple CarPlay™ Multimedia system

Styling

  • 3-spoke Urethane steering wheel

  • Chrome side air vent surrounds

  • C-pillar cover

  • Chrome centre air vent surround

  • Palladium insert on dashboard

  • Palladium deco line on front door trim

Comfort

  • 12v power outlet - Cargo area

  • 12v power outlet - Front

  • 2-seater front passenger bench

  • Adjustable lumbar support on driver seat

  • Audio switches on steering wheel

  • Automatic air conditioning

  • Cargo area room lights x 2

  • Colour multi-information display

  • Driver & front passenger personal lights

  • Drivers armrest

  • Front power windows

  • Auto up & down function on power windows

  • Front room light

  • Height-adjustable driver seat

  • Lane Departure Alert switch on steering wheel

  • Manually reclining driver seat

  • Manually sliding driver seat

  • Noise reduction layer on front windows

  • Power door lock

  • Push-button start

  • Wireless mobile phone charger

  • Cruise Control switch behind steering wheel

  • 10" screen for multi-information display

Storage

  • Closed upper dashboard storage compartment

  • Cooler in upper glovebox

  • Front cup holders

  • Front door pockets

  • Smart Cargo

  • Plastic floor trim in driver cabin

Performance

  • Stop & Start System

Safety

  • Panel bulkhead

  • Supplemental Restraint System - 2 airbags

  • Driver & passenger front airbag

Environmental Performance

  • CO2 Combined WLTP - Max (g/km)

    198 g/km

  • CO2 Combined WLTP (g/km)

    181 g/km

  • Fuel Economy

    37.6 - 40.9 mpg

  • Fuel Economy - Combined WLTP (l/100km)

    6.9 l/100 km

  • Carbon Monoxide, CO (mg/km)

    51.6 mg/km

  • Hydrocarbons, THC & Nitrogen Oxides, NOx (mg/km)

    27.7 mg/km

  • Nitrogen Oxides, NOx (mg/km)

    16.5 mg/km

  • Sound Level Drive By (dB(A))

    69.0 dB(A)

  • Euro Class

    EURO 6 EB

  • Total

    £30,184.33 (Excl. VAT)£38,215.06 (Excl. VAT)
