Configure your Proace Active Platform Cab

Configure your perfect car, from alloy to accessories
Return to configuration
Back to model page

Engine

All-Electric

75kWh Battery & 100kW Electric Motor (136hp), Automatic

CO2 Combined WLTP (g/km)
0.00 g/km

Electric Range
132.35 miles

Electric Range
120.55 miles

Rapid Charging Time
45 mins (approx)

£27,914.83 (Excl. VAT)£39,878.33 (Excl. VAT)

75kWh Battery & 100kW Electric Motor (136hp)

All-Electric

75kWh Battery & 100kW Electric Motor (136hp), Automatic

CO2 Combined WLTP - Max (g/km)0 g/km
CO2 Combined WLTP (g/km)0.00 g/km
Electric Range – Combined WLTP (miles)132.35 miles
Electric Consumption (Wh/km)363 Wh/km
Electric Consumption - Max (Wh/km)363 Wh/km
Battery electric vehicle requiring mains electricity for charging. Indicative charge time, for comparison purposes. Actual charging times may vary depending on various factors, including the selected vehicle (and battery option, if available), the age, type, condition and temperature of the charging unit and the battery, the starting charge, the power supply to and usage of the charger and the environmental conditions at the point of use. These figures may not reflect your real life driving results.

Charge times will be longer in colder weather and if battery temperature activates safeguarding technology. 150kW+ chargers are available in mainland Great Britain primarily on major arterial routes – see Zap Map for details. They are not yet available in Northern Ireland and availability is limited in Scotland, Wales and in rural areas.

2.2 Diesel (150hp), Manual

CO2 Combined WLTP (g/km)
243 g/km

Fuel Economy - Combined WLTP (mpg)
30.3 mpg

Fuel Economy - Combined WLTP (l/100km)
9.3 l/100 km

£23,337.60 (Excl. VAT)£29,920.00 (Excl. VAT)

2.2 Diesel (150hp)

2.2 Diesel (150hp), Manual

CO2 Combined WLTP - Max (g/km)288 g/km
CO2 Combined WLTP (g/km)243 g/km
Fuel Economy - Combined WLTP (mpg)30.3 mpg
Fuel Economy - Combined WLTP - Min (mpg)25.9 mpg
Fuel Economy - Combined WLTP (l/100km)9.3 l/100 km
Figures are provided for comparability purposes; only compare fuel consumption and CO₂ figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results. All vehicles are certified according to the World Harmonised Light Vehicle Test Procedure (WLTP). Please visit the Vehicle Certification Agency website for the latest information. Choice of options and accessories fitted (pre-registration) may affect the official CO₂ figures, car tax and 'on the road' price. Find out more about WLTP or contact your local Toyota Centre.
Skip to spin container

Colour

Skip to spin container

Wheels

16" Steel wheels

16" Steel wheels

Tyre info

Supplier name or trademarkMICHELIN
Commercial name or trade designationAGILIS 3
Tyre type identifier409640
Tyre size designation215/65R16C
Load-capacity index106
Speed category symbolT
Fuel efficiency classB
Wet grip classA
External rolling noise classB
External rolling noise value72
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start1/01/2019
Supplier name or trademarkGOODYEAR
Commercial name or trade designationEFFICIENTGRIP CARGO 2
Tyre type identifier1997431
Tyre size designation215/65R16C
Load-capacity index106
Speed category symbolH
Fuel efficiency classA
Wet grip classA
External rolling noise classB
External rolling noise value71
Severe snow tyreNot Applicable
Ice tyreNot Applicable
Date of start16/07/2024
Skip to spin container

Upholstery

Skip to spin container

Packs

Interior
Safety
  • Safety Hammer - Life Hammer Plus
    Safety Hammer - Life Hammer Plus 1 extras
    Safety Hammer

    This automotive emergency hammer allows the driver or his passengers to smash a window (tempered glass only) in case of an emergency. The hammer comes with a quick click holder.

No extras were found
Skip to spin container
£27,914.83 (Excl. VAT)£39,878.33 (Excl. VAT)
Summary
Get a quote

Summary

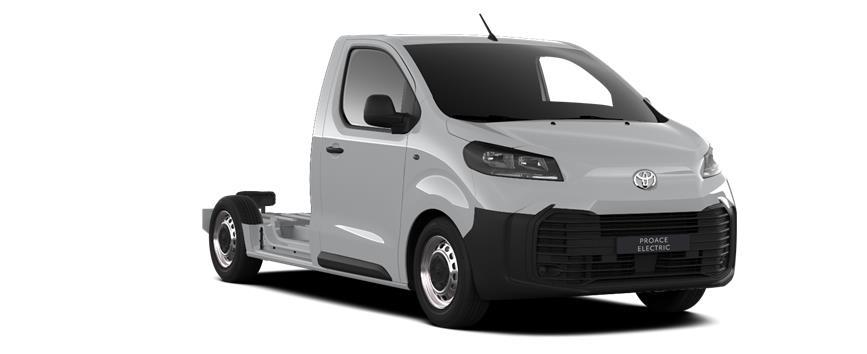

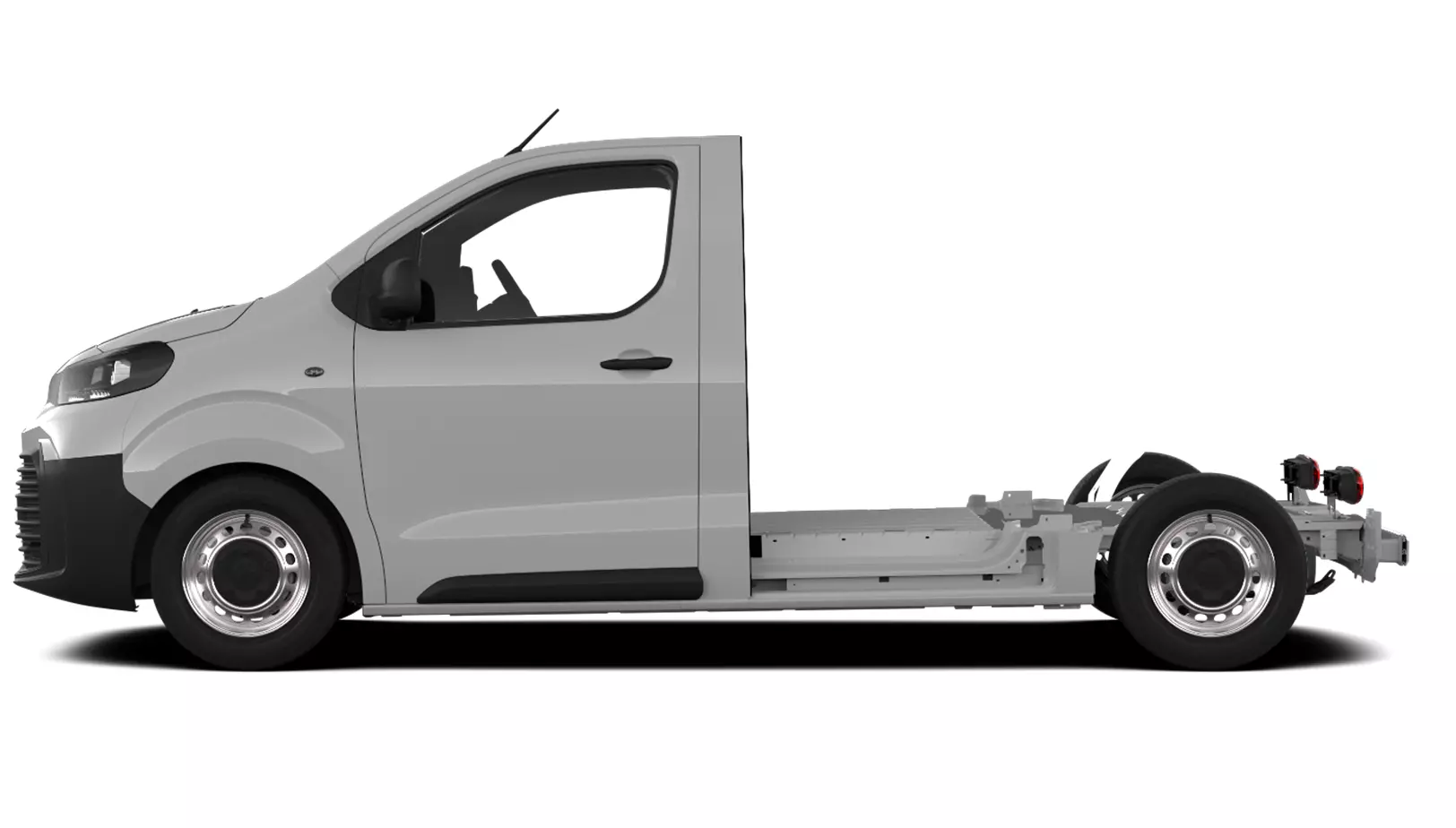

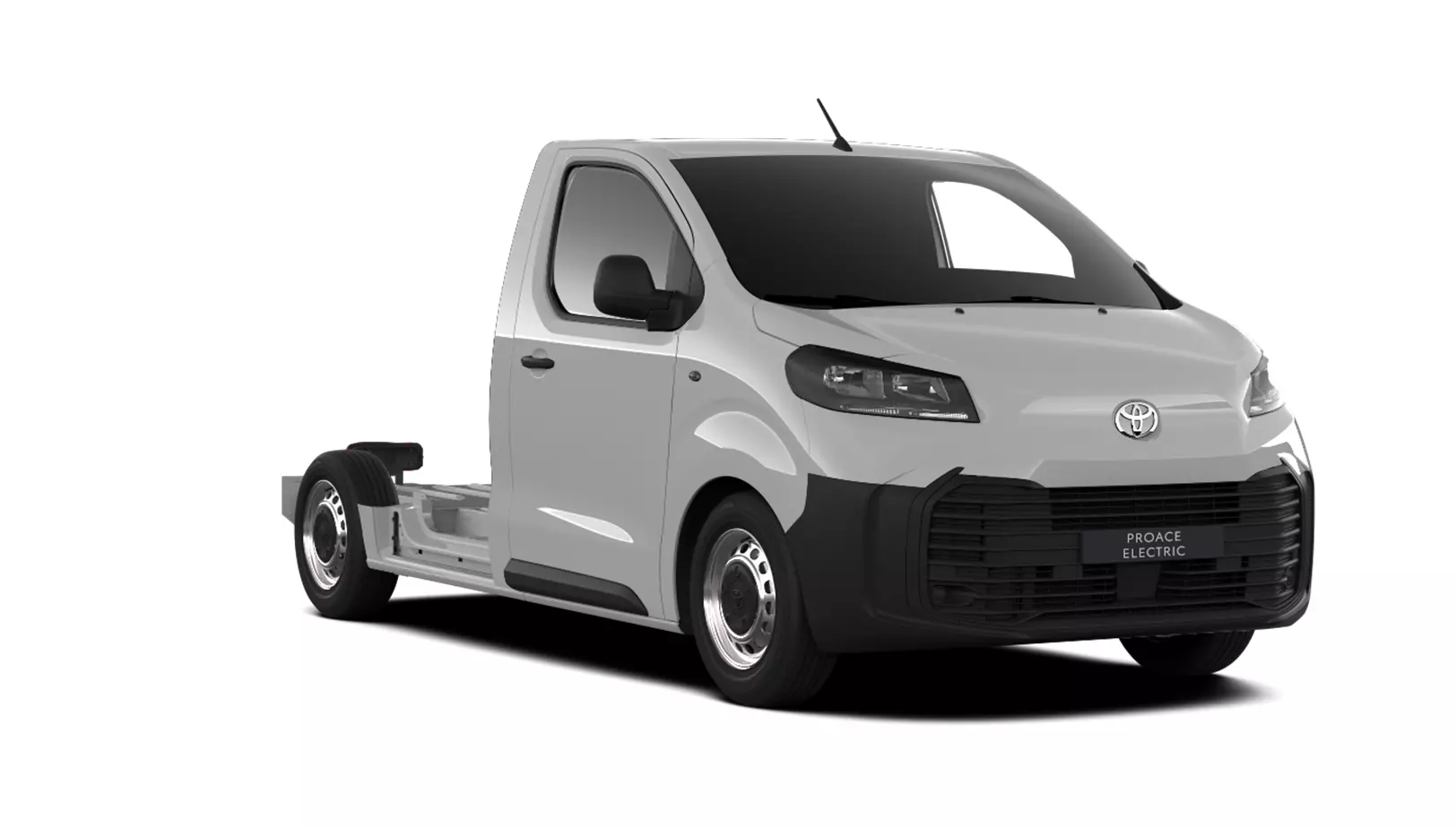

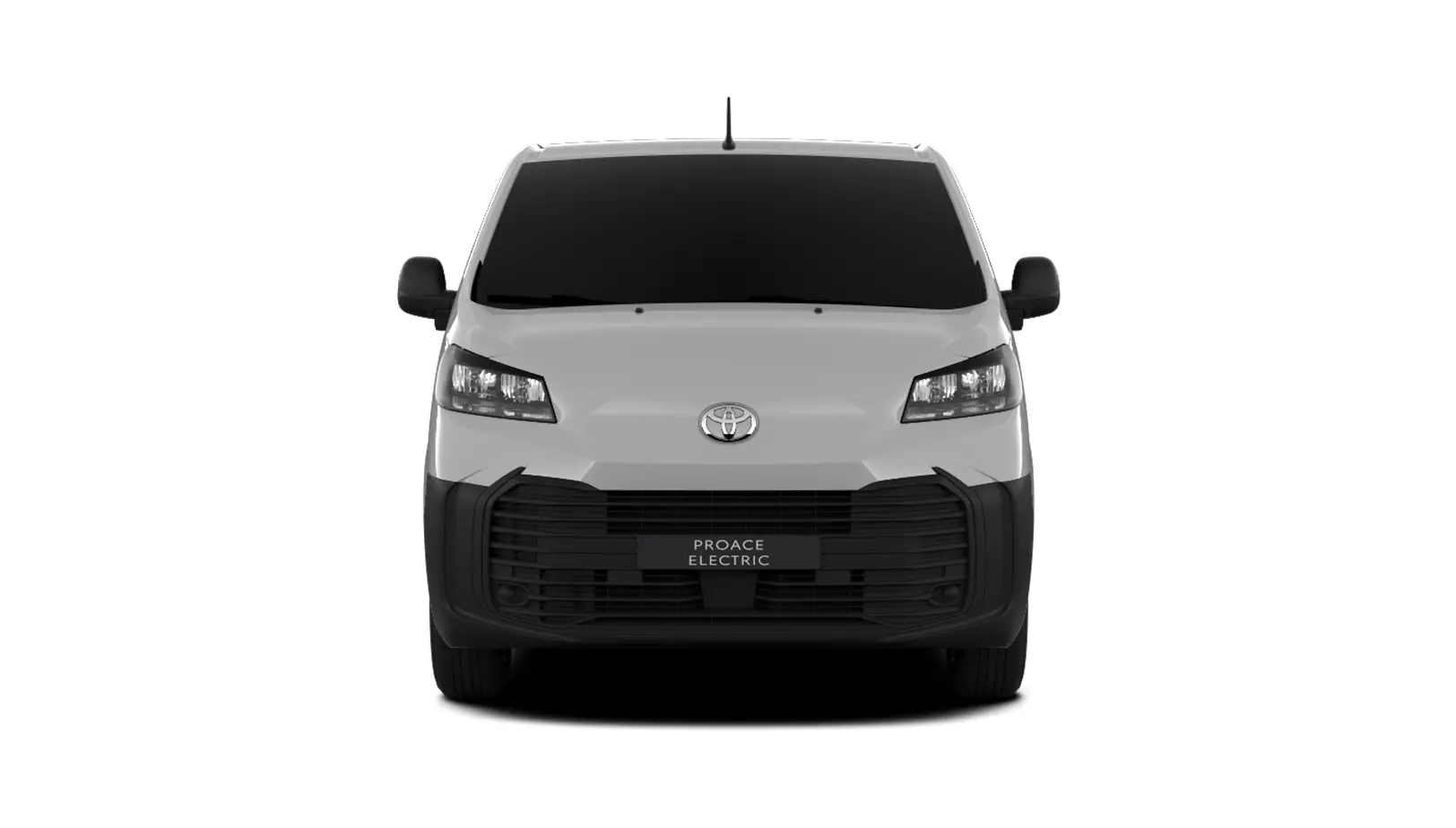

Proace Active Platform Cab

Starting price
£27,914.83 (Excl. VAT)£39,878.33 (Excl. VAT)

  • Engine

    All-Electric

    Front Wheel Drive - FWD
    75kWh Battery & 100kW Electric Motor (136hp), Automatic

  • Colour

    • Icy White (Solid Paint)

      Solid

      Included

  • Wheels

    • 16" Steel wheels

      Included

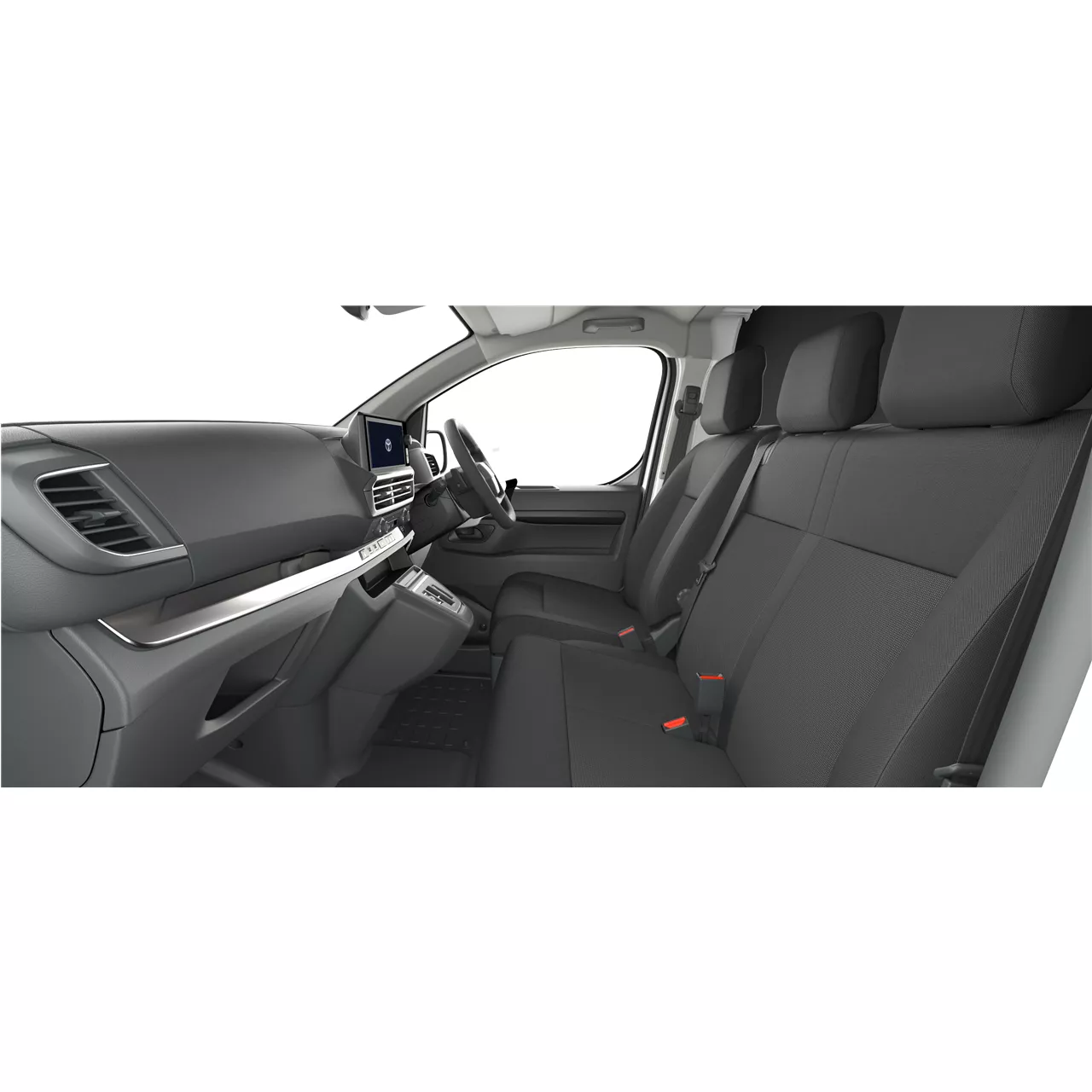

  • Upholstery

    • Dark Grey Fabric

      Included

  • Packs & Extras

Other Costs

Tax and Costs

Includes 1st Year VED based on CO2 emissions of 0.00 g/km

£360.00

Immatruculation tax is calculated based on the region you live in. Please select your region to calculate the exact cost.

  • Part Exchange

    Use the value of your current vehicle towards the cost of your new Toyota. For an instant quote, all we need is your registration, mileage and a few details about its condition.

Specifications

Technical specifications

Engine

  • Total System Output (kW)

    100 kW

  • Maximum Output (DIN hp)

    136 DIN hp

  • Maximum Output (kW@rpm)

    100/ kW@rpm

  • Maximum Torque (Nm@rpm)

    260/- Nm

  • Hybrid Vehicle Battery: Capacity Ah (hr)

    187.5 Ah

  • Hybrid Vehicle Battery: Number Of Modules

    27

  • Total Number Of Cells In Battery Pack

    324

  • Battery Capacity (Usable, kWh)

    69 kWh

  • Rapid Charging Time

    45 mins (approx)

  • 0-100% Charging Time AC (hours)

    11.3 hours (approx)

  • Battery Charging Time (hours) AC Charger

    11.3 hours (approx)

  • Maximum Charging Power AC (kW)

    11 kW

  • Maximum Charging Power DC (kW)

    100 kW

  • Battery Capacity (Ah)

    187.5 Ah

  • Battery Capacity (kWh)

    75 kWh

  • Battery Energy (kWh)

    75 kWh

  • Battery Weight (kg)

    534 kg

  • Electric Front Motor: Type

    ZAE synchronous with permanent magnet / 4 pairs

Transmission

  • Transmission Type

    Automatic

  • Gearbox

    0.00

  • Drive

    FWD

Performance

  • Maximum Speed (mph)

    82 mph

Suspension

  • Suspension Front

    Pseudo McPherson with anti-roll bar

  • Suspension Rear

    Oblique Wishbone Trailing Arms

Brakes

  • Brakes Front

    Ventilated Disc

  • Brakes Rear

    Disc

Weights & Towing Capacity

  • Gross Train Weight - Total (kg)

    4100 kg

  • Gross Vehicle Weight (kg)

    3200 kg

  • Kerb Weight / Unladen Weight (kg)

    1810-1870 kg

  • Payload (kg)

    1400 kg

  • Maximum Trailer Weight - Braked (kg)

    1000 kg

  • Maximum Trailer Weight - Unbraked (kg)

    750 kg

  • Gross Vehicle Weight - Front (kg)

    1530 kg

  • Gross Vehicle Weight - Rear (kg)

    1800 kg

Exterior dimensions

  • Exterior Length (mm)

    4840 mm

  • Exterior Width (mm)

    1920 mm

  • Exterior Height (mm)

    2600 mm

  • Front Tread (mm)

    1630 mm

  • Rear Tread (mm)

    1618 mm

  • Overhang Front (mm)

    902 mm

  • Overhang Rear (mm)

    1033 mm

Interior dimensions

  • Number of Seats

    3 seats

  • Interior length (mm)

    3161 mm

  • Interior Width (mm)

    1515 mm

Luggage volume

  • Load Volume (m³)

    0 m³

Steering

  • Turning Radius Tyre (m)

    12.4 m

  • Turning Radius Body (m)

    12.9 m

Exterior

Wheels

  • Full size Temporary spare wheel

Styling

  • Black door handles

  • Black door mirrors

  • Black front bumper

  • Black insert on upper front grille

  • Privacy Glass - 30% (Smoke tint)

  • Black grained rail cover on side sliding door

Comfort

  • Auto headlights

  • Power-adjustable door mirrors

  • Electric heated door mirrors

  • Manually retractable door mirrors

  • Remote door lock

Storage

  • Electric converter box

Protection

  • Black protection moulding on side doors

Performance

  • Payload - Extra

Safety

  • Anti-tamper alarm

  • Auto wipers

  • Automatic High Beam

  • Cruise Control

  • Driver Attention Alert

  • Glass-breaking alarm sensors

  • Hill-start Assist Control

  • Intrusion Alarm

  • Lane Departure Alert

  • Motion sensor alarm

  • Multi-reflector halogen headlights

  • Tyre Pressure Warning System

  • Speed limiter with Road Sign Assist

  • Driver Monitoring Camera

  • Intelligent Speed Assist

  • eCall emergency call system

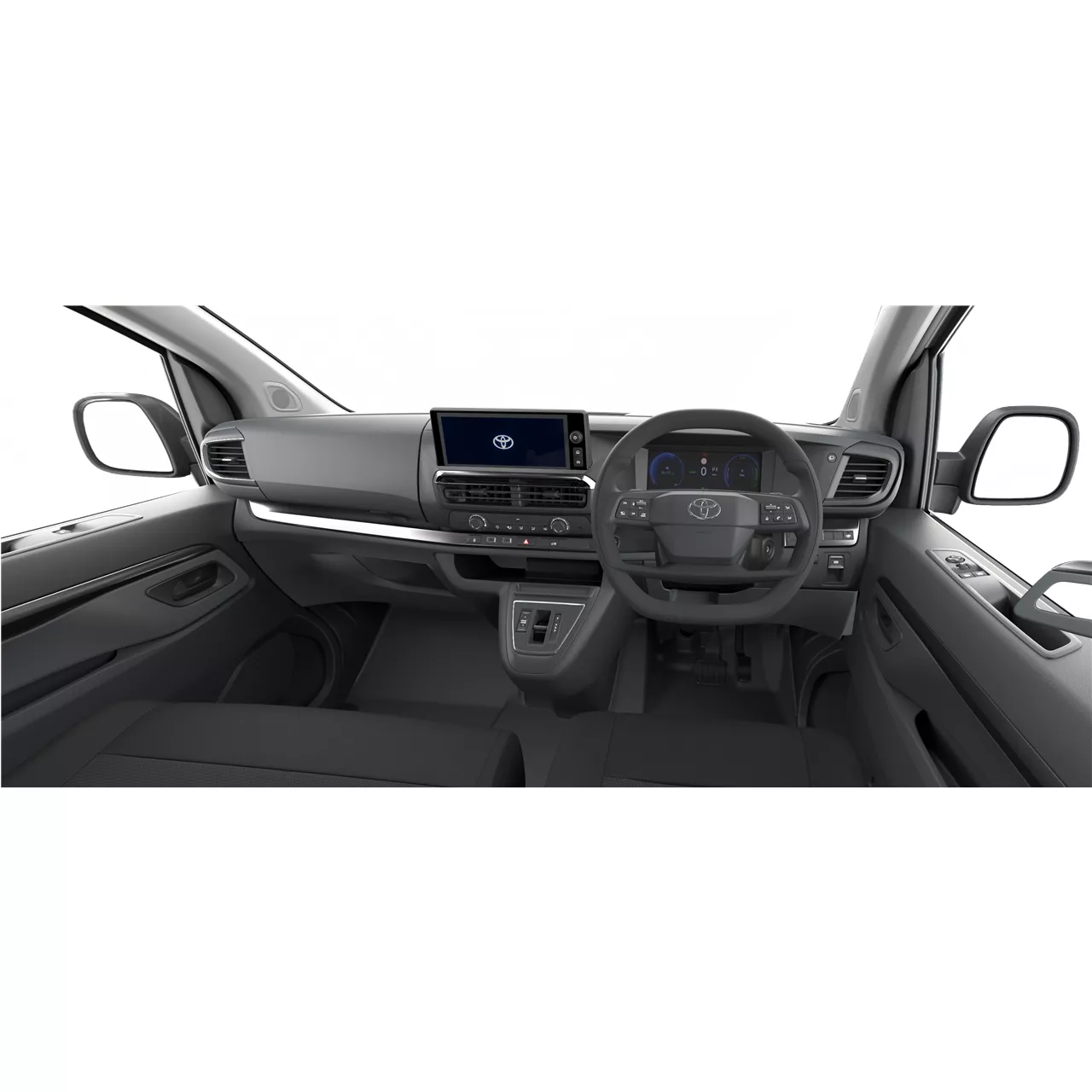

Interior

Multimedia

  • 4 speakers

  • USB Type-C connector

  • 10" Toyota Smart Connect with Smartphone integration including Apple CarPlay™

  • Toyota Smart Connect with Smartphone integration including Apple CarPlay™ Multimedia system

Styling

  • 3-spoke Urethane steering wheel

  • Black centre air vent surrounds

  • Black side air vent surrounds

  • Black front interior door handles

Comfort

  • 12v power outlet - Front

  • 2-seater front passenger bench

  • Adjustable lumbar support on driver seat

  • Audio switches on steering wheel

  • Colour multi-information display

  • Driver & front passenger personal lights

  • Drivers armrest

  • Front power windows

  • Auto up & down function on power windows

  • Front room light

  • Height-adjustable driver seat

  • Key starting system

  • Lane Departure Alert with switch on steering wheel

  • Manual air conditioning

  • Manually reclining driver seat

  • Manually sliding driver seat

  • Noise reduction layer on front windows

  • Power door lock

  • Cruise Control switch behind steering wheel

  • 10" screen for multi-information display

Storage

  • Cooler in upper glovebox

  • Front cup holders

  • Front door pockets

  • Front passenger under-bench storage

  • Open upper dashboard storage compartment

  • Plastic floor trim in driver cabin

Performance

  • Electronic parking brake

  • Stop & Start System

  • 11kW On Board Charger

Safety

  • Supplemental Restraint System - 2 airbags

  • Driver & passenger front airbag

Environmental Performance

  • CO2 Combined WLTP - Max (g/km)

    0 g/km

  • CO2 Combined WLTP (g/km)

    0.00 g/km

  • Electric Range – Combined WLTP (miles)

    132.35 miles

  • Electric Consumption (Wh/km)

    363 Wh/km

  • Power Consumption WLTP (kWh/100 miles)

    58.4 kWh/100 miles

  • Sound Level Drive By (dB(A))

    67.0 dB(A)

  • Euro Class

    AX

  • Total

    £27,914.83 (Excl. VAT)£39,878.33 (Excl. VAT)

Get a quote
Engine
Colour
Wheels
Upholstery
Charging at home
Skip to spin container
1
Proace - LCV Savings

Price shown includes LCV Saving††† and Government Grants for Electric vehicles where applicable. This pricing is for our base model excluding VAT, delivery costs, Government First Registration Fee, cost of number plate, and 12 months Government Vehicle Excise Duty (where appropriate). This price excludes any extras such as paint options and personalisation.

Images shown may not reflect entry level prices.
