Proace Max Chassis Cab

Single Cab Chassis

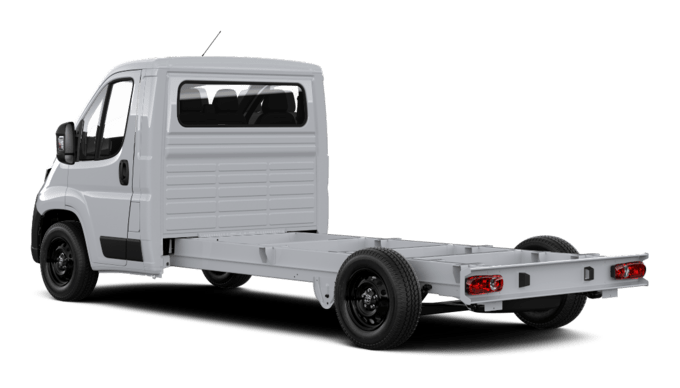

Proace Max - Chassis Cab - Single Cab Chassis
£40,995.00
  • Pre-Collision System with Pedestrian and Cyclist Detection
  • Lane Trace Assist (LTA)
  • Lane Departure Alert (LDA) switch on lower driver dashboard
262
28.2
Proace Max - Chassis Cab - Single Cab Chassis
Icy White (Solid Paint)

POST https://dxp-webcarconfig.toyota-europe.com/v1/compare-v2/gb/en

  • Exterior Length (mm)
    5943 mm
  • Exterior Width (mm)
    2050 mm
  • Exterior Height (mm)
    2254 mm
  • Front Tread (mm)
    1810 mm
  • Rear Tread (mm)
    1790 mm
  • Overhang Front (mm)
    948 mm
  • Overhang Rear (mm)
    960 mm
  • Wheelbase (mm)
    4035 mm

  • CO2 Combined - WLTP (g/km)
    262 g/km
  • Fuel Economy - Combined Max WLTP (mpg)
    28.2 mpg
  • Fuel Economy - Combined Min WLTP (mpg)
    24.3 mpg
  • Hydrocarbons, THC & Nitrogen Oxides, NOx (mg/km)
    48.7 mg/km
  • Nitrogen Oxides, NOx (mg/km)
    46.4 mg/km
  • Sound Level Drive By (dB(A))
    71.0 dB(A)
  • Euro Class
    Euro 6 eb
  • Carbon Monoxide, CO (mg/km)
    31 mg/km
  • Displacement (cc)
    2184 cc
  • Bore x Stroke (mm x mm)
    83.8 x 99 mm
  • Compression Ratio
    15.5:1
  • Number Of Cylinders
    4 cylinder, in line
  • Maximum Output (DIN hp)
    140 DIN hp
  • Maximum Output (kW@rpm)
    103 kW@rpm
  • Maximum Torque (Nm@rpm)
    350 Nm
  • Transmission Type
    Manual
  • Drive
    Fwd
  • Maximum Speed (mph)
    96 mph
  • Suspension Front
    Independent, MacPherson type (wishbones, coil springs, telescopic shock absorbers & anti-roll bar)
  • Suspension Rear
    Rigid tubular axle(parabolic longitudinal leaf springs,telesc. shock absorbers,flexible side buffers
  • Brakes Front
    Disc
  • Brakes Rear
    Disc
  • Gross Train Weight - Total (kg)
    6500 kg
  • Gross Vehicle Weight (kg)
    3500 kg
  • Kerb Weight / Unladen Weight (kg)
    1825-1992 kg
  • Maximum Trailer Weight - Braked (kg)
    3000 kg
  • Maximum Trailer Weight - Unbraked (kg)
    750 kg
  • Gross Vehicle Weight - Front (kg)
    2100 kg
  • Gross Vehicle Weight - Rear (kg)
    2400 kg
  • Number of Seats
    3 seats

Interior
  • 4 speakers
  • 7" Pro Touch® multimedia system
  • Bluetooth® Connectivity
  • Digital Audio Broadcast (DAB)+
  • Radio
Exterior
  • Electric converter box
Interior
  • Overhead storage
  • Without
  • Front cup holders (4)
  • Closed single cabin
Exterior
  • 16" Steel wheels
  • Black small centre caps
  • Full size Temporary spare wheel
Exterior
  • Auto headlights
  • Power-adjustable door mirrors
  • Electric heated door mirrors
  • Manually retractable door mirrors
  • Standard arm door mirrors
Interior
  • Audio switches on steering wheel
  • Boot light
  • Digital tachometer
  • Drivers armrest
  • Height-adjustable driver seat
  • Lane Departure Alert (LDA) switch on lower driver dashboard
  • Manual air conditioning
  • Manual day/night rear-view mirror
  • Manually adjustable lumbar support on driver seat
  • Monochrome multi-information display
  • Speedometer (mph)
  • Telephone switches on steering wheel
  • Without
  • 3.5" multi-information screen
  • Deadlock on rear doors
  • Driver & front passenger fold-up table
Interior
  • USB-C Cable
  • Fire Extinguisher
Exterior
  • Anti-tamper alarm
  • Automatic High Beam (AHB)
  • Cruise Control
  • Daytime running lights
  • Driver Attention Alert
  • eCall emergency call system
  • Glass-breaking alarm sensors
  • Hill-start Assist Control (HAC)
  • Intrusion Alarm
  • Lane Departure Alert (LDA) with Steering Control
  • Lane Trace Assist (LTA)
  • Motion sensor alarm
  • Pre-Collision System with Pedestrian and Cyclist Detection
  • Projector halogen headlights
  • Rear combination lights
  • Spare wheel carrier (under body)
  • Tyre Pressure Warning System (TPWS)
  • Vehicle Stability Control Plus (VSC+)
  • Road Sign Assist (RSA)
  • Intelligent Speed Assist
  • Pre-disposition for breathalyser engine lock
  • Safety Data Recording
Interior
  • Front seat belt reminder
  • Handbrake
  • Rear seat belt reminder
  • Driver & passenger front airbag
Exterior
  • Black protection moulding on side doors
Exterior
  • Black front bumper
  • Black painted upper front grill
  • Roof antenna
  • Privacy Glass - 30% (Smoke tint)
Exterior
  • Rubber Floor Mats

Standard equipment

Build

From intelligent safety systems to intuitive interior features, every Toyota leaves the factory with a wealth of essential equipment as standard. Find out more about the standard equipment available on your Toyota vehicle below:

Rubber Floor Mats

POST https://dxp-webcarconfig.toyota-europe.com/v1/equipment-standard/gb/en?modelId=ea59a13e-d471-4e34-9068-c149abd01723&carId=a99385a4-9e03-4a64-8fbe-0ad0ba85bac1&carColourId=6db1c2bf-4b7f-47e4-980f-7c5996733b36

Optional equipment

Build

Whatever your lifestyle, Toyota provides a wide range of optional equipment to help you get the most from your car. From styling accessories and smart technology to practical features designed for all driving conditions, you're geared up for safe and comfortable journey. The complete list of optional equipment that’s been designed and built specifically for your Toyota vehicle, can be found below:

Flanged Towing Hitch with Towball with 13 Pin Wiring
£909.00
Smart Tacho 1
Smart Tacho
£850.00
Safety Hammer - Life Hammer Plus
£19.00
